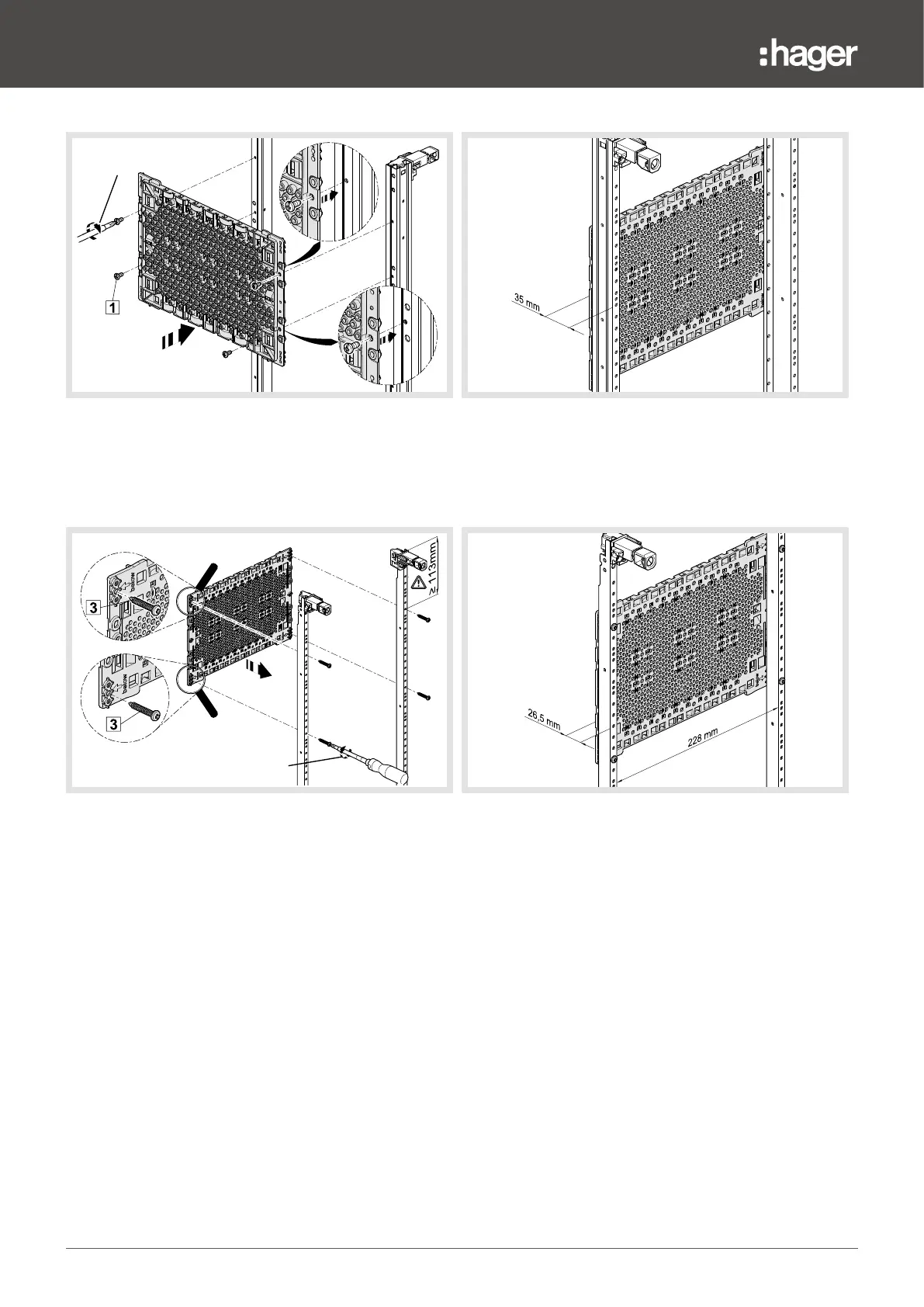

univers Z internal system
M
max
= 2Nm
Installation of the UM00M0 plastic plate on the rear of the univers Z mounting rail
On the UMx1UK panel, this moves the rear edge of the mounting plate 26.5 mm behind the mounting rail.
The resulting usable width for installing devices on the mounting plate is 228 mm (width between the mount-
ing rails).
M
max
= 1,2Nm
Installation of the UM00M0 plastic plate on the rear of the univers FW mounting rail
The mounting plate has various integrated functions:
- Installation of cable ties
- Installation of FZ913 cable holders
- Installation of VZ02MM modem holder
- Quick fixing of VZ340 elastic bands
- Depth adjustment of the mounting rails
