hager FWB Series User Manual

We reserve the right to make changes of a technical nature 57
Doors

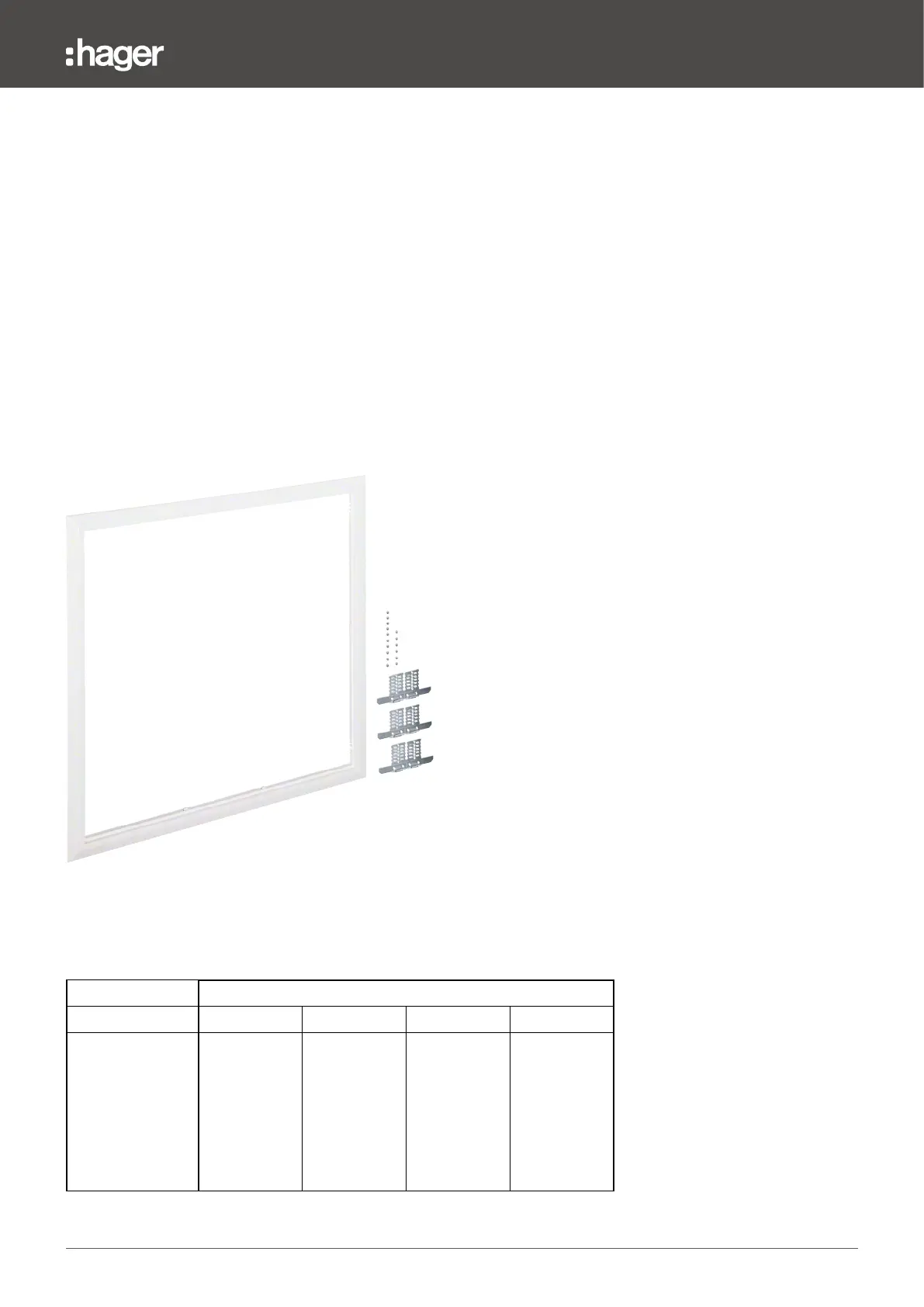

5.5 Flush-mounting frame
5.5.1 properties
As described above, FWB cabinets can be installed flush and their appearance improved with a flush-mounting
frame. Flush-mounting frames can make up for plaster unevenness between 10 and 58 mm (see image below).
The frames have a depth of 13 mm (protrusion from the wall) and can be ordered with reference numbers
FZ0xxB and FZxxB.
The order number coding for the flush-mounting frame comprises:
- The univers accessory code: FZ...
- The enclosure dimensions (height): FZ014B or FZ42B
- The enclosure dimensions (width): FZ014B or FZ42B
- The frame labelling: FZ42B
Example: FZ13B frame without door for FWB53…
5.5.2 Flush-mounting frame references overview
Cabinet width
Cabinet height 1 (300 mm) 2 (550 mm) 3 (750 mm) 4 (1050 mm)
3 (500 mm) FZ011B FZ012B FZ013B FZ014B
4 (650 mm) FZ021B FZ022B FZ023B FZ024B
5 (800 mm) FZ11B FZ12B FZ13B FZ14B
6 (950 mm) FZ21B FZ22B FZ23B FZ24B
7 (1100 mm) FZ31B FZ32B FZ33B FZ34B
8 (1250 mm) FZ41B - - -
