100 We reserve the right to make changes of a technical nature
Internal system accessories

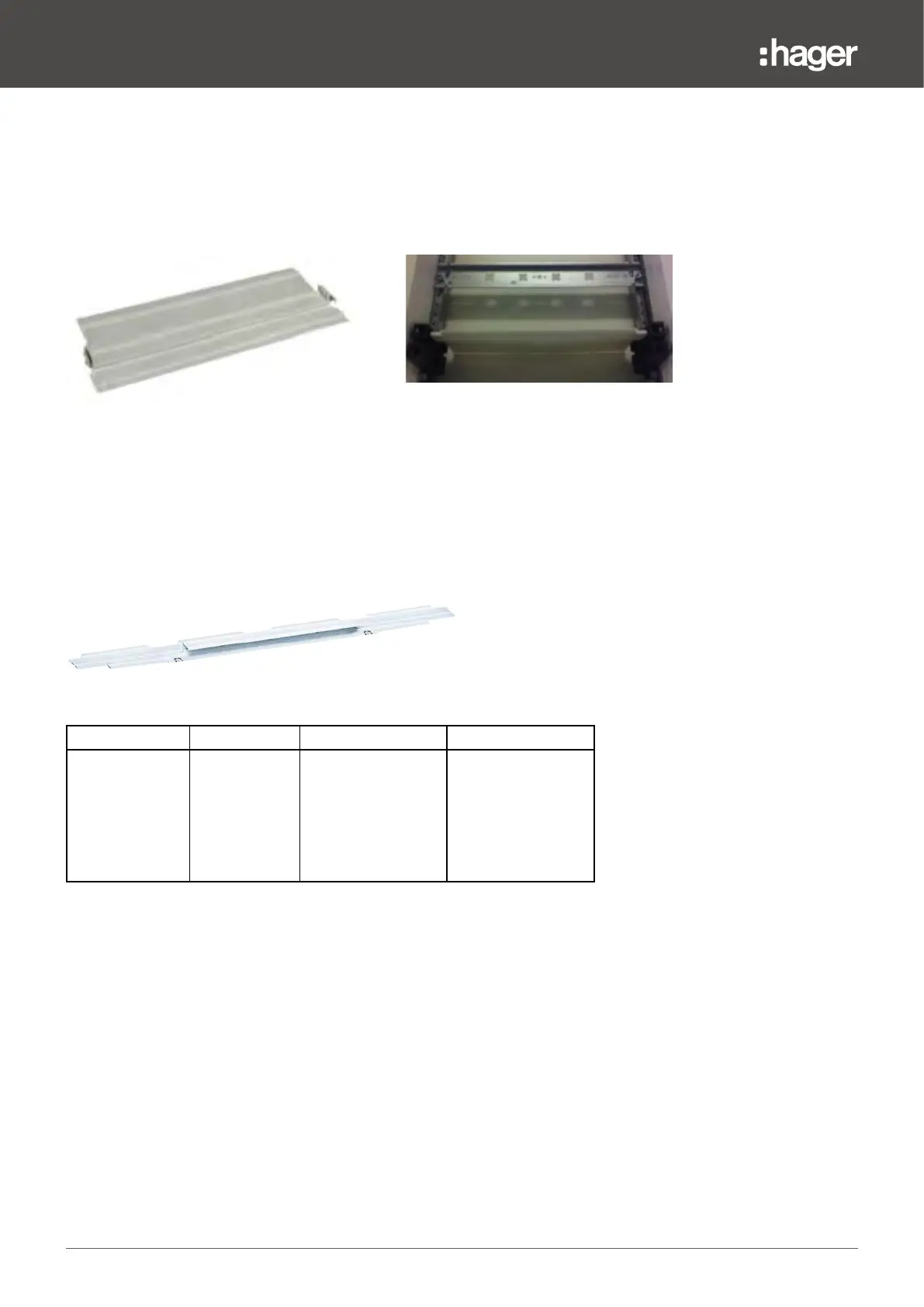

UZ01F1 horizontal separation UZ01F1 installation
ZZ10H: Locking into UZ04A1 twin towers
This 250 mm wide partition plate is locked into the UZ04A1 twin towers. This plate is also an accessory for
the FWU flush distribution board. The bottom of the plate has to be cut o for installation in the FWU board.
Locking into UZ04A1
twin towers
ZZ10H horizontal partition plate ZZ10H installation
8.2.3.2 UZx0Fx vertical partitions
Two panels next to each other can also be vertically separated.
The UZx0F1 or UZx0F2 are required for this purpose. UZx0F1 partitions are screwed onto the mounting rail
from the front. UZx0F2 partitions are locked in and provide additional functionalities. Both partitions only fit
on univers Z mounting rails.
UZ40F2 vertical separation
Cabinet height Reference Reference Length (mm)
3 (500 mm) UZ30F1 UZ30F2 450
4 (650 mm) UZ40F1 UZ40F2 600
5 (800 mm) UZ50F1 UZ50F2 750
6 (950 mm) UZ60F1 UZ60F2 900
7 (1100 mm) UZ70F1 UZ70F2 1050
UZx0F1 partitions are installed and screwed on to the mounting rails from the front.
Their advantage is that they can be inserted or removed subsequently between 2 installed panels without
having to remove one of the panel.
