48 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
4.2.4.20 FWQxxP1
Reference
FWQ31P1
FWQ32P1
FWQ33P1
FWQ34P1
FWQ41P1
FWQ42P1
FWQ43P1
FWQ44P1
FWQ51P1
FWQ52P1
FWQ53P1
FWQ54P1
FWQ61P1
FWQ62P1

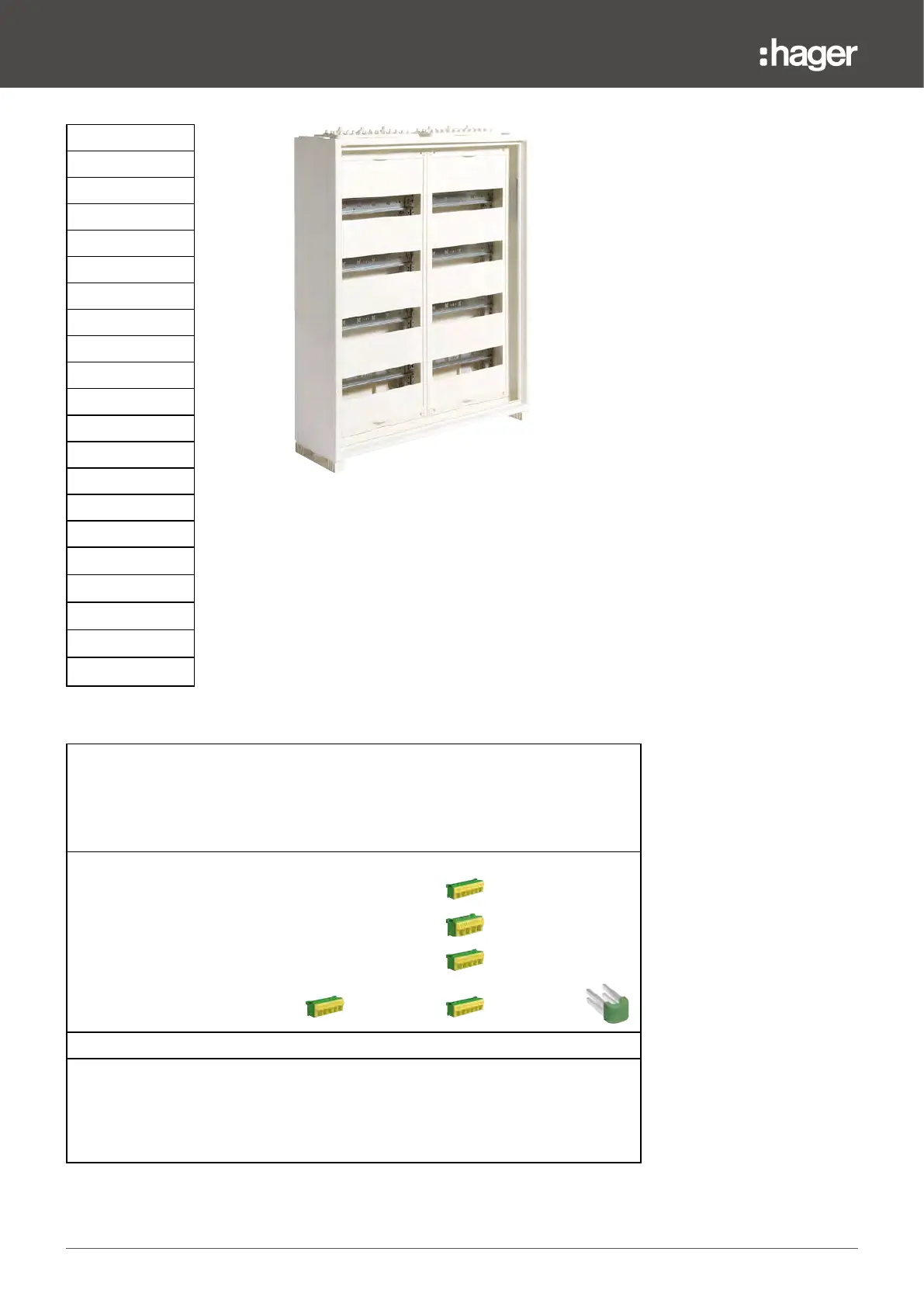

Example: FWQ42P1
FWQ63P1
FWQ64P1
FWQ71P1
FWQ72P1
FWQ73P1
FWQ74P1
Protection class IP30 (max. IP30 with door), impact protection IK05 (max. IK09 with door)
Internal system:
Distribution panel(s):
- Covers 250 mm width with 12 module slot width. With 2 covers above each other for
size 7
- Distance between the DIN rails: 125 mm
QuickConnect configuration (top)
Height 3: 1 x KN26E
Height 4: 2 x KN18E
Height 5: 2 x KN22E
Height 6, 7: 1 x KN22E 1 x KN26E + KN99E
Without door, without blue seal
Included in scope of delivery:
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWQ – installation instructions
- QuickConnect installation instructions
