We reserve the right to make changes of a technical nature 99
Internal system accessories
8.2.3 Partitions
The distribution board panels can be divided vertically and horizontally.

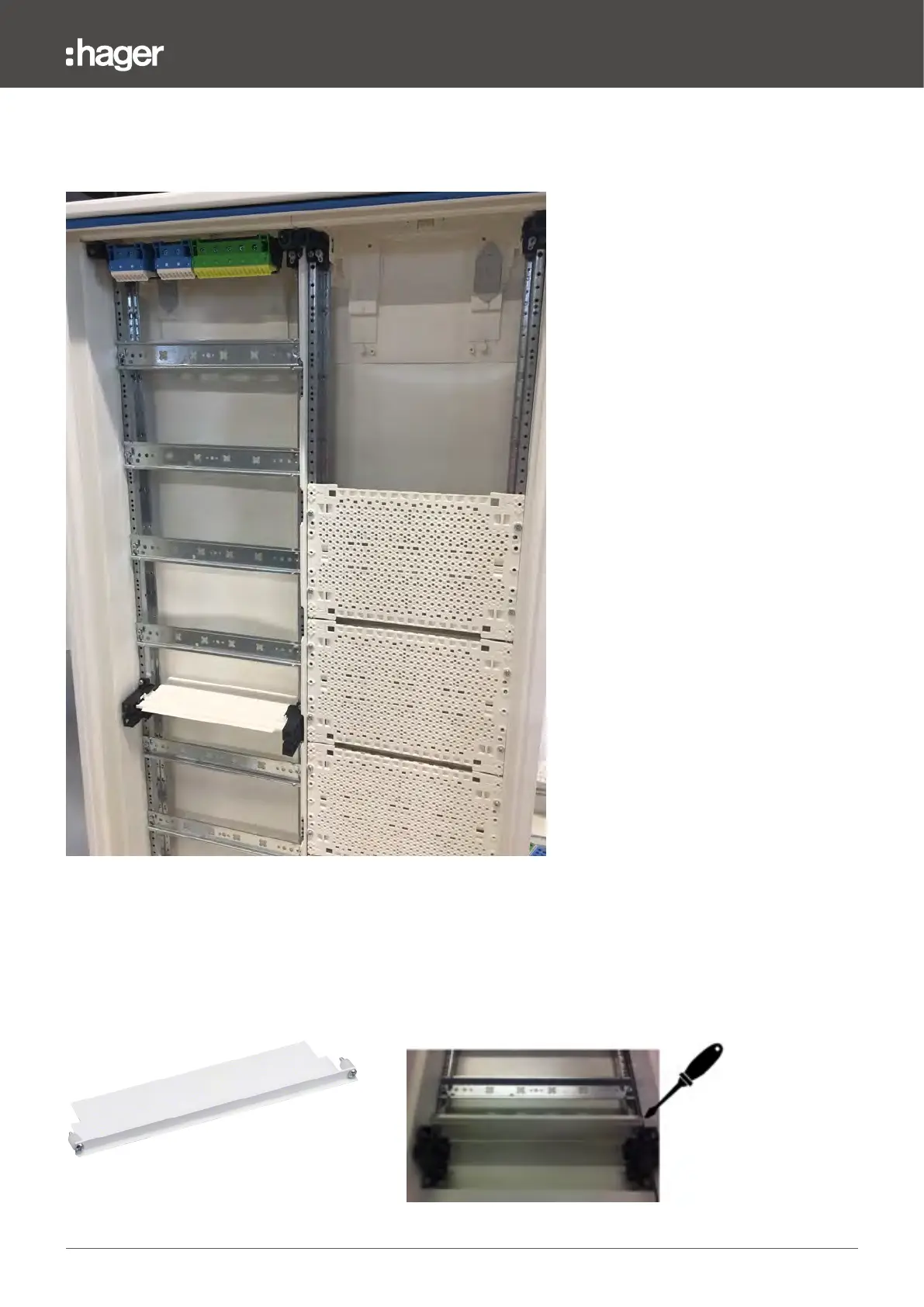

Cabinet with installed partitions
8.2.3.1 Horizontal partitions
A horizontal separation within a 250 mm wide panel (division) can be created with the UZ01F1 and ZZ10H
inserts.
UZ01F1: Screw connection on the mounting rails
This 250 mm wide separation is screwed directly onto the mounting rails.
Direct screw connection
on the mounting rails
