We reserve the right to make changes of a technical nature 71
univers Z internal system

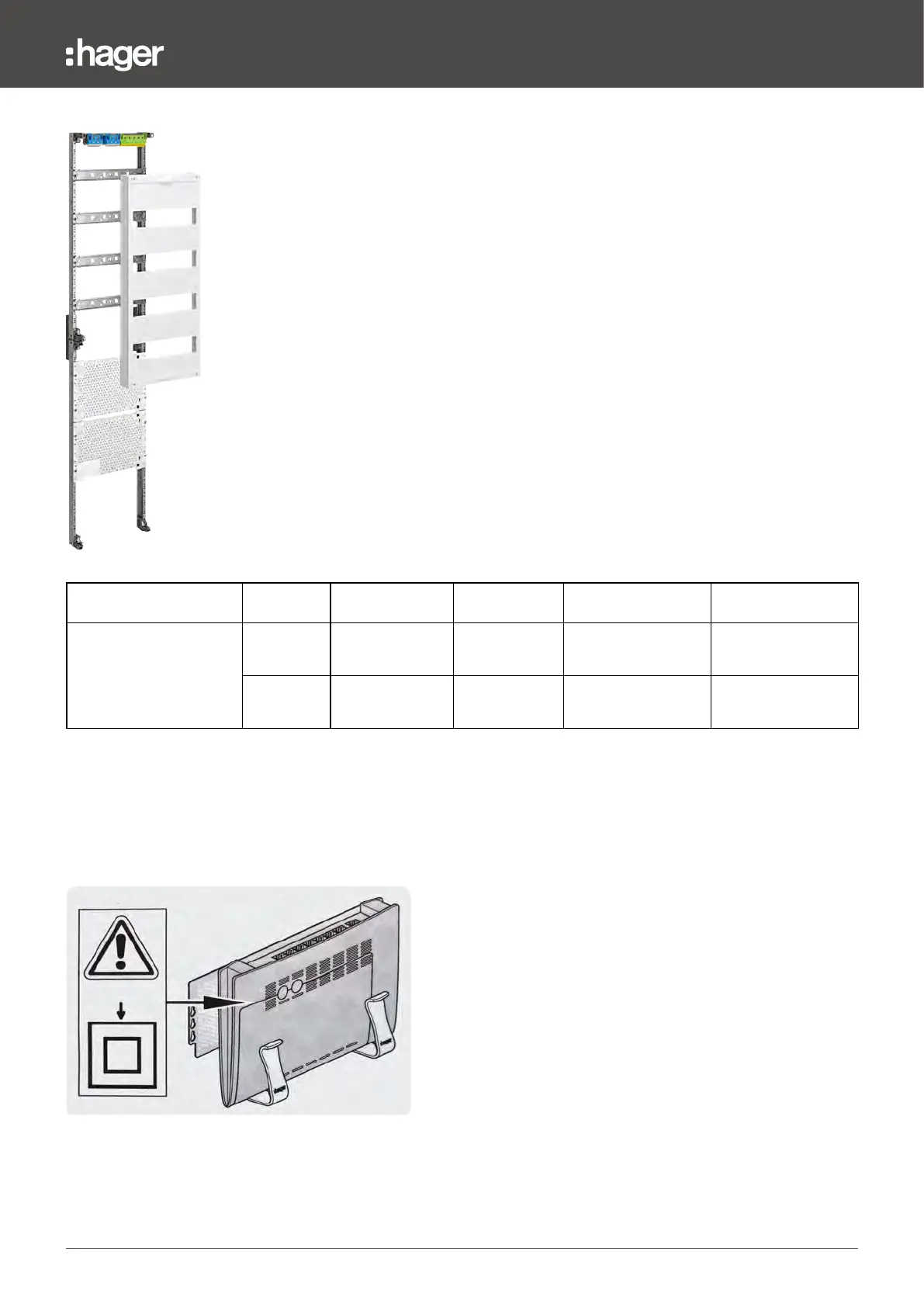

Example: UM81M4
Panels Height Width 1 (250mm) PEN holder QC clamp
Mounting plate
UM00M0
4 x DIN rail at the top,
Multimedia field with
plastic mounting plates at
the bottom
7 (1050 mm) UM71M4 UZ00K1 2xKN10N + KN22E 2 x
UN71B4 UZ00K1 KN22E 2 x
8 (1200 mm) UM81M4 UZ00K1 2xKN10N + KN22E 2 x
UN81B4 UZ00K1 KN22E 2 x
7.2.4 Protection class by Multimedia panels and Hybrid panels
Hybrid kits in the lower section without a cover or multimedia kits do not have a protection class.
When using multimedia kits (without covers), all devices and wiring must be equipped with protective insulation
or double insulation. The following sticker is sticked on the mounting plate to point this out:
Sticker "protective insulation"
This is the only way to guarantee protection class II. Only the distributor kit (with cover) is equipped with
double insulation ex-works.
Protection class II can also be obtained by mounting UZ01A2 tower overparts and covers on top. However,
this reduces the construction height for devices between the mounting plate and the cover.
