Information about the FWB, FWQ distribution board range

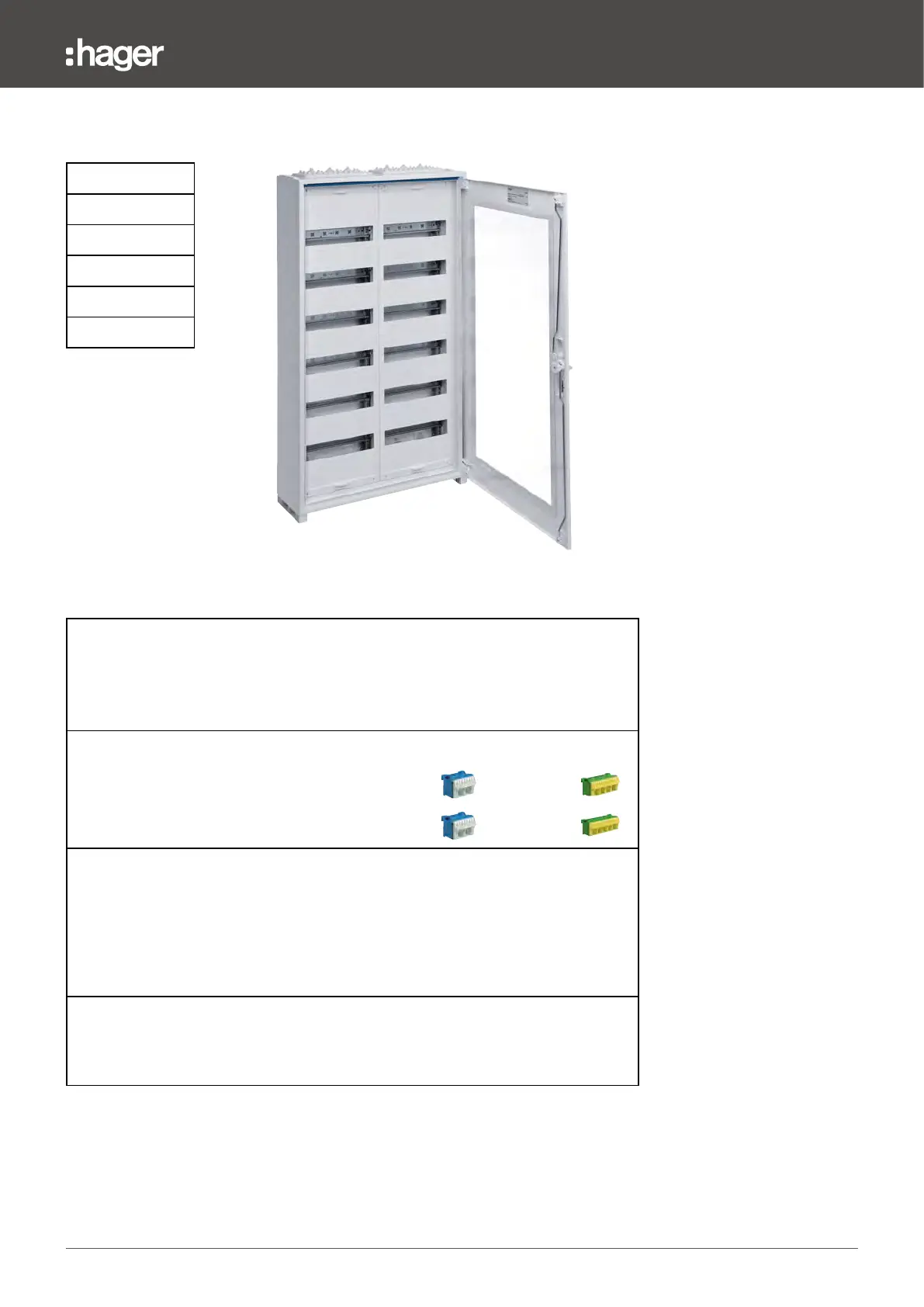

4.2.4.6 FWBxxGS
Reference
FWB32GS
FWB42GS
FWB52GS
FWB62GS
FWB72GS
Example: FWB62GS
Protection class IP44, impact protection IK07
Internal system:
Distribution panel(s):
- Covers 250 mm width with 12 module slot width. With 2 covers above each other for
size 7
- Distance between the DIN rails: 125mm
QuickConnect connect configuration (at the top of each distribution panel)
Height 3: 2 x KN10N
+ KN18E
Height 4, 5, 6 and 7: 2 x KN10N + KN22E
Door:
- Plain
- Steel frame
- Transparent plastic plate
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 – labelling strip with type label
- FWB – installation instructions
- QuickConnect installation instructions
