Information about the FWB, FWQ distribution board range
4.2.4 Cabinet details
4.2.4.1 FWBxx
Reference
FWB31
FWB32
FWB33
FWB34
FWB41
FWB42
FWB43
FWB44
FWB51

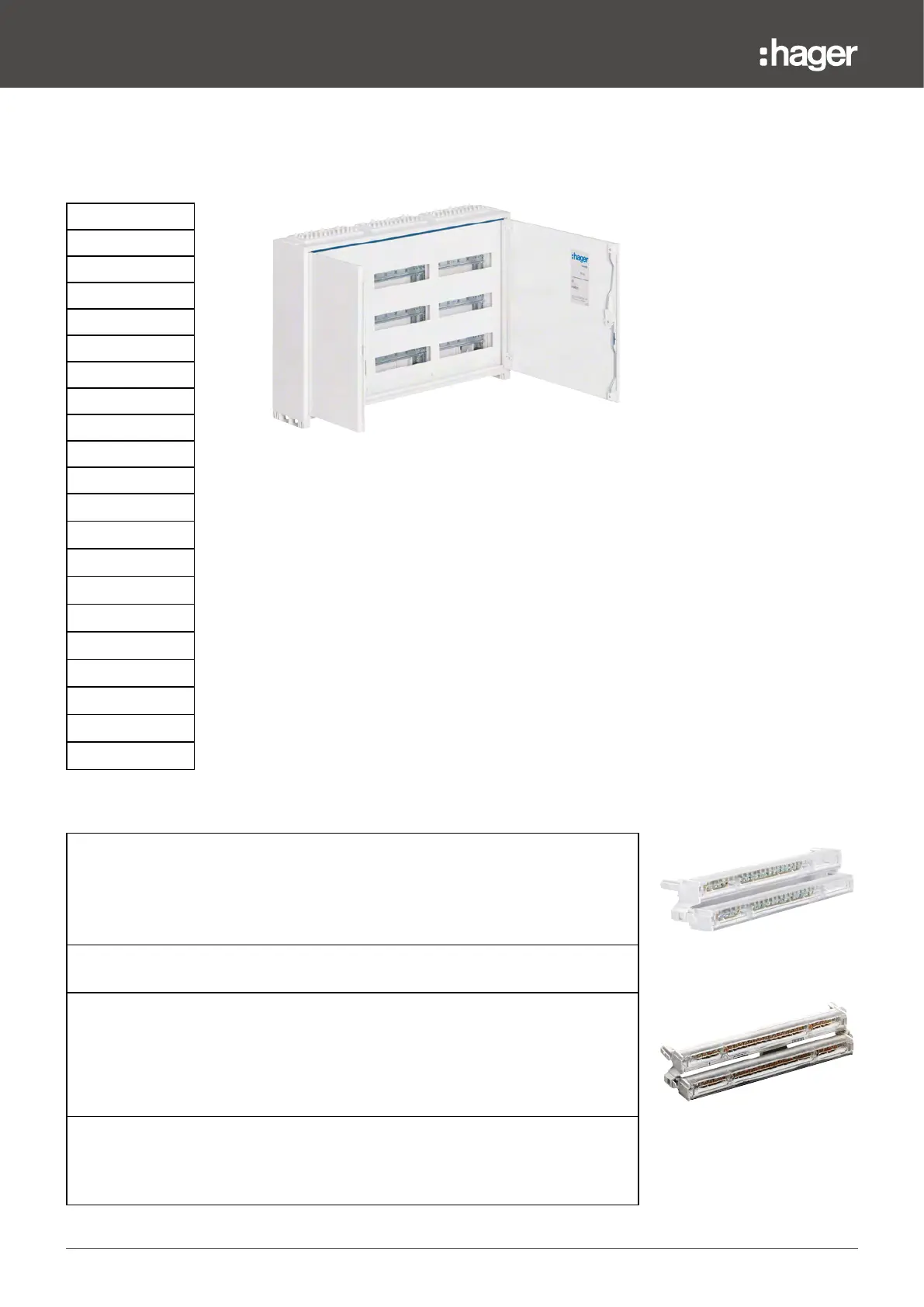

Example: FWB33
FWB52
FWB53
FWB54
FWB61
FWB62
FWB63
FWB64
FWB71
FWB72
FWB73
FWB74
Protection class IP44, impact protection IK09
Internal system:
Distribution panel(s):
- Cover 250 mm width with 12 module slot width. With 2 covers above each other for
size 7
- Distance between the DIN rails: 125mm
- Sizes 3, 4: per panel, with brass terminals KM22A
- Sizes 5, 6, 7: per panel, with brass terminals KM25A
Example: KM22A
Door:
- plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWB – installation instructions
Example: KM25A
