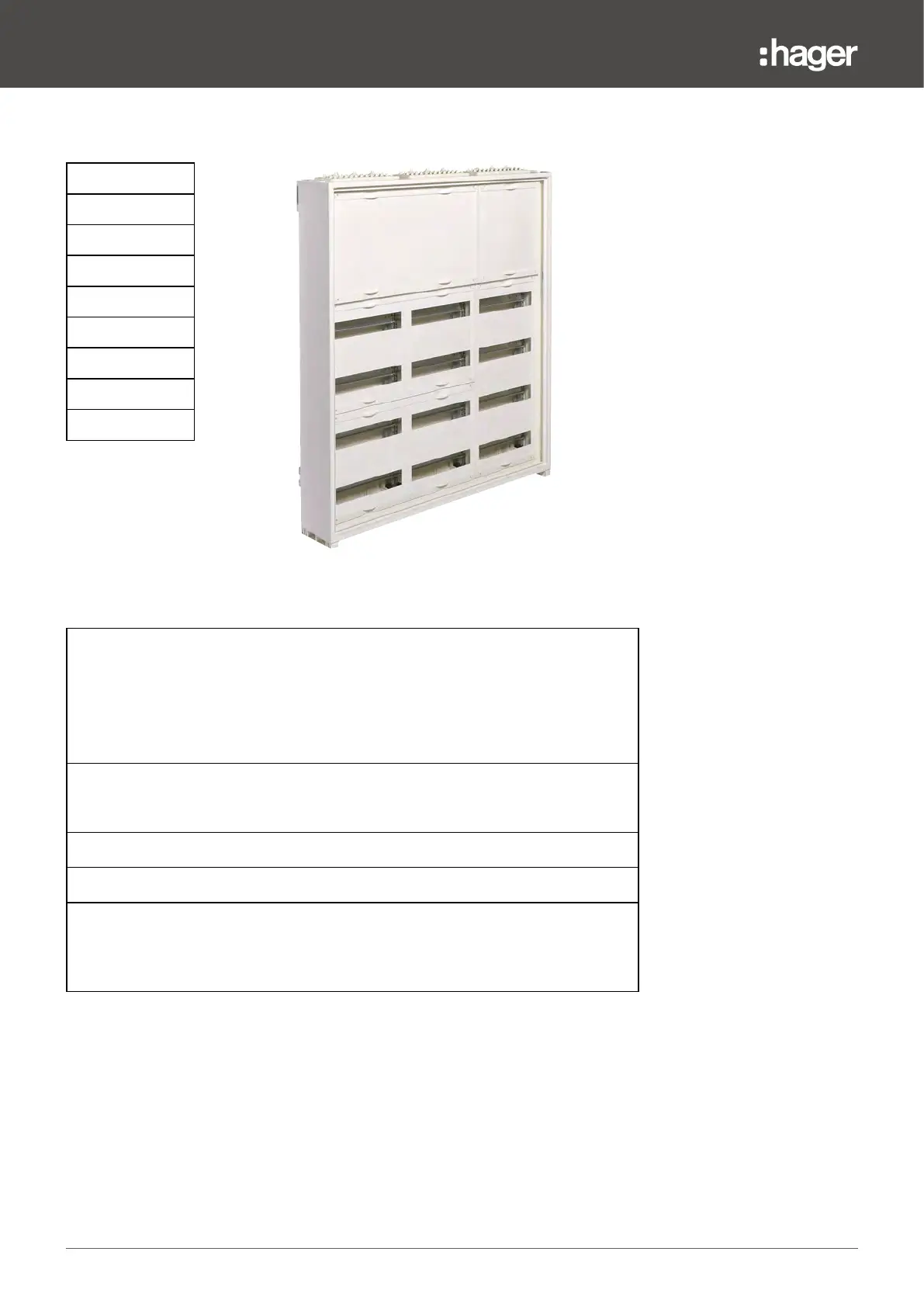

Information about the FWB, FWQ distribution board range

4.2.4.18 FWQxxN1

Reference

FWQ52N1

FWQ53N1

FWQ62N1

FWQ63N1

FWQ64N1

FWQ72N1

FWQ73N1

FWQ74N1

Example: FWQ63N1

Protection class IP30 (max. IP30 with door), impact protection IK05 (max. IK09 with door)

Internal system:

2 top rows:

- For DIN rail terminals

- Plain covers, 15 mm depth

- Insulated DIN rails, 15 mm depth

- Distance between the DIN rails: 150 mm

Distribution panel(s):

- Covers with 12 module slot width. Cover conﬁguration, see FWBxxN, page 39

- Distance between the DIN rails: 150 mm

Without QuickConnect terminals and without QuickConnect carrier

Without door, without blue seal

Included in scope of delivery:

- DINA4 – labelling strip with type label

- DINA4 – circuit table

- FWQ – installation instructions
