We reserve the right to make changes of a technical nature 75
univers Z internal system

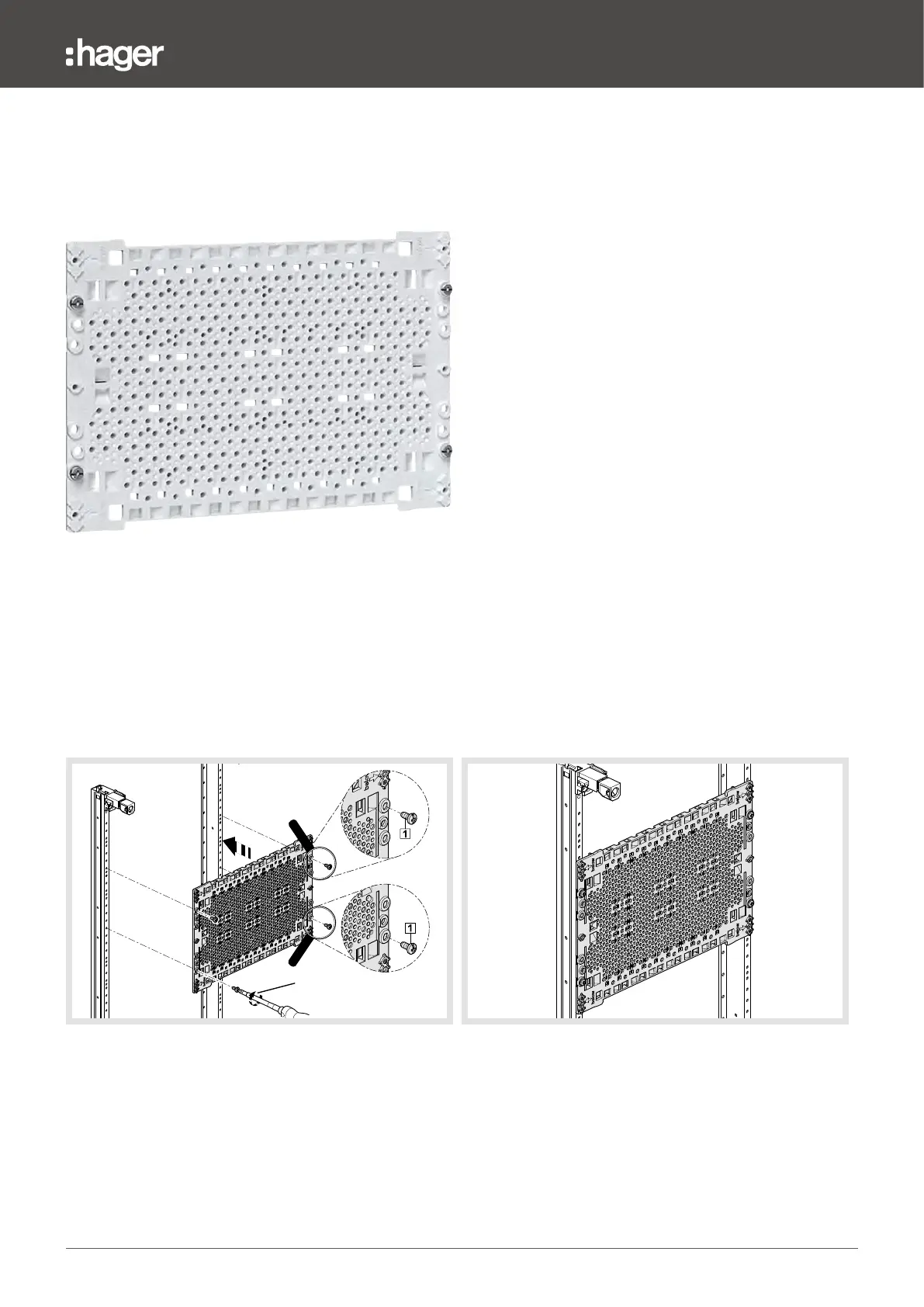

7.3.4 UM00M0 plastic mounting plate
The new UM00M0 plastic mounting plate is 250 mm wide and 175 mm high. The plate can be screwed onto
the vertical univers Z (UN0xA) and univers FW (UN0xFN) mounting rails and is installed in the new UMx1UK
multimedia panels as standard.
Example: UM00M0
Installation
The mounting plate comes with 10 short and 10 long plastic screws for use in plastic materials as well as
4 x univers 4.2 x 9.5 mm screws for screwing onto the mounting rail. The panel can be installed with wall and
flush distribution boards, always above and below the panels.
In the FWB multimedia cabinet, this moves the mounting plate 35 mm behind the mounting rail.
The resulting usable width for installing devices on the mounting plate is 212 mm (width between the
mounting rails).
M
max
= 2Nm
Installation of the UM00M0 plastic plate on the front of the univers Z mounting rail
