hager FWB Series User Manual

62 We reserve the right to make changes of a technical nature
Enclosure installation
6.3 Wall installation
6.3.1 Wall installation measurements / dimensions

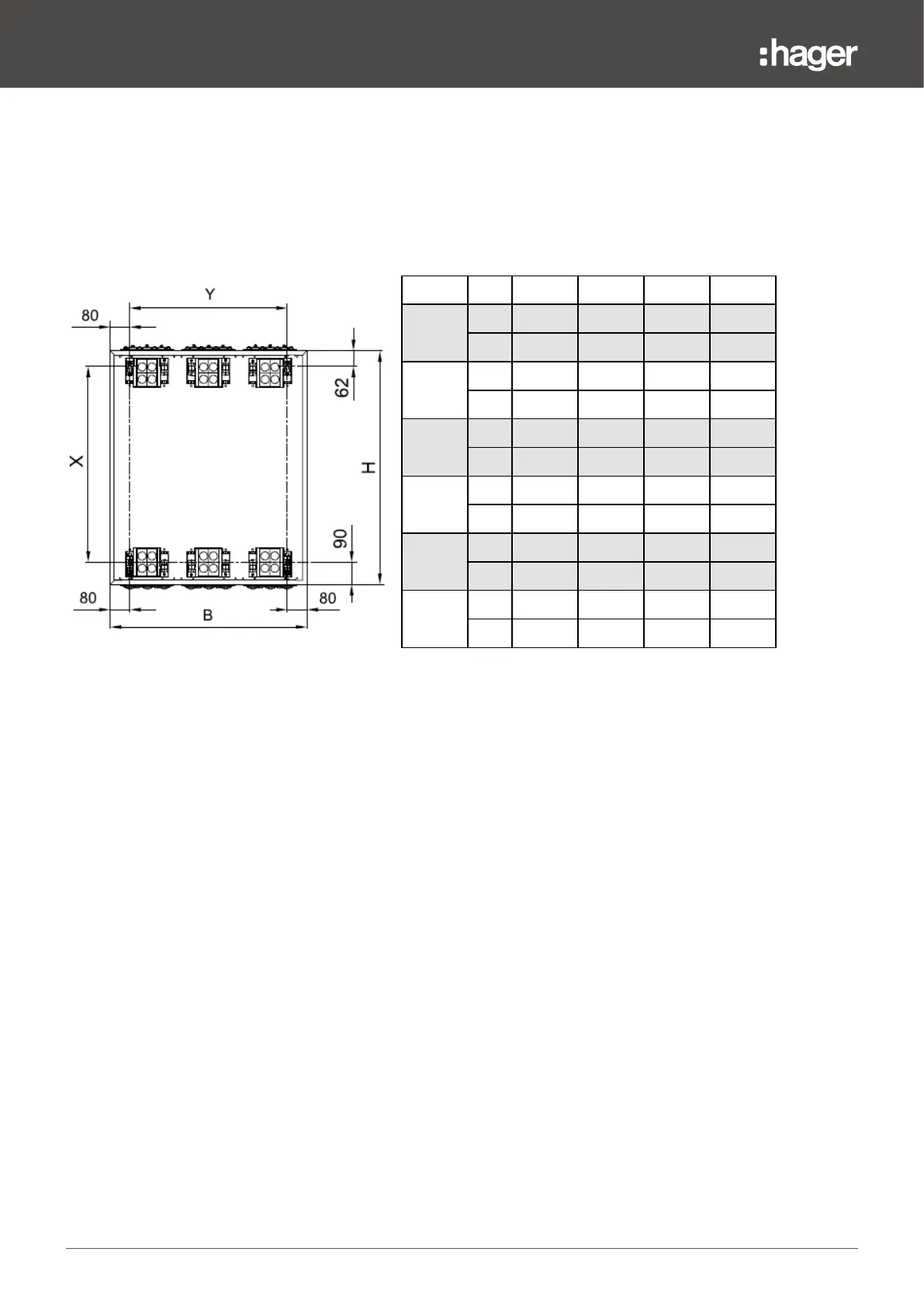

The wall installation measurements for the FWB for installation on the wall are specified in installation
instructions 6LE001243, which are supplied with the cabinet:
H B 300 550 800 1050
500
X 348 3448 348 348
Y 140 390 640 890
650
X 498 498 498 498
Y 140 390 640 890
800
X 648 648 648 648
Y 140 390 640 890
950
X 798 798 798 798
Y 140 390 640 890
1100
X 948 948 948 948
Y 140 390 640 890
1250
X 1098 - - -
Y 140 - - -
