hager FWB Series User Manual

54 We reserve the right to make changes of a technical nature

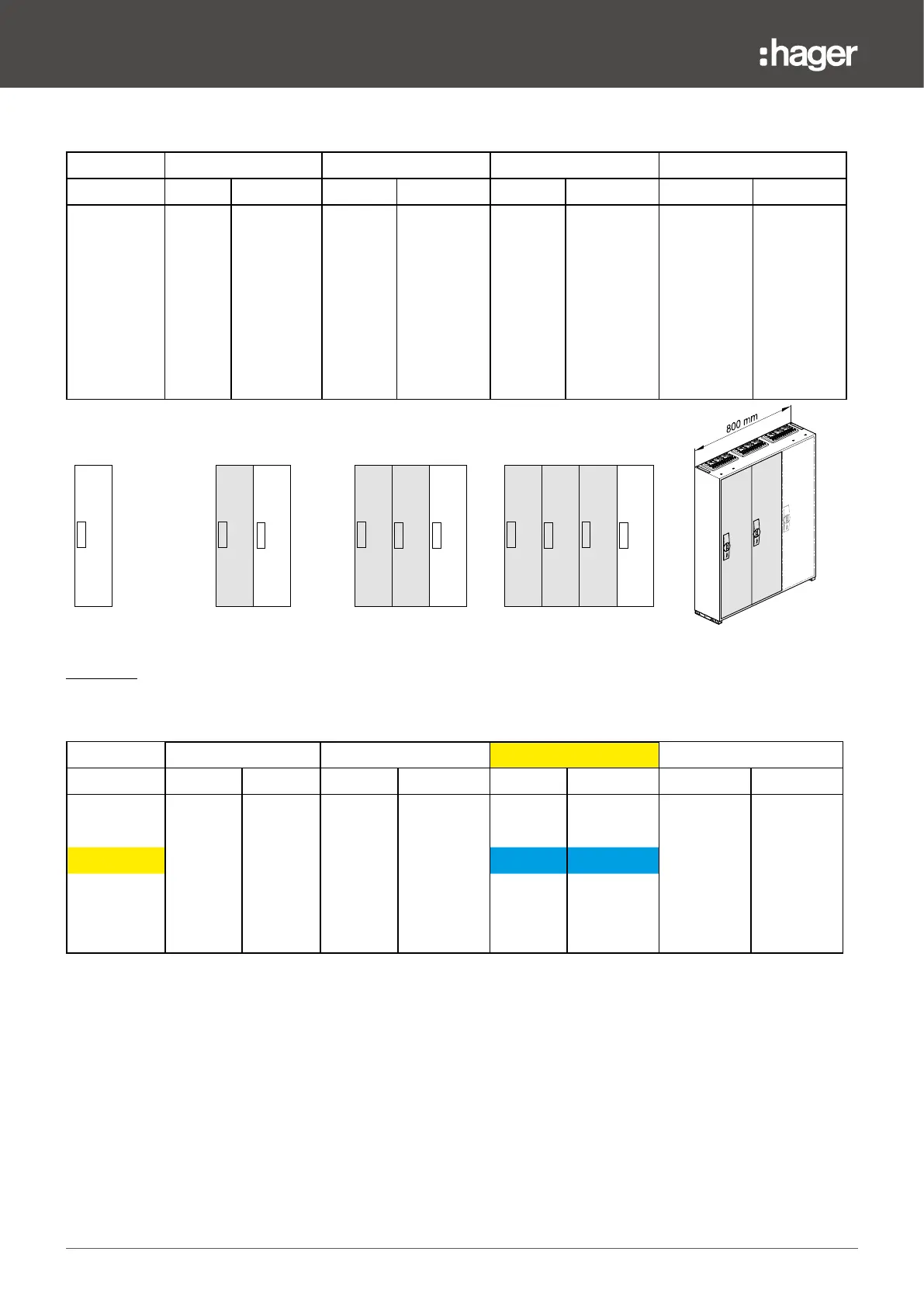

Doors
Special plain door (right combination only) for narrow passage, max. IP44, univers door plate
Width 1 (300 mm) Width 2 (550 mm) Width 3 (800 mm) Width 4 (1050 mm)
Height Left door Right door Left door Right door Left door Right door Left door Right door
3 (500 mm) - FZ001N - FZ001N - - - -
4 (650 mm) - FZ005N - FZ005N - - - -
5 (800 mm) - FZ009N - FZ009N - - - -
6 (950 mm) - FZ013N -
FZ013N +
FZ191N
-
FZ013N +
FZ191N (2 x)
-
FZ013N +
FZ191N (3 x)
7 (1100 mm) - FZ021N -
FZ021N +
FZ192N
-
FZ021N +
FZ192N (2 x)
-
FZ021N +
FZ192N (3 x)
8 (1250 mm) - FZ026N - - - - - -
Example: To retrofit cabinet FWB53K5 (height 5 and width 3) with transparent doors, the door references
FZ143N and FZ106N have to be ordered according to the table.
Transparent door, max. IP44, univers door plate
Width 1 (300mm) Width 2 (550mm) Width 3 (800mm)Width 3 (800mm) Width 4 (1050 mm)
Height Left door Right door Left door Right door Left door Right door Left door Right door
3 (500mm) - FZ105N - FZ107N FZ140N FZ107N FZ150N FZ107N
4 (650mm) - FZ108N - FZ104N FZ141N FZ104N FZ151N FZ104N
5 (800mm)5 (800mm) - FZ142N - FZ106N FZ143N FZ106N FZ144N FZ106N
6 (950mm) - FZ145N - FZ110N FZ146N FZ110N FZ147N FZ110N
7 (1100mm) - FZ148N - FZ102N FZ149N FZ102N FZ152N FZ102N
8 (1250mm) - FZ153N - - - - - -
