Hammer K2 M - Prepare to Change Tooling

11
K2 M - Part 2/2
Adjustments and tool changes
1.3.2 Prepare to change tooling
1
2
4
3

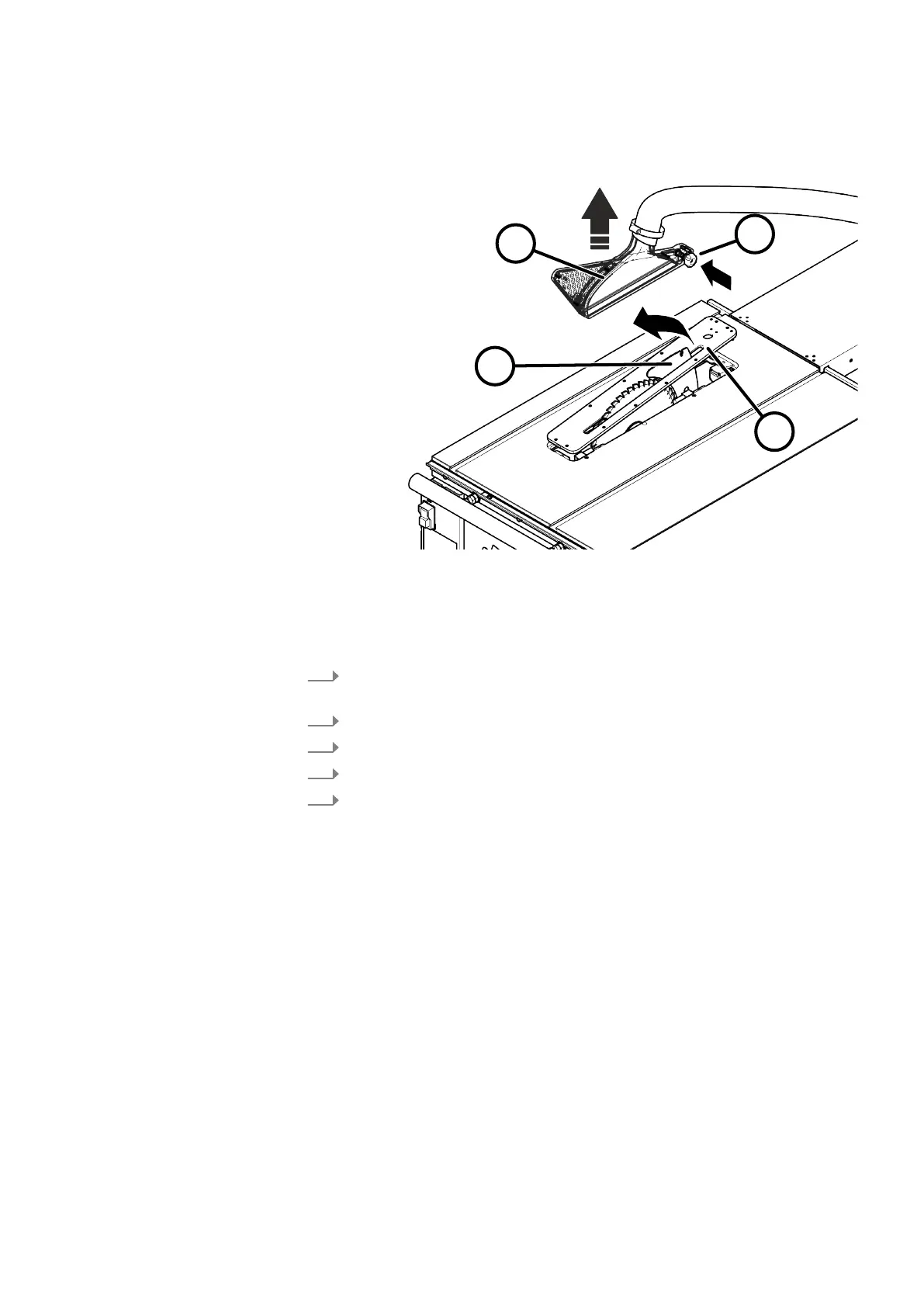

Fig. 7: Prepare to change tooling
1 Thumb screws
2 Saw guard
3 Riving knife
4 Insert board
1.
Position the saw aggregate in the 90° position (cutting angle 0°) and move
t
o the uppermost position.
2.
Switch off the machine and secure it against being switched on again.
3.
Loosen the thumb nut and push it in.
4.
Pull the protective hood upwards off of the riving knife.
5.
Remove insert board.
🡆
Pull upwards over the riving knife.
