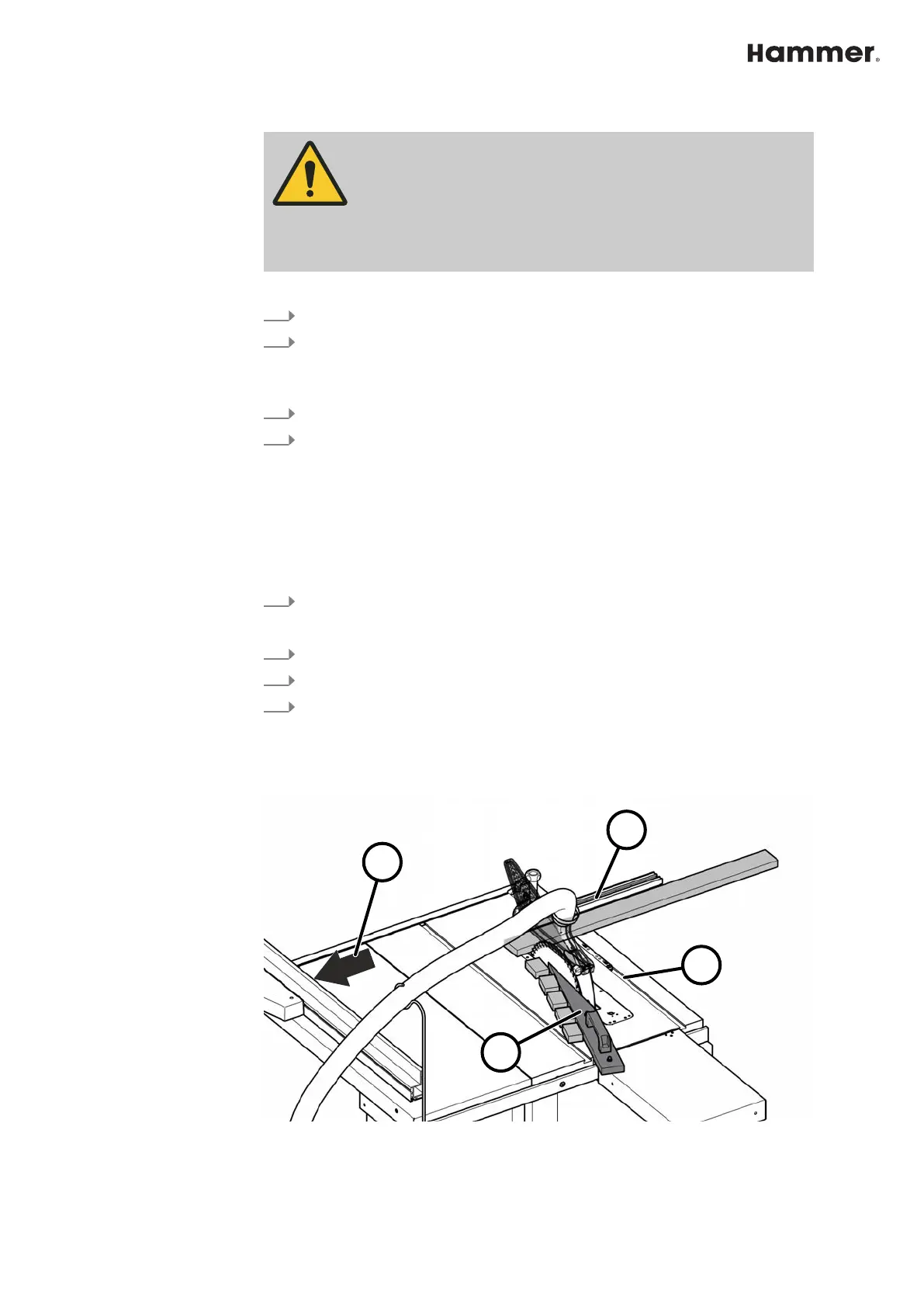

Hammer K2 M - Cutting Short, Narrower Workpieces

30
Use
WARNING
Rotating saw blade
S
evere injury caused by contact with a rotating saw blade.
− Never place your hands on the workpiece in the danger zone.
− Push the workpiece past the saw blade with the push stick.
1.
Take note of general procedures for permitted working methods.
2.
If required and only when cutting strips:
Chan
ge the fence plate (guide) on the rip fence over on to the narrow guide
edge.
3.
Adjust the rip fence to the desired position.
4.
Set the fence plate (guide):
Push the f
ence plate (guide) forwards and clamp it (see illustration).
The end of the fence plate (guide) rail comes up against a virtual line,
which starts at the front edge of the saw blade and runs under to the rear at
an angle of 45° across the machine table.
🡆
The workpiece can not, as a result, become clamped in-between the
fence and the saw blade.
5.
On machines with sliding table:
L
ock the sliding table into the centre position.
6.
Place the workpiece against the rip fence.
7.
Switch the saw on.
8.
Feed the workpiece evenly past the saw blade, keeping your fingers balled
int
o a fist.
2.3.6 Cutting short, narrower workpieces
1
2
3
4
Fig. 26: Cutting short, narrow workpieces
1 Deflector wedge
2 Move the rip fence away
