Adjustments and tool changes
1.3.3 Establish operational readiness
Oper
ational readiness when using saw blades

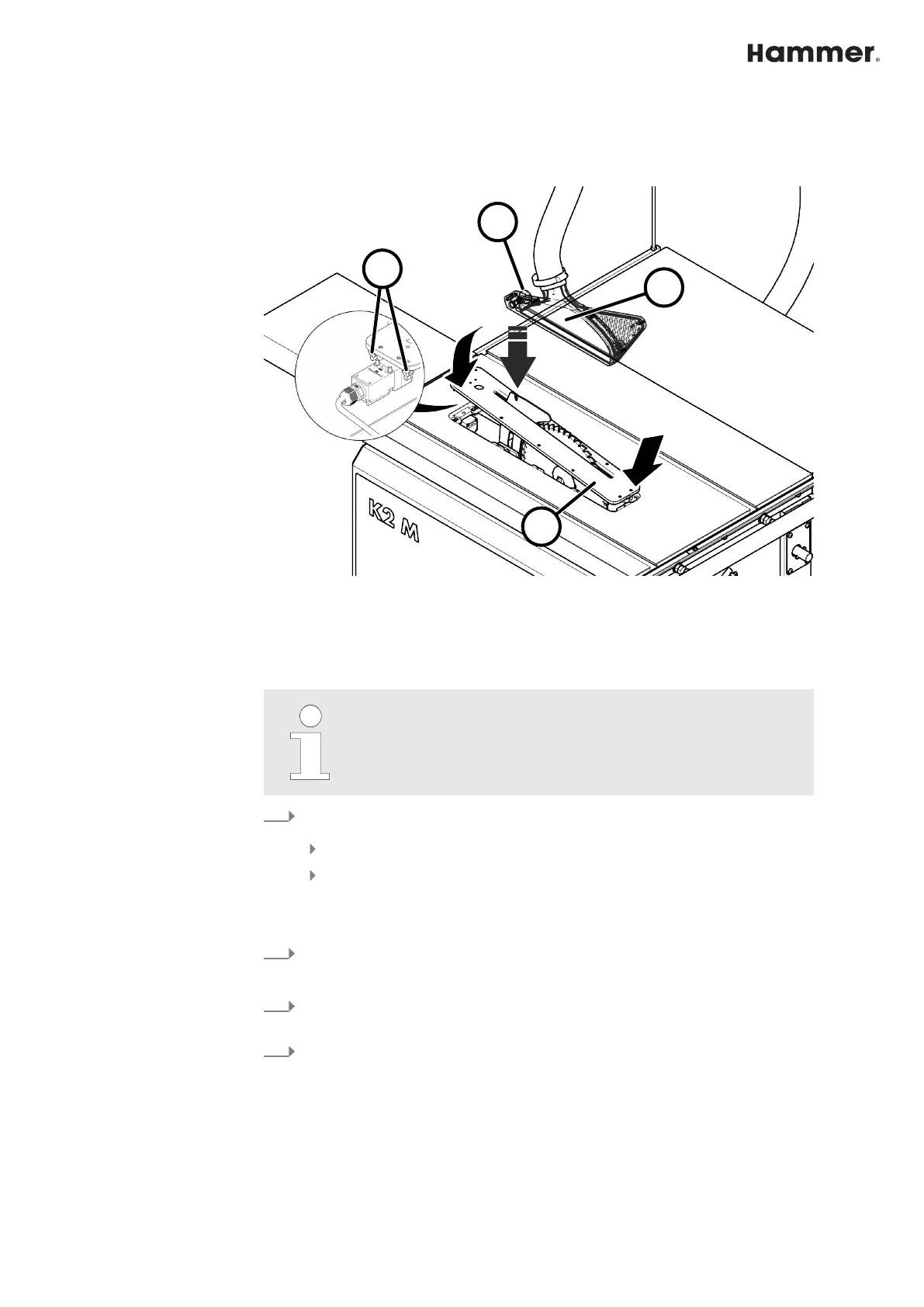

Fig. 8: Operational readiness - Saw blade work
1 Insert board
2 Saw guard
3 Spring catches
4 Thumb nut
Operational readiness
T
he saw blade only operates if the limit switch inside the machine
frame has not been actuated by the locking system.
1.
Inserting the insert board.
Hook the insert board into the machine table on the right (front).
Engage the insert board on the left (rear) in the snap springs.
🡆
Ensure that the insert board locks in place correctly on the right and the
le
ft side.
2.
Place the saw guard on the riving knife from above.
🡆
The insert board must sit flush with the machine table.
3.
Check settings of the protective hood. ⮫
Chapter 1.6 ‘Fitting and adjusting
circular saw guard’ on page 25
4.
Tighten thumb nut.
