Attachment
Width adjustment of the guide rail
5
3
2
1
4

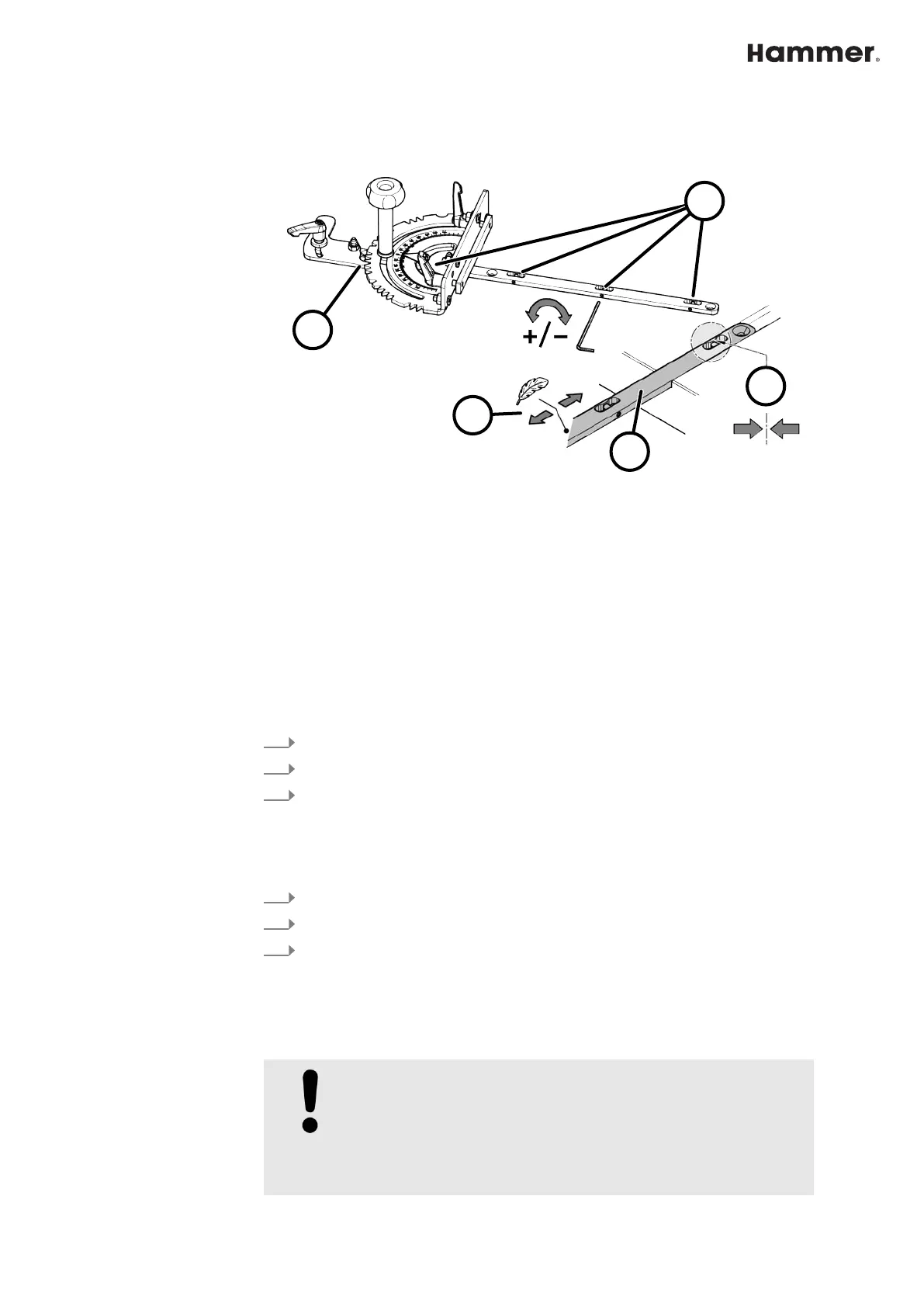

Fig. 42: Crosscut fence - Adjust the rail width
1 Ease of operation
2 Guide rail
3 Play (guide rail / machine table)
4 First grub screw
5 Grub screws two to five
Tool:
● Allen key 2 mm
T
he width of the guide rail can be adjusted to the width of the guiding groove
using the 5 grub screws.
The fence should slide smooth but without side play in the guiding groove.
1.
Check ease of movement by pushing back and forth.
2.
Remove the crosscut fence from the guide slot in the machine table.
3.
Adjust the play (movement) between the guide rail and machine table.
T
urn the first grub screw with a 2 mm Allen key:
● clockwise: reduce ease of movement (less gap)
● counterclockwise: set more clearance
4.
Slide the crosscut fence into the guide slot in the machine table.
5.
Check the setting and adjust if necessary.
6.
Repeat the adjustment on the remaining grub screws.
5 Attachment
5.1 Information relating to spare parts
NOTICE
Wrong or faulty spare parts
Ma
terial damage, malfunction, machine failure
− Only use spare parts approved by the manufacturer (see spare
par
ts list).
