Hammer K2 M - Remove the Riving Knife

19
K2 M - Part 2/2
Adjustments and tool changes
1.4.4 Remove the riving knife
1
2
3

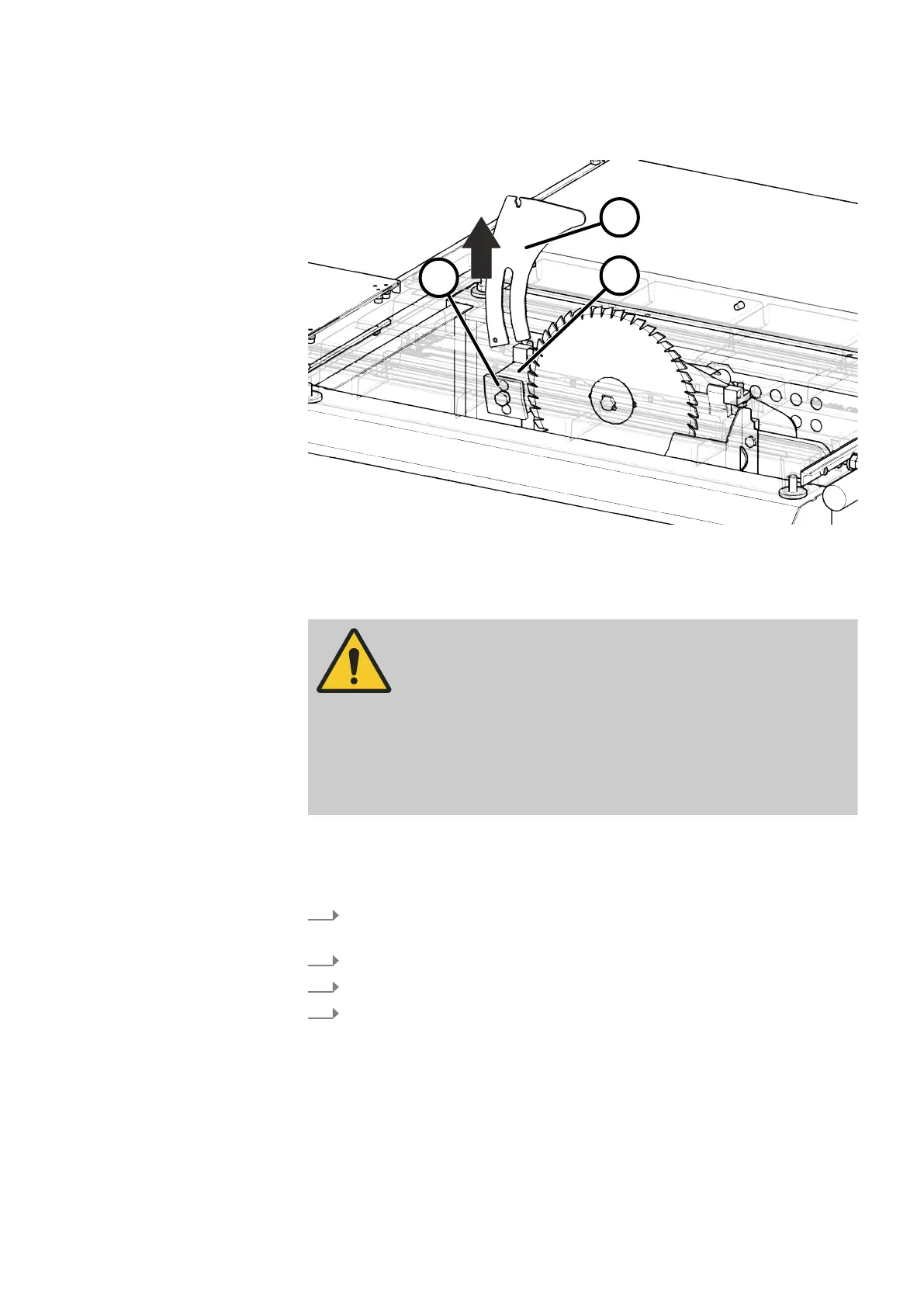

Fig. 15: Remove the riving knife
1 Clamping screw
2 Riving knife holder
3 Riving knife
WARNING
Serious injury arising from contact with the rotating saw blade
If w
orking without a riving knife, the workpiece could become
jammed after the saw blade.
− Operation without the riving knife is only allowed when using
g
rooving tools.
− A riving knife is required when working with circular saw
blade
s.
Remove the riving knife:
T
ool:
● Combination wrench 17 mm
1.
Preparing the machine for a tool change. ⮫
Chapter 1.3.2 ‘Prepare to
change tooling’ on page 11
2.
Loosen the clamping screw.
3.
Pull the riving knife upwards out of the riving knife holder.
4.
WARNING F
lying pieces
Severe injuries and damage to property.
● Minimum tightening torque of the clamping bolt: 25 Nm.
Tighten the clamping screw.
