Hammer K2 M - Changing the Saw Blade

14
Adjustments and tool changes
1.4 Changing the saw blade
1.4.1 Installing the saw blade in the machine
N
ote
For precision cuts, we recommend you to use the smallest saw
blade possible.
See technical data for authorised saw blades.
2
4
3
5
1
6

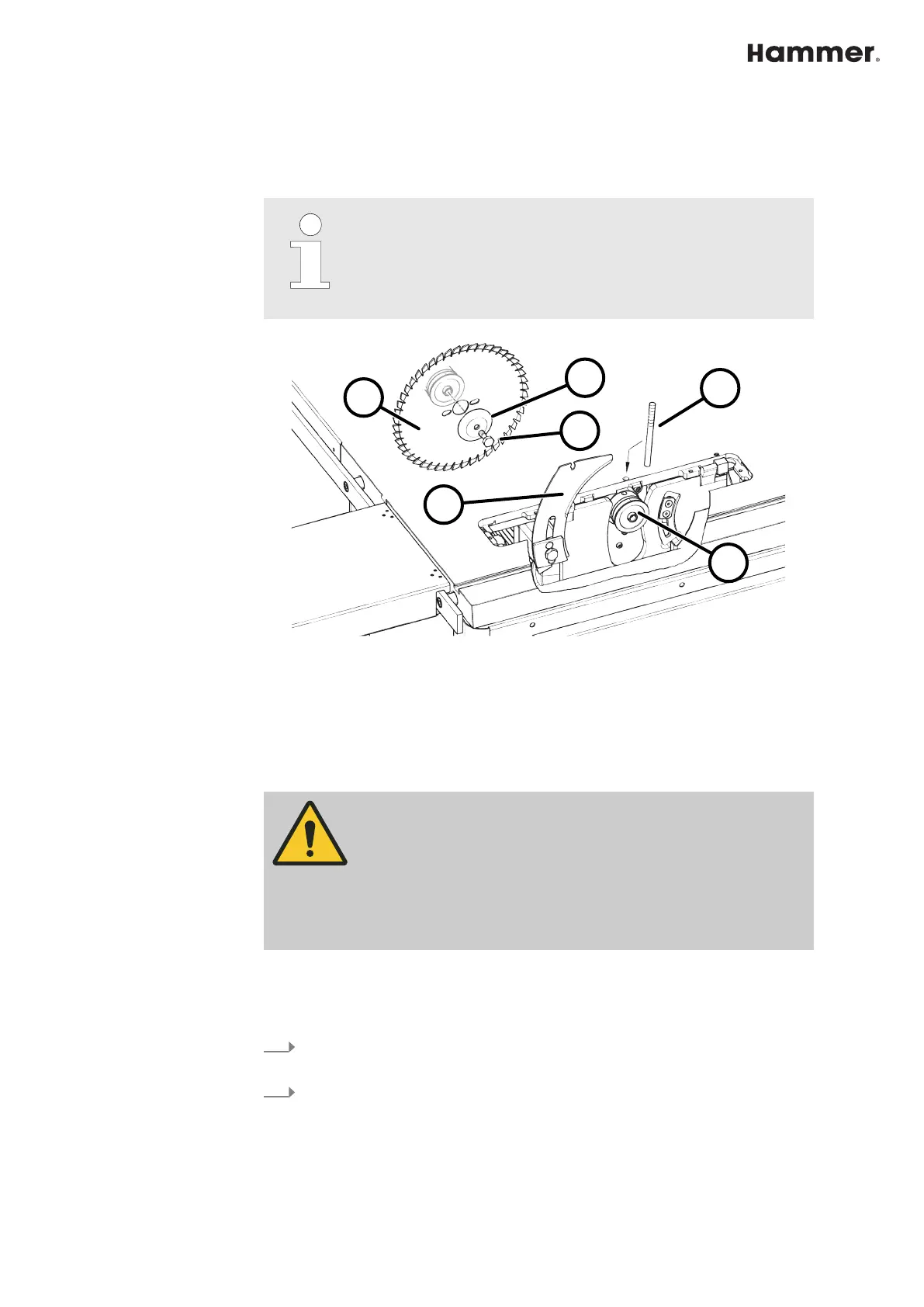

Fig. 10: Change the saw blade.eps
1 Riving knife
2 Locking pins
3 Saw arbour
4 Clamping screw (M10x27 L)
5 Flange
6 Saw blade
WARNING
Sharp and hot tool cutting edges
Cut
s and burns due to sharp and hot tools.
− Wear protective gloves.
− Adjustments to the machine or changing the tools may only be
done onc
e the machine has stopped.
Tool:
● Spanner 17 mm
● Locking pins
1.
Preparing the machine for a tool change. ⮫
Chapter 1.3.2 ‘Prepare to
change tooling’ on page 11
2.
To install a larger saw blade loosen the riving knife. ⮫
Chapter 1.4.2
‘Loosen / adjust riving knife’ on page 15
