Hammer K2 M - Loosen; Adjust Riving Knife

15
K2 M - Part 2/2
Adjustments and tool changes
3.
Secure the saw arbour against rotation.
Insert the locking pin into the hole on the circular saw table.
Turn the circular saw shaft until the locking pin engages.
4.
Loosen the clamping screw with a fork wrench.
L
eft screw thread, loosen by turning clockwise.
5.
Remove the clamping bolt and saw flange.
6.
Remove the old saw blade and place the new saw blade on the arbour.
7.
Replace the flange (take note of the assembling position).
🡆
Insert the flange with the drivers into the holes of the saw arbour.
8.
Hold the circular saw flange and fit the clamping screw.
9.
WARNING F
lying pieces
Severe injuries and damage to property.
● Minimum tightening torque of the clamping bolt: 20 Nm.
Tighten the clamping screw with fork wrench.
L
eft screw thread, tighten by turning counter clockwise.
10.
Remove the locking pin from the hole.
11.
Adjust the riving knife if a larger or smaller saw blade has been fitted.
12.
Prepare the machine to operate. ⮫
Chapter 1.3.3 ‘Establish operational
readiness’ on page 12

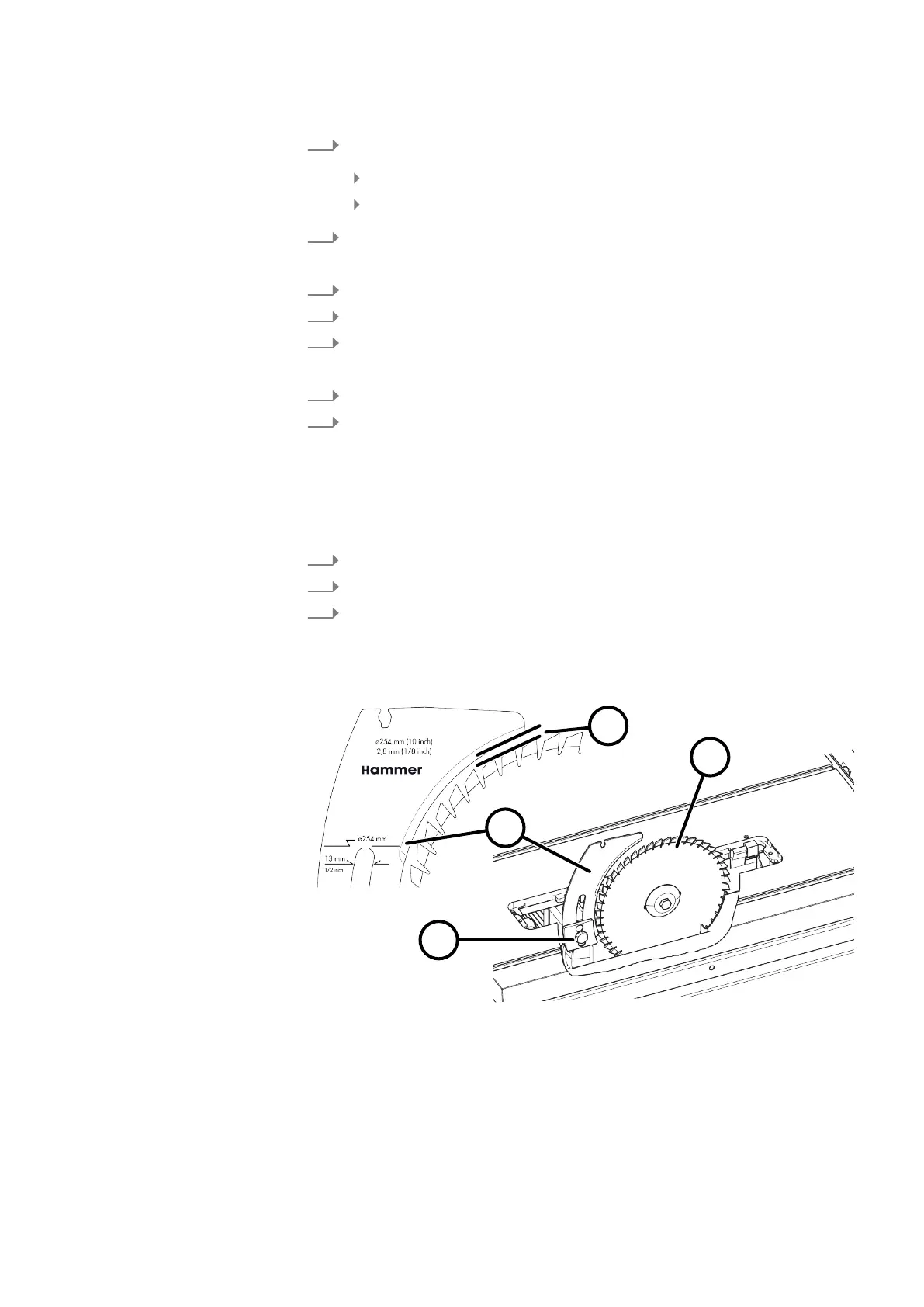

1.4.2 Loosen / adjust riving knife
1
2
3
4
Fig. 11: Adjust the riving knife
1 Clamping screw
2 Riving knife / markings
3 Distance
4 Saw blade
