2.3.9 Working with grooving tools (Sägeboy auxiliary fence)
2
3
1

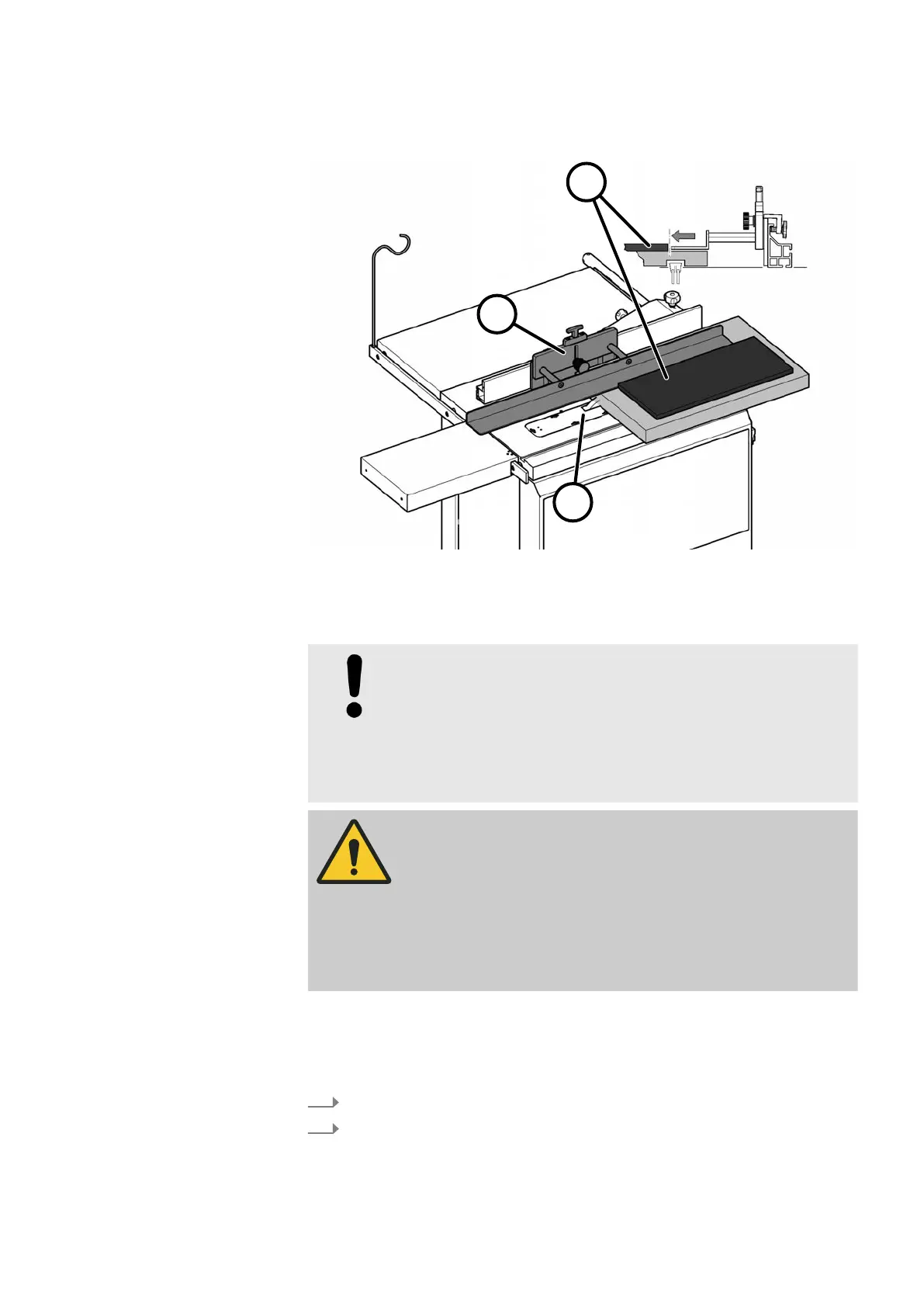

Fig. 29: Working with grooving tools
1 Grooving tool, no riving knife
2 Sägeboy auxiliary fence (accessory)
3 Template (mounted to the workpiece)
NOTICE
Collision between machine components
Material damage when swivelling the saw unit.
− Position the saw aggregate in the 90° position.
− Do not adjust the 90° angle when operating with grooving
t
ooling.
WARNING
Inadequate protection when working with grooving tools
S
evere injury caused by contact with a rotating grooving tool.
− Use overhead saw guard or "Sägeboy" auxiliary fence (acces-
sor
y art. no. 01.0.022).
− Do not pull the rip fence plate (guide) back.
− Remove the riving knife.
Work with grooving tools may only be carried out with an overhead saw guard
or Säg
eboy auxiliary fence (accessory art. no. 01.0.022).
Do not, under any circumstances, use a saw blade guard (guard mounted onto
riving knife).
1.
Take note of general procedures for permitted working methods.
2.
Convert machine to operation with grooving tools.
