4.6 Correct crosscut fence settings

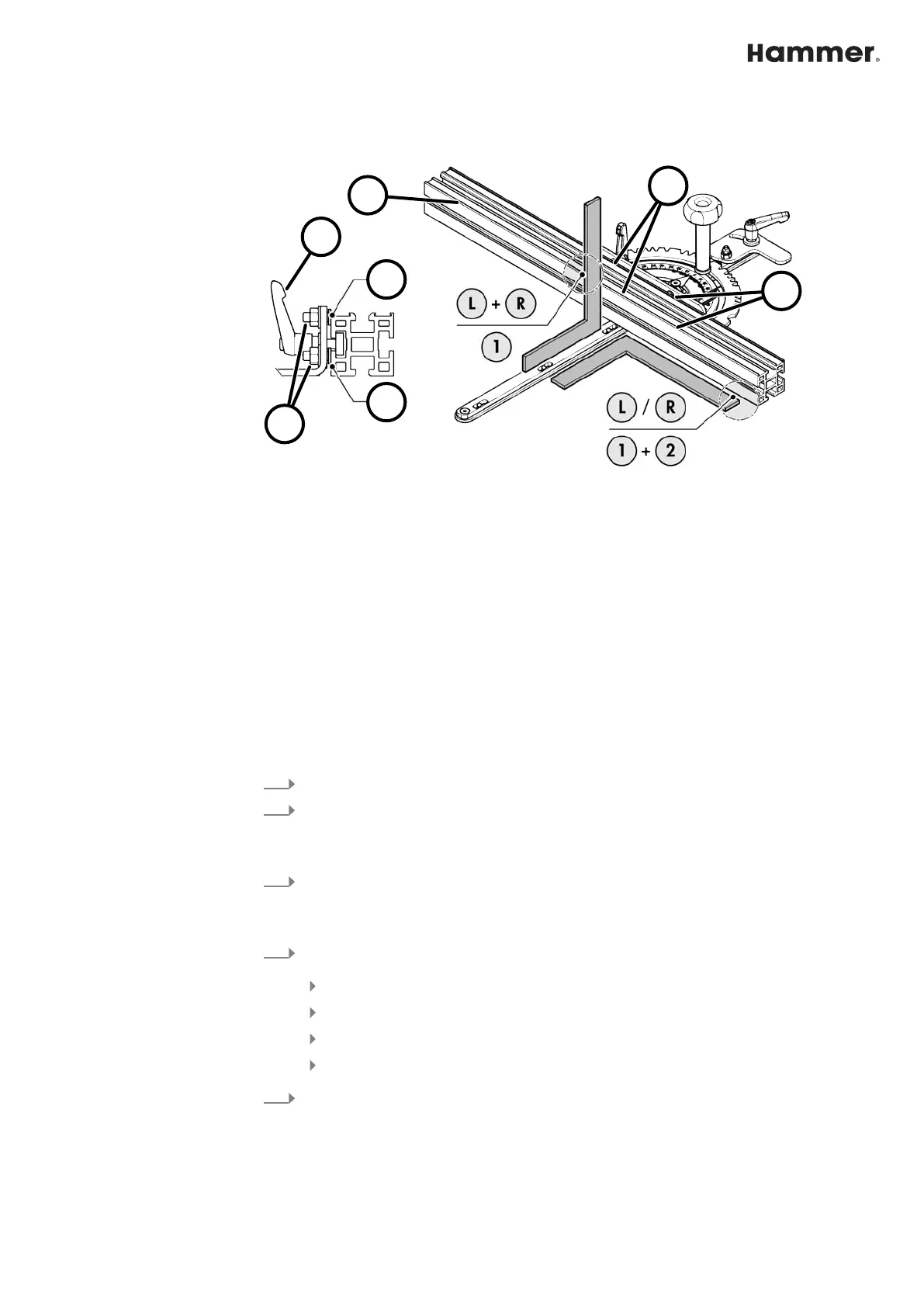

Fig. 40: Crosscut fence - Angle correction
1 Upper adjustment screw
2 Lower adjustment screw
3 Locking nut
4 Clamping lever
5 Fence plate
L Left adjustment screws
R Right adjustment screws
0°-angle adjustment (readjust)
T
ool:
● Angle gauge
● Combination wrench 10 mm
● Allen key 3 mm
1.
Loosen both clamping levers (left and right) and remove the fence plate.
2.
In case of vertical angle misalignment, turn the upper and adjustment
scr
ews.
🡆
Make correction left and right.
3.
In case of horizontal angle misalignment, turn the upper and lower set
ad
justment screws.
🡆
Make correction left or right.
4.
Angle correction with adjustment screws:
Hold the set screws with an Allen key.
Loosen locking nut.
Rotate adjustment screw.
Tighten the lock nut.
5.
Thread in the stop rail and clamp both clamping levers (left and right).
