6.
Prepare the machine to operate. ⮫
‘Operational readiness when using saw
blades’ on page 12
1.6 Fitting and adjusting circular saw guard

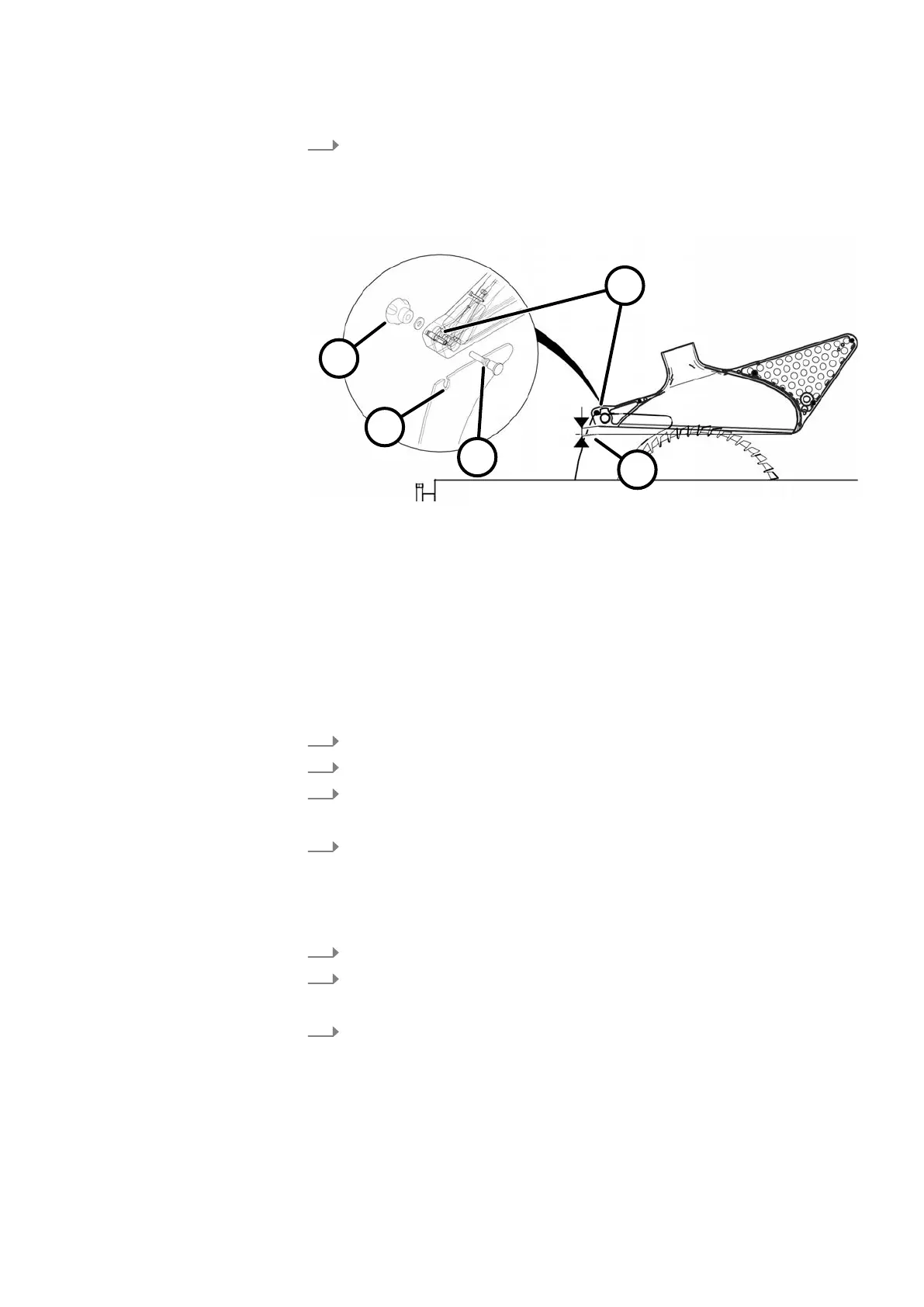

Fig. 21: Adjust circular saw guard
1 Riving knife (recess)
2 Thumb nut
3 Hood stud
4 Distance (inclination - min. 2 mm / max. 4 mm)
5 Adjustment screw (inclination)
To prevent injuries when using the circular saw, the machine must be equipped
w
ith a protective hood which is positioned over the saw blade.
Install circular saw guard
1.
Loosen the thumb nut.
2.
Press the hood stud forwards with the thumb nut.
3.
Place the saw guard on the riving knife from above.
🡆
Make sure that the cover bolts sit correctly in the slot of the splitter.
4.
Secure the thumb nut.
A
djust the inclination of the circular saw guard:
Tool:
● Allen key 3 mm
1.
Loosen the thumb nut.
2.
Adjust the inclination of the saw guard with the adjusting screw.
🡆
Pay attention to setting value of the distance in the graphic.
3.
Secure the thumb nut.
2 Use
2.1 Auxiliary aids for safe operation
● Support long workpieces with additional supports (e.g. table extensions,
r
oller supports).
