Hantek IDSO1070 series User Manual

PC Application
User’s Manual 38

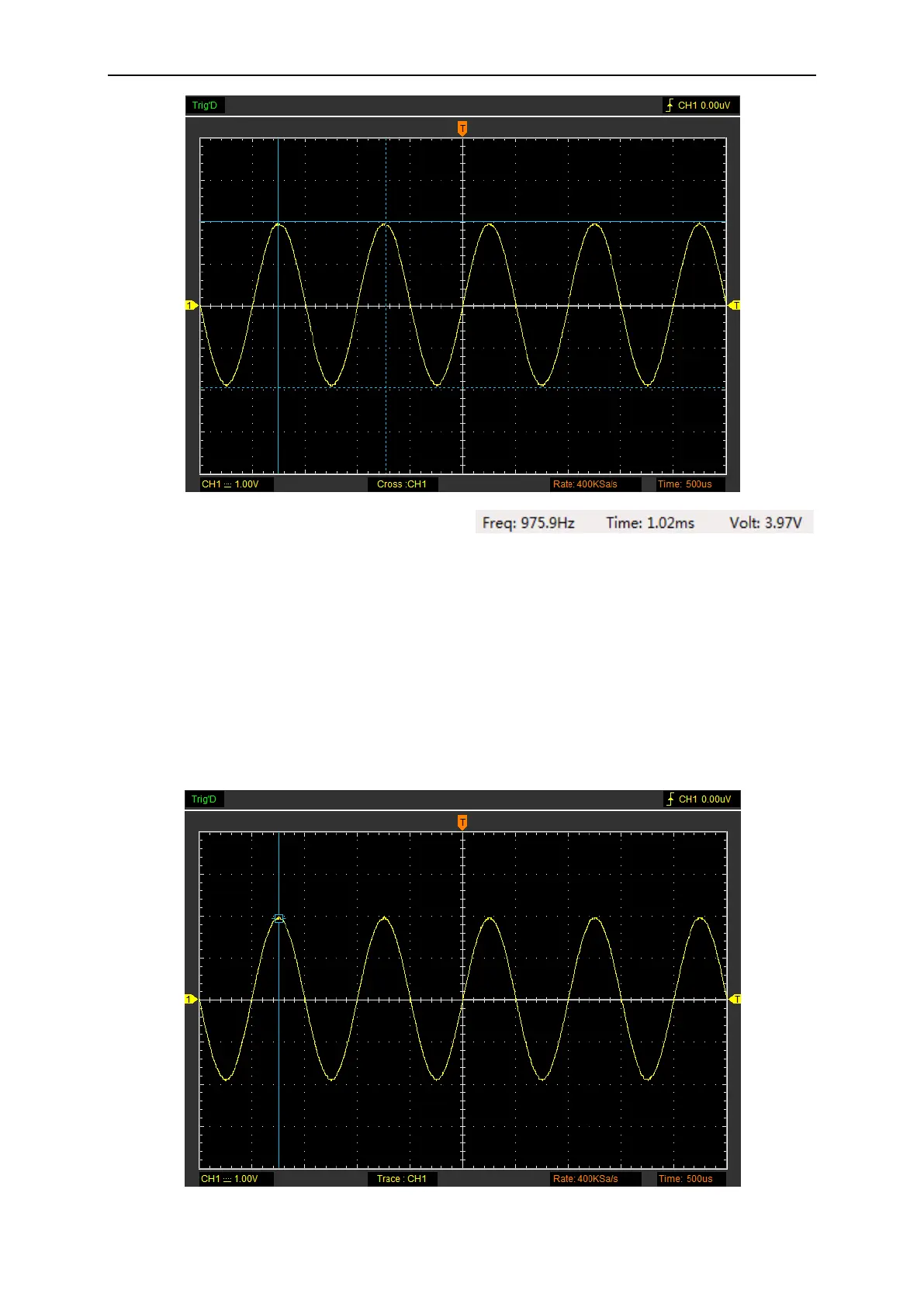

The Cross measure result displays on status bar:
2) Trace
The Trace cursors appear as vertical lines on the display and measure the waveform amplitude at
the point the waveform crosses the cursor.
Do these steps:
1. Click “Cursor->Source”, select CH1 (select CH2 if you want trace CH2).
2. Click “Cursor->Type”, select Trace.
3. Click the cursor at the position that you want traced of the wave in the waveform window.
The Trace cursor display window:
