Haulotte HTT13 - Ground Control Box; Boom and Arm Controls

66 4000670450 E 04.19 USA / GB
D - Operation instructions
3632T - HTT13
2 - Ground control box

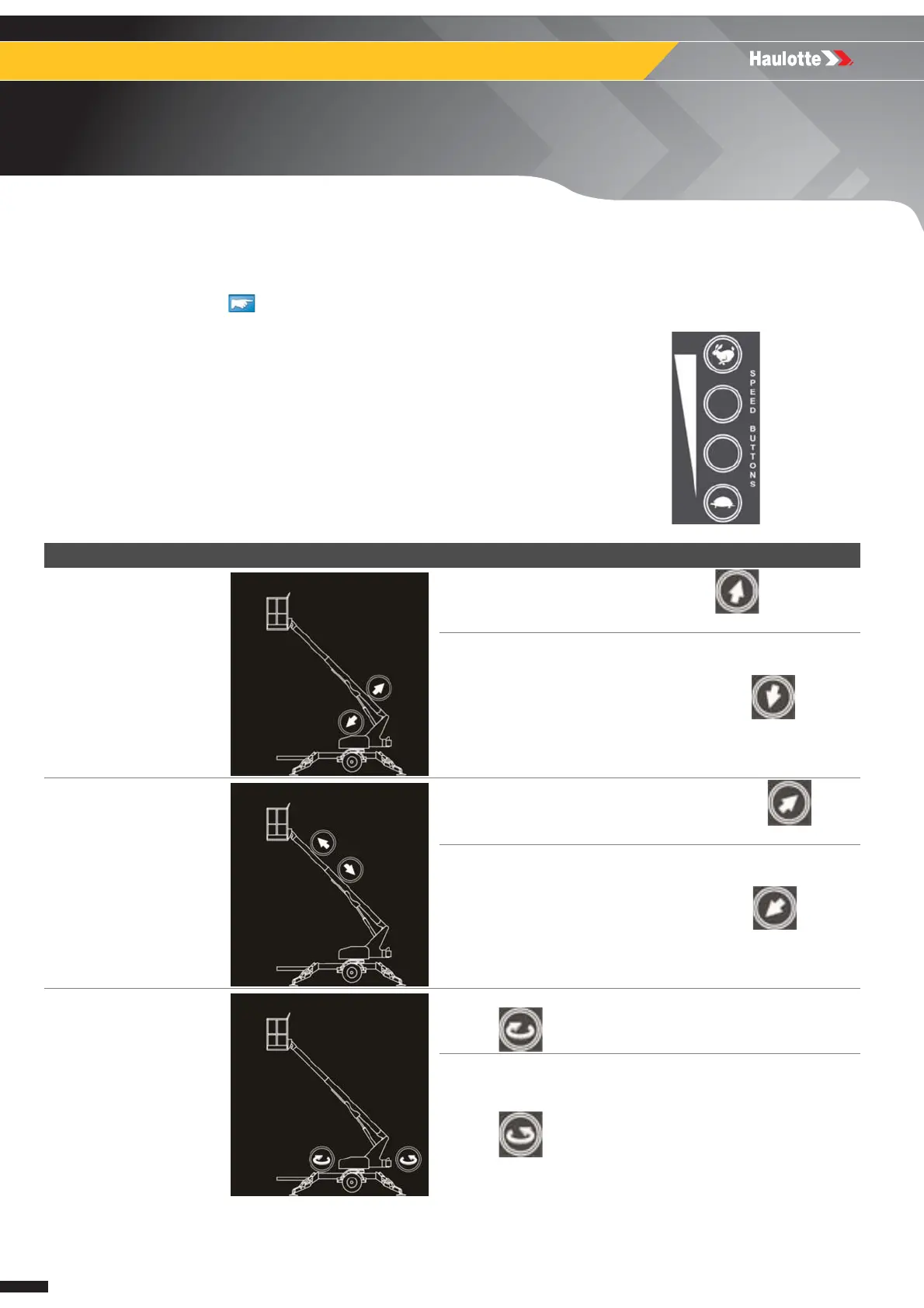

2.1 - BOOM AND ARM CONTROLS
Refer to Section B 3.2 - Ground control box.
Ground box controls (emergency station) :
• Must press (push) in and hold a desired SPEED/
ENABLE button ( 15 ) simultaneously with desired
control button
Command Action
Raising / lowering of arm
Press the arm raising control ( 9 ) upwards to raise the
arm
Press the arm lowering control ( 10 ) downwards to lower
the arm
Boom telescoping extend
/ retract
Press the boom telescoping control ( 11 ) to extend the
boom.
Press the boom retracting control ( 12 ) to retract the
boom.
Turntable rotation
Press the turntable rotation control ( 7 ) for a clockwise
rotation .
Press the turntable rotation control ( 8 ) for an counterclockwise
rotation .
