93 4000670450 E 04.19 USA / GB
E
- General Specifications
3632T - HTT13
5.2.2 - Drive and set controls
The platform (upper) control box of a Drive and Set equipped aerial work platform includes the
following controls and indicators.

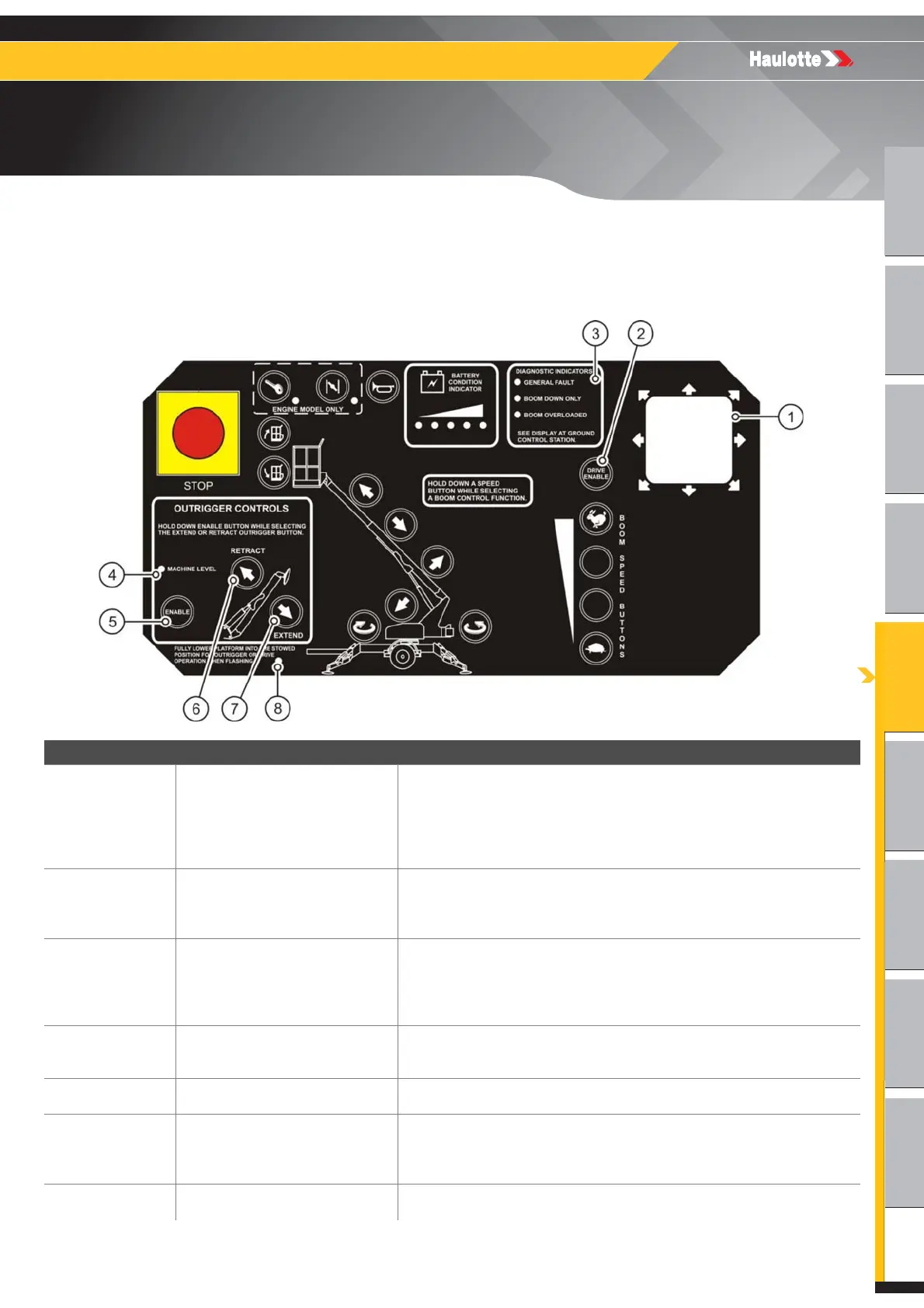

Drive and set controls
Marking Description Function
1 Drive and set joystick
• The multi-axis JOYSTICK ( 1 ) drives the aerial work platform in the
direction of movement.
• The JOYSTICK ( 1 ) only functions when the DRIVE ENABLE ( 2 )
button is pressed (pushed in) and held.
• The aerial work platform stops when either the DRIVE
ENABLE ( 2 )button or JOYSTICK ( 1 ) is released.
2 Drive enable button
• Press (push) in and hold the DRIVE ENABLE ( 2 ) button to activate
the JOYSTICK ( 1 ).
• To stop, release either the DRIVE ENABLE ( 2 ) button or the
JOYSTICK ( 1 ).
3 Diagnostic indicators
• DIAGNOSTIC INDICATOR LEDS ( 3 ) will light up to indicate that an
error in boom raise or drive function has occurred.
• When lit, check the DISPLAY PANEL ( 5 ) on the ground (lower) control
box for an error code. Refer to Table Error Code Definitions, located in
the "Maintenance" section of this manual.
3A General Fault LED
When lit, check the DISPLAY PANEL ( 5 ) on the ground (lower) control
box for an error code. Refer to Table Error Code Definitions, located in
the "Maintenance" section of this manual.
3B Boom Down Only LED
When lit, this is an indication that the machine is our of level and the
down speeds are reduced.
3C Boom Overload LED
When lit, this is an indication of too much weight in the work platform; all
functional operations become non-functional until the weight is below
the Maximum Allowed Capacity ( 227 Kg (500 lbs)) rating for the
platform.
4 Machine level indicator
The machine LEVEL INDICATOR LED ( 4 ) will light up to indicate that
the aerial work platform is level and boom functions can be performed.
