3632T - HTT13
6.2.1 - Procedure to hitch and tow

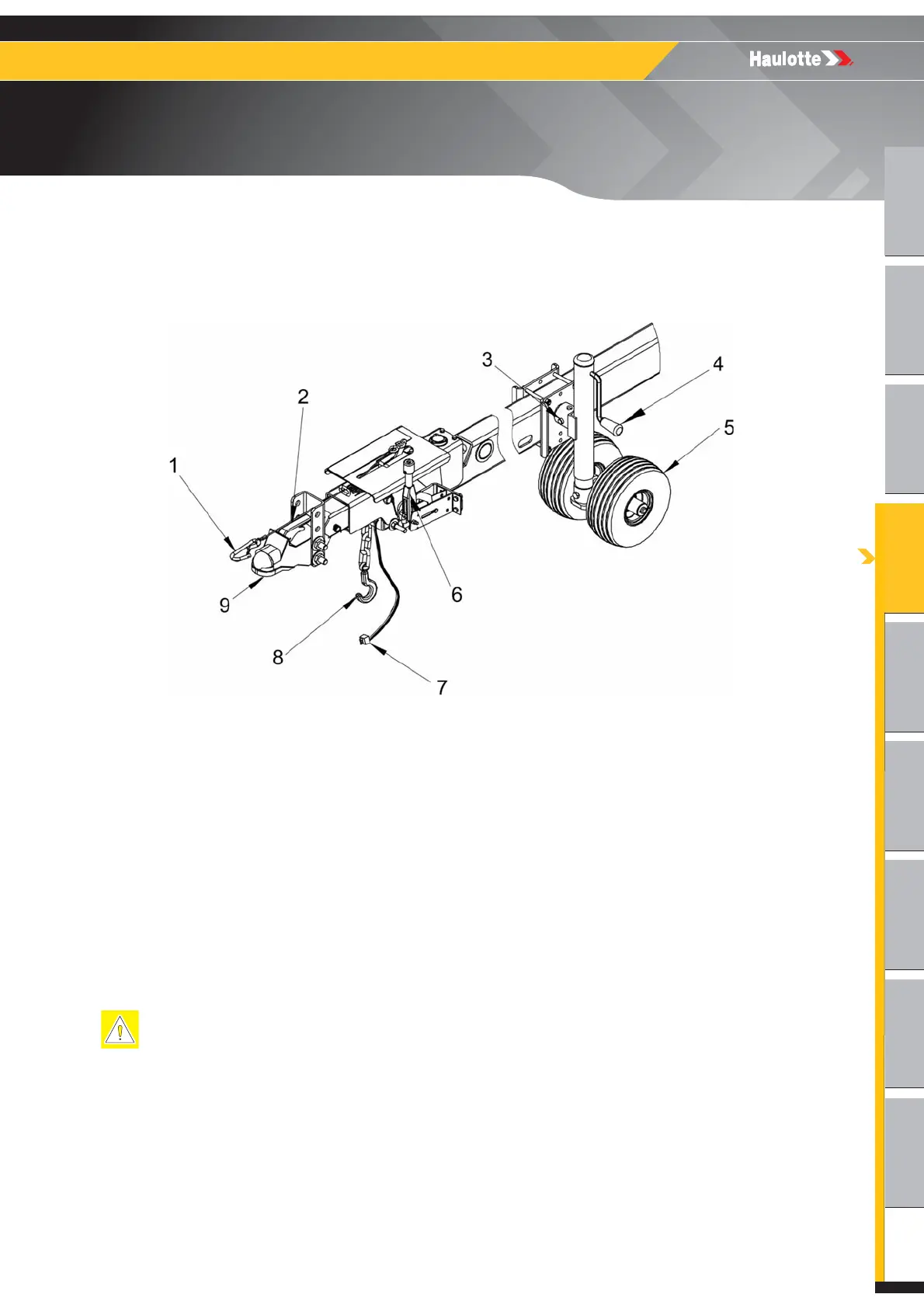

Back the tow vehicle to the trailer. Verify that the ball and trailer hitch are aligned and that the
trailer hitch has proper clearance above the ball.
Trailer hitching
• Lift the RELEASE LEVER ( 2 ) on the TRAILER HITCH ( 9 ) and lower the hitch onto the ball
using the TONGUE JACK ( 4 ) / DOLLY WHEEL ( 5 ). Push down on the RELEASE
LEVER ( 2 ) to secure the ball.
• Use the TONGUE JACK ( 4 ) / DOLLY WHEEL ( 5 ) to verify that the coupling is secure.
N.B.-:-I
F USING THE JACK RAISES THE BUMPER OF THE TOW VEHICLE 5,08 - 7,62 CM (2 - 3 IN),
THE BALL HITCH COUPLING IS SECURE.
• Release the PARKING BRAKE ( 6 ) by rotating the handle up until it is perpendicular with
the tongue tube.
• On the TONGUE JACK ( 4 ) / DOLLY WHEEL ( 5 ), pull the CLEVIS PIN ( 3 ) and swivel the
TONGUE JACK / DOLLY WHEEL (4 / 5) to the travel position. Re-engage the CLEVIS
PIN ( 3 ).
• Attach the safety chains ( 8 ) to the tow vehicle. Verify that the chains cross under the trailer
tongue.
• For models with the breakaway cable ( 1 ); connect it to the tow vehicle.
• Connect the trailer lights to the tow vehicle power plug.
Failure to attach safety chains properly before towing will allow trailer tongue to drop in case of ball hitch
failure, resulting in damage to tow vehicle and aerial work platform.
