Haulotte HTT13 - Transporting on to a Truck Bed; Unloading

A
B
C
D
E
F
G
H
I
77 4000670450 E 04.19 USA / GB
D - Operation instructions
3632T - HTT13
6.1.2 - Transporting on to a truck bed

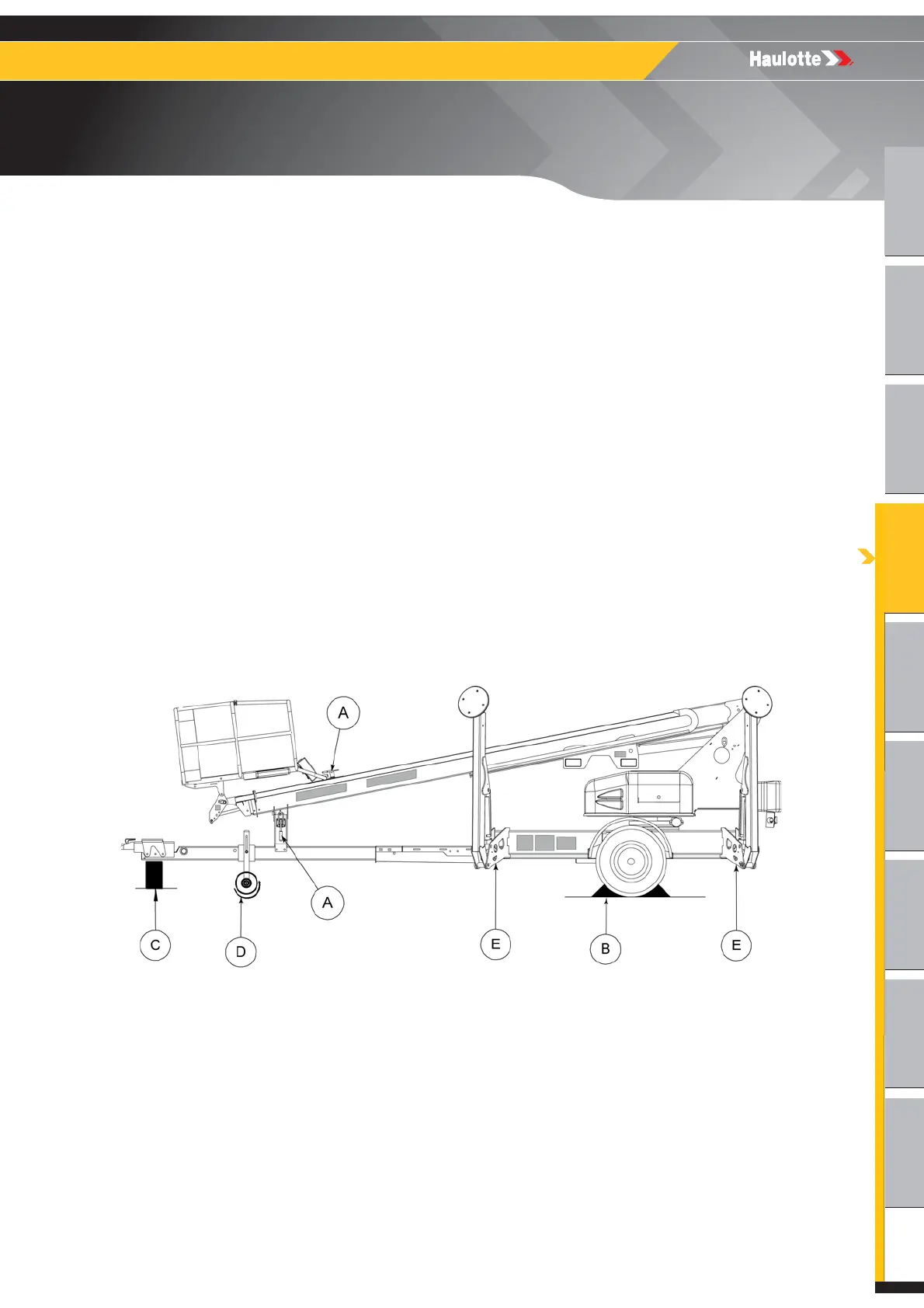

• Verify that the truck or trailer is parked on a firm and level surface.
• Completely retract and lower all booms into the stowed position.
• Secure both BOOM TRAVEL LATCHES ( A ).
• Retract all OUTRIGGER CYLINDERS to the fully stowed (upright) position.
• Prior to transport, move the fuel shut-off lever to the left position(lever is located on the
engine below the choke lever). Failure to close the fuel shut-off valve before transporting
boom may result in engine damage. (For gas model only)
• Load boom onto the truck bed or trailer.
• Chock the wheels ( B ) and apply the PARKING BRAKE.
• Place a wooden block ( C ) under the TONGUE, near the TRAILER HITCH.
• Lower the TONGUE JACK / DOLLY WHEEL ( D ) until the TRAILER TONGUE rests on the
wooden block. Swing up and lock the TONGUE JACK/DOLLY WHEEL ( D ) so that the
weight of the TONGUE now rests on the wooden block.
• Secure the aerial work platform to the trailer bed using straps or chains. Use only the four
attachment points ( E ) beneath the machine, adjacent to the outriggers.
• Adjust as necessary to prevent damage to rigging equipment or machine.
Transport the Aerial Work Platform
6.1.3 - Unloading
• Before unloading, check that the machine is in good condition.
• Remove the ties or chains.
• Remove the wedges from the wheels ( B - C ).
• Release the both BOOM TRAVEL LATCHES ( A ).
