Mechanical installation
T10F A0608-14.0 HBM: public 25
6x or 8x (Z) DIN EN ISO 4762
hexagonsocket screws (10.9/12.9)
8x fastening screws (10.9/12.9); note
maximum screw‐in depth Y!
Measuring body

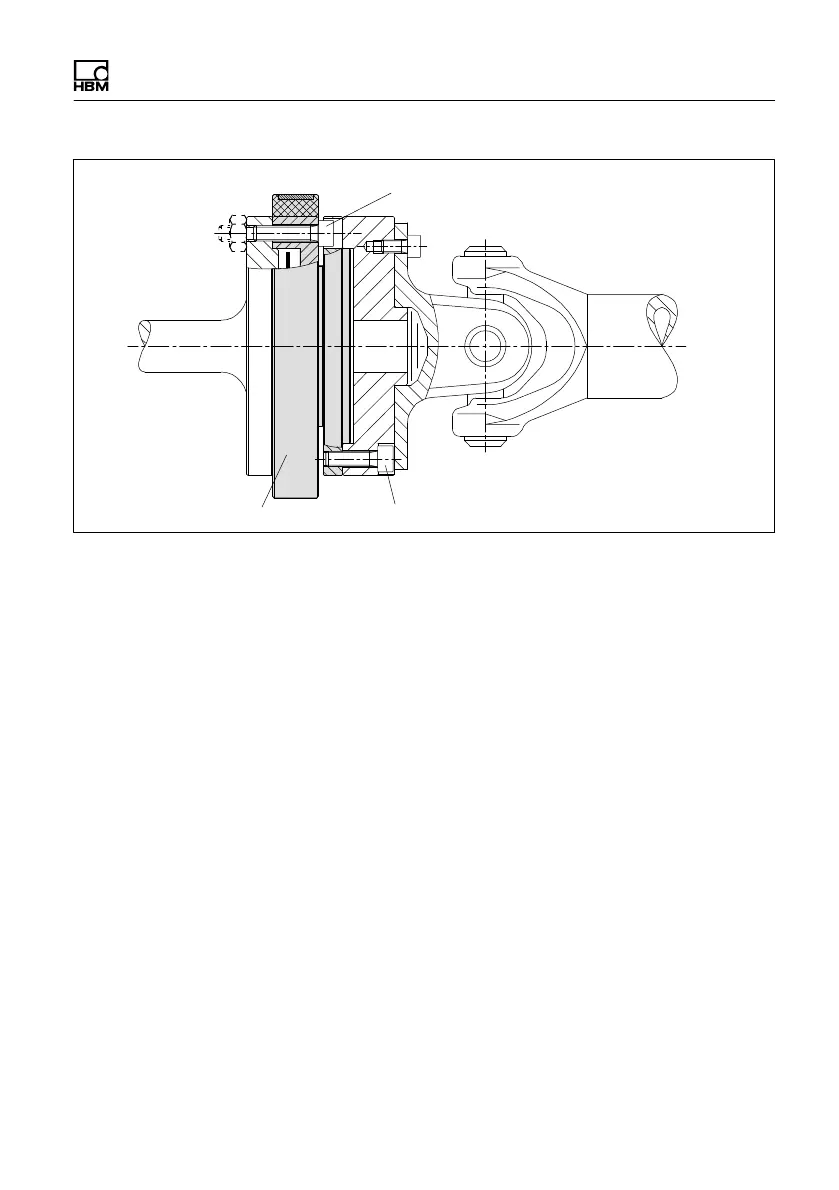

Fig. 6.3 Screwed rotor joint
2. For the bolted rotor connection, use eight DIN EN
ISO 4762 property class 10.9 hexagon socket screws
(measuring range 10 kNVm: 12.9) of a suitable length
(dependent on the connection geometry, see
Fig. 6.4).
We recommend, particularly for 50 N⋅, 100 N⋅m and
200 N⋅m, fillisterhead screws DIN EN ISO 4762...,
blackened, smoothheaded, oiled, m
tot
0.125 permitted
size and shape variance in accordance with
DIN ISO 4759, Part 1, product class A.
