HBM T10F User Manual

Electrical connection
T10F A0608-14.0 HBM: public 45

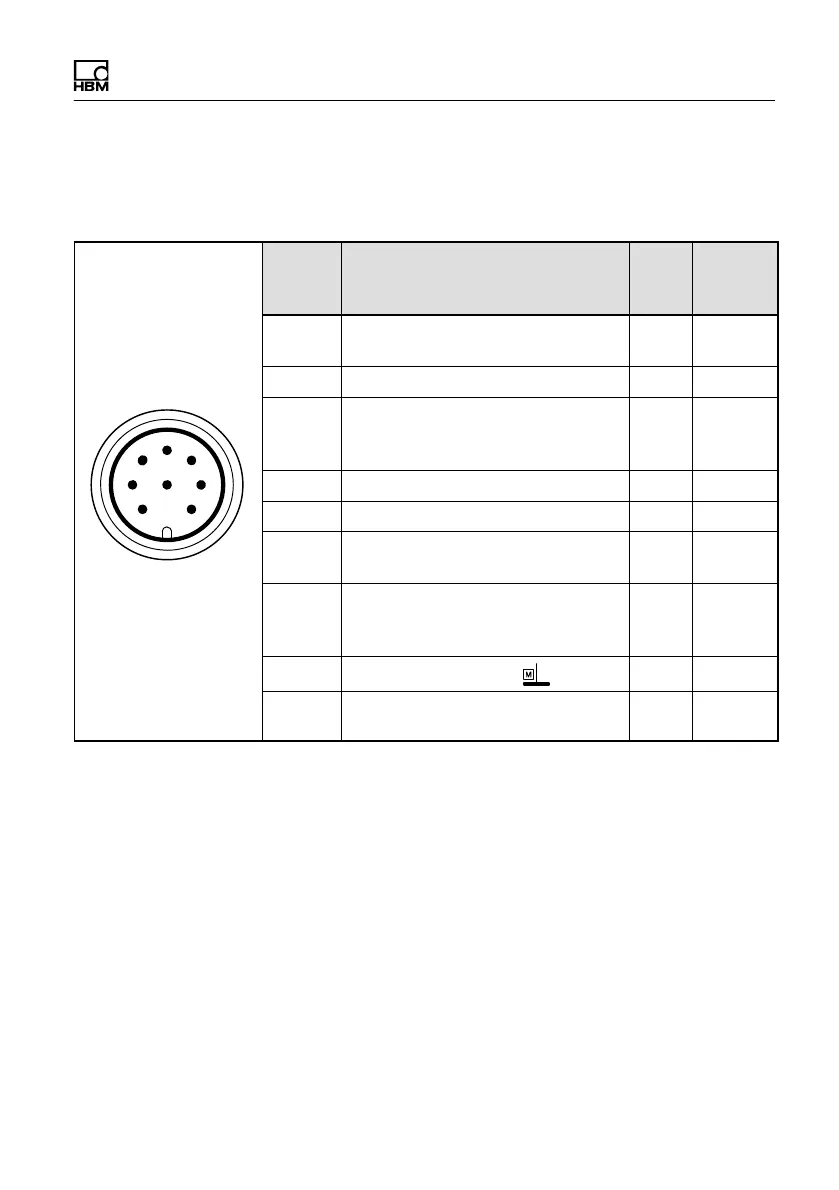

Assignment connector 2
Speed measuring system
6
1
5
7
2
4
3
8
Binder 723
Top view
Conn.
Binder
Pin
Assignment Wire
color
Sub‐D
conn.
Pin
1 Speed measurement signal (pulse
string, 5 V
1
; 0°)
rd 12
2 No function - -
3 Speed measurement signal
(pulse string, 5 V
1
; phase‐shifted
by 90°)
2
gy 15
4 No function - -
5 No function - -
6 Speed measurement signal (pulse
string, 5 V
1
; 0°)
wh 13
7 Speed measurement signal
(pulse string, 5 V
1
; phase‐shifted
by 90°)
2
gn 14
8 Supply voltage zero bk 8
Shielding connected to housing
ground
1)
RS-422 complementary signals
2)
When switching to double frequency, static direction of rotation signal.
