HEIDENHAIN ITNC 530 - CYCLE PROGRAMMING User Manual

HEIDENHAIN iTNC 530 443
16.14 Programming Examples

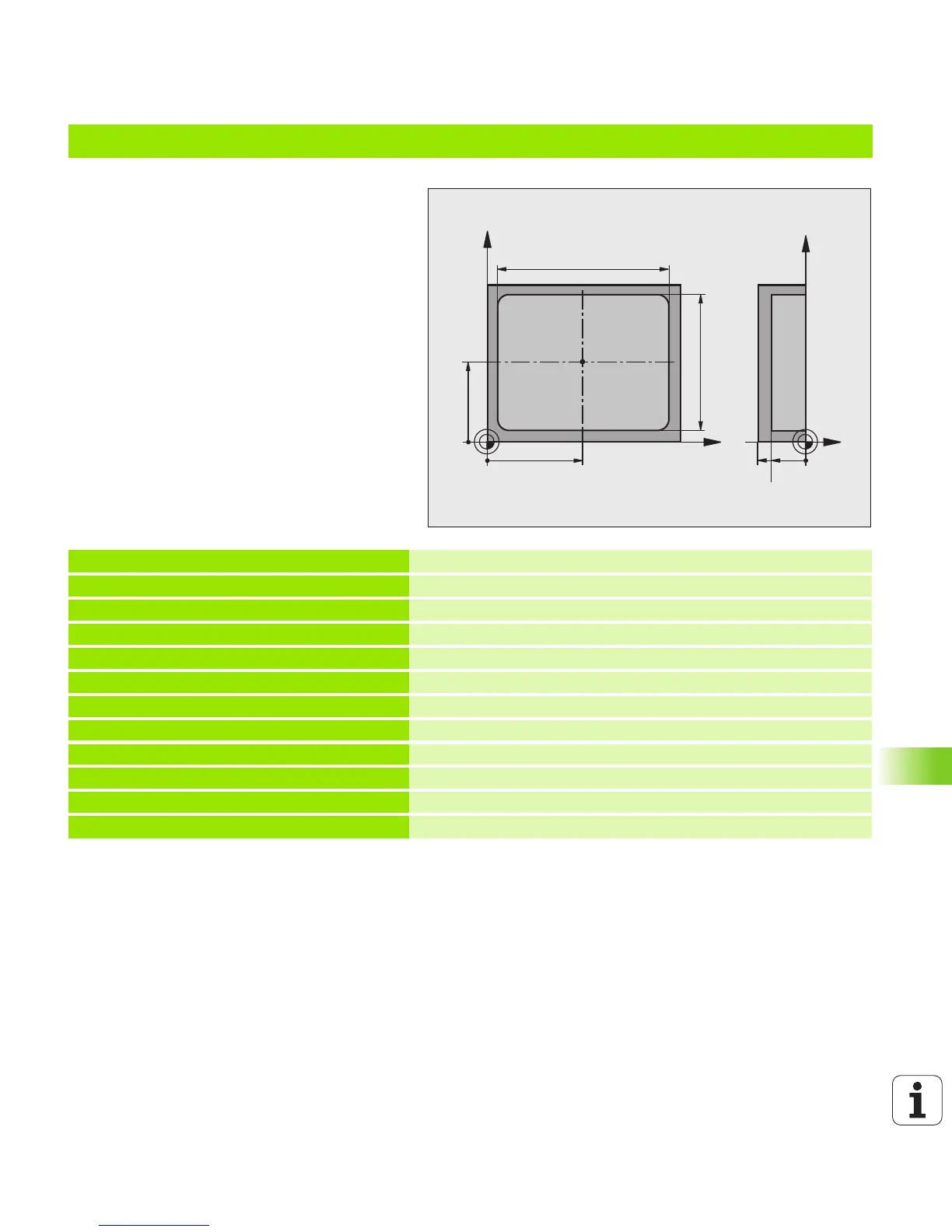

Example: Measuring a rectangular pocket and recording the results
0 BEGIN PGM BSMEAS MM
1 TOOL CALL 1 Z Tool call for touch probe
2 L Z+100 R0 FMAX Retract the touch probe
3 TCH PROBE 423 MEAS. RECTAN. INSIDE
Q273=+50 ;CENTER IN 1ST AXIS
Q274=+40 ;CENTER IN 2ND AXIS
Q282=90 ;FIRST SIDE LENGTH Nominal length in X
Q283=70 ;2ND SIDE LENGTH Nominal length in Y
Q261=-5 ;MEASURING HEIGHT
Q320=0 ;SET-UP CLEARANCE
Q260=+20 ;CLEARANCE HEIGHT
Q301=0 ;MOVE TO CLEARANCE
X
Y
50
40
70
90
Z
Y
-15
-20
