Digital Video Recorder User Manual
111
Step 3 Configure the schedule.
Please refer to the step 4 of Chapter 5.2 Configuring Recording and Capture Schedule, while
you may choose Motion as the record type.
5.4 Configuring Alarm Triggered Recording and Capture
Purpose
Follow the procedure to configure alarm triggered recording or capture.
Step 1 Enter the Alarm Setting interface.
Menu > Configuration > Alarm

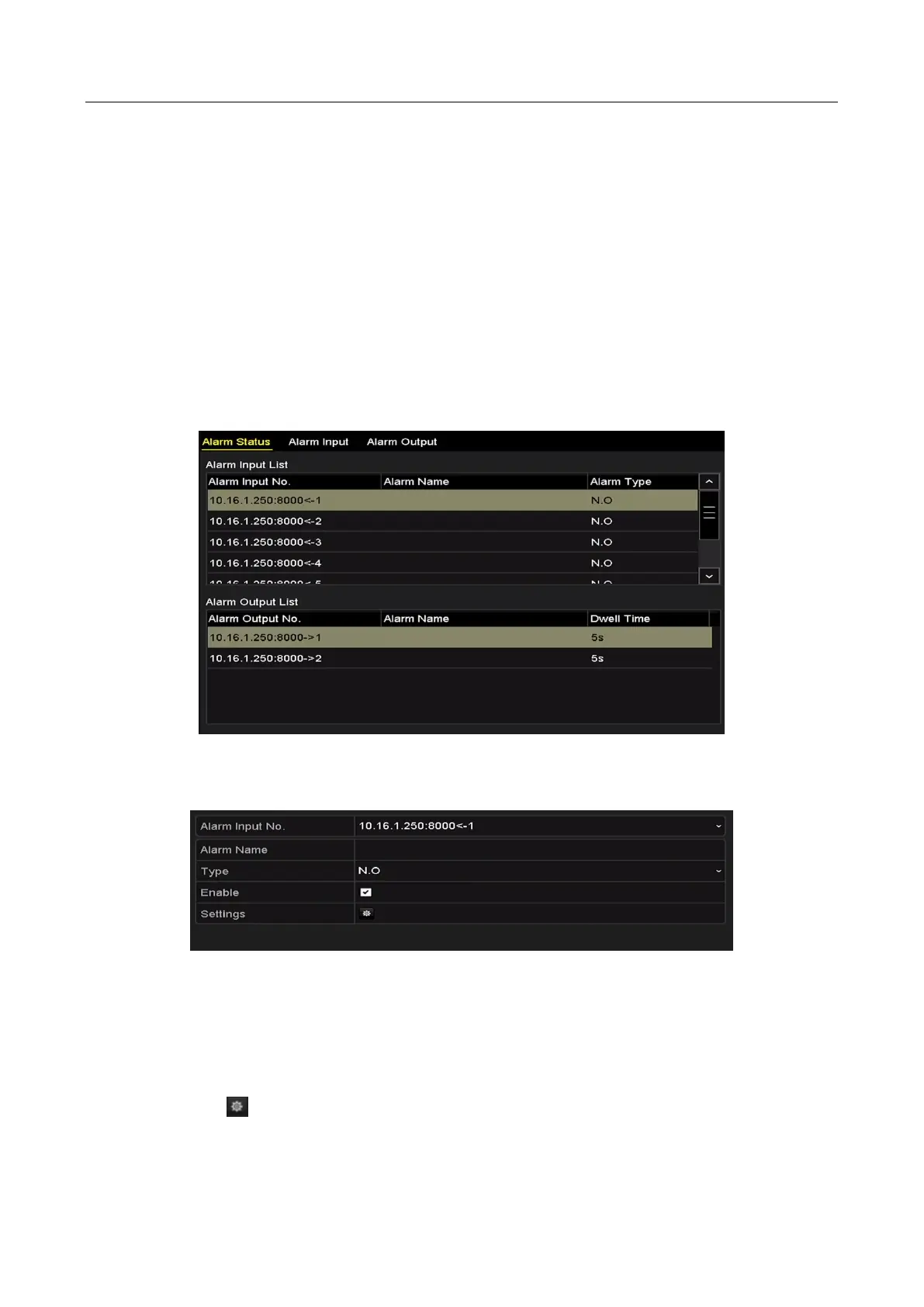

Figure 5-17 Alarm Settings
Step 2 Click the Alarm Input tab.
Figure 5-18 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox of Setting.
4) Click the button.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
