HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
190

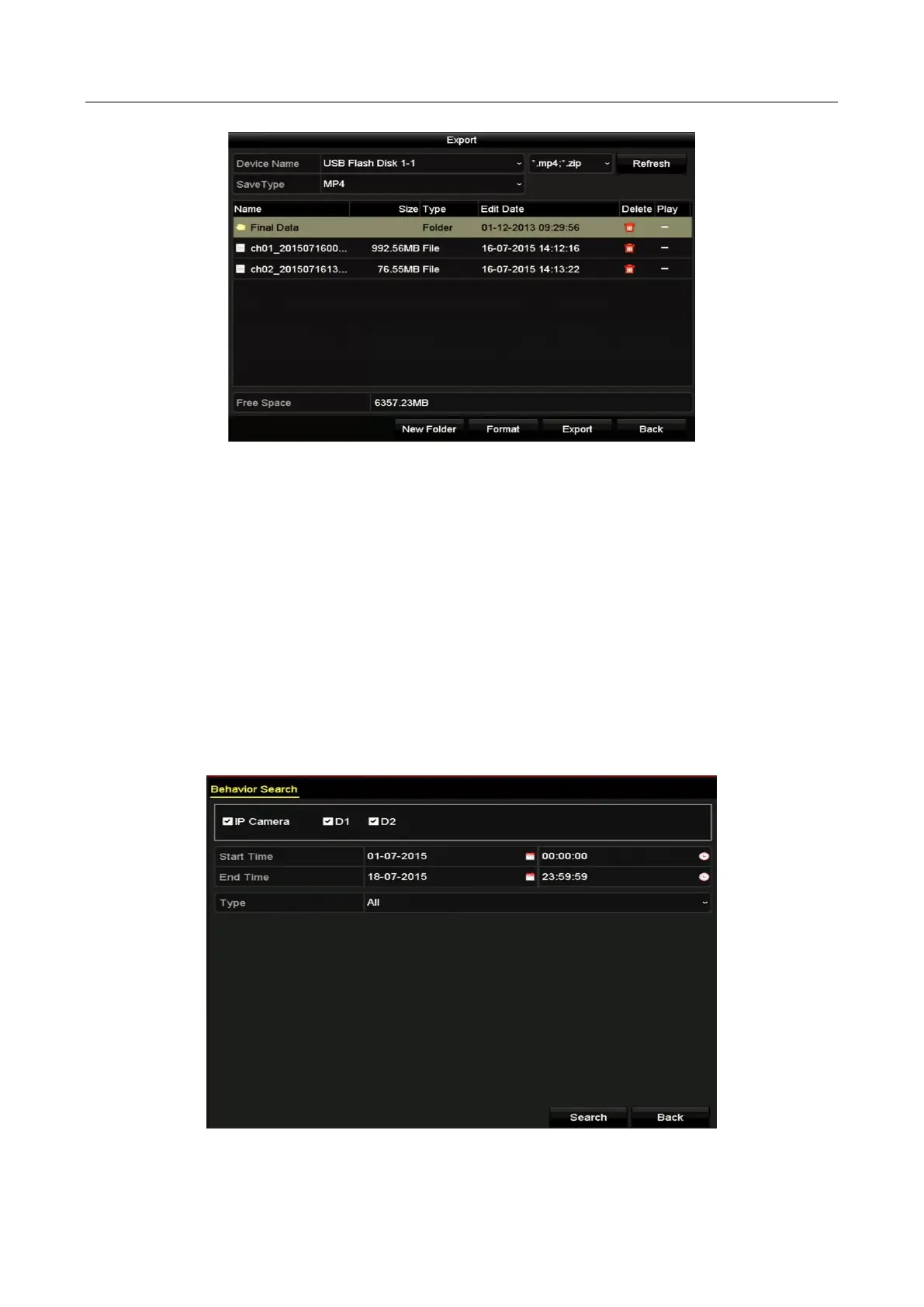

Figure 11-3 Export Files
11.2 Behavior Search
Purpose
The behavior analysis detects a series of suspicious behavior based on VCA detection, and certain
linkage methods will be enabled if the alarm is triggered.
Step 1 Enter the Behavior Search interface.
Menu>VCA Search> Behavior Search
Step 2 Select the camera (s) for the behavior search.
Step 3 Specify the start time and end time for searching the matched pictures.
Figure 11-4 Behavior Search Interface

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
