HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
258

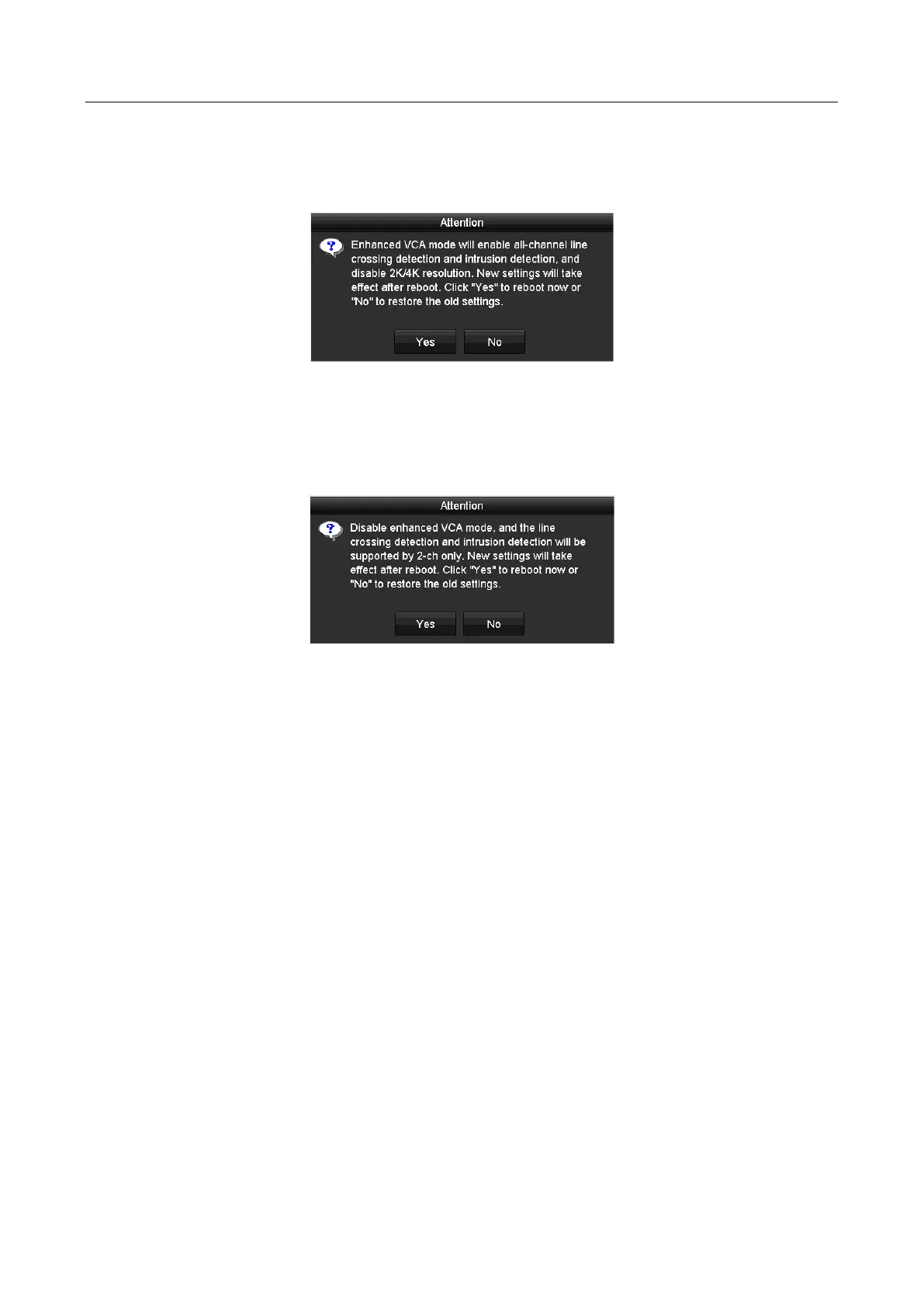

 Enhanced VCA Mode: For DS-7208/7216HUHI-F/N series DVR, you can check the checkbox
to enable enhanced VCA mode. When you enable it and click Apply, the attention box
pops up as below. Click Yes to apply the function and reboot the device.
Figure 17-10 Enable Enhanced VCA Mode
If the enhanced VCA mode has been enabled, you can disable it by unchecking the
checkbox. When you disable it and click Apply, the attention box pops up as below. Click
Yes to apply the function and reboot the device.
Figure 17-11 Disable Enhanced VCA Mode
Step 4 Click the Apply button to save the settings.
17.5 Managing User Accounts
Purpose
There is a default account in the DVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
17.5.1 Adding a User
Step 1 Enter the User Management interface.
Menu >Configuration>User

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
