95

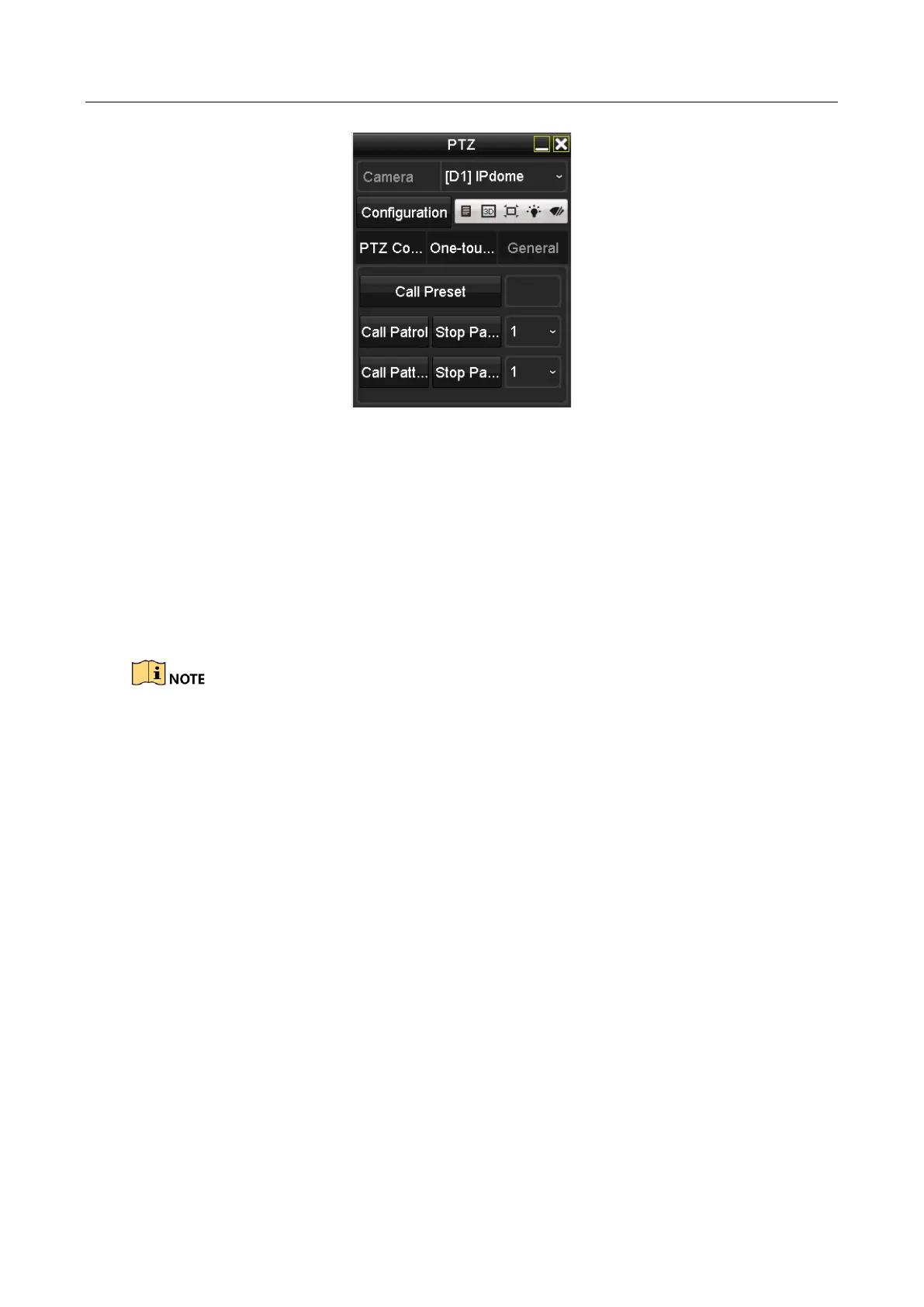

Figure 4-10 PTZ Panel - General
Step 3 Click the Call Pattern button to call it.
Step 4 Click the Stop Pattern button to stop calling it.
4.2.7 Customizing Linear Scan Limit
Purpose
The Linear Scan can be enabled to trigger the scan in the horizantal direction in the predefined
range.
This function is supported by some certain models.
Step 1 Enter the PTZ Settings interface.
Menu > Camera > PTZ

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
