HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
216

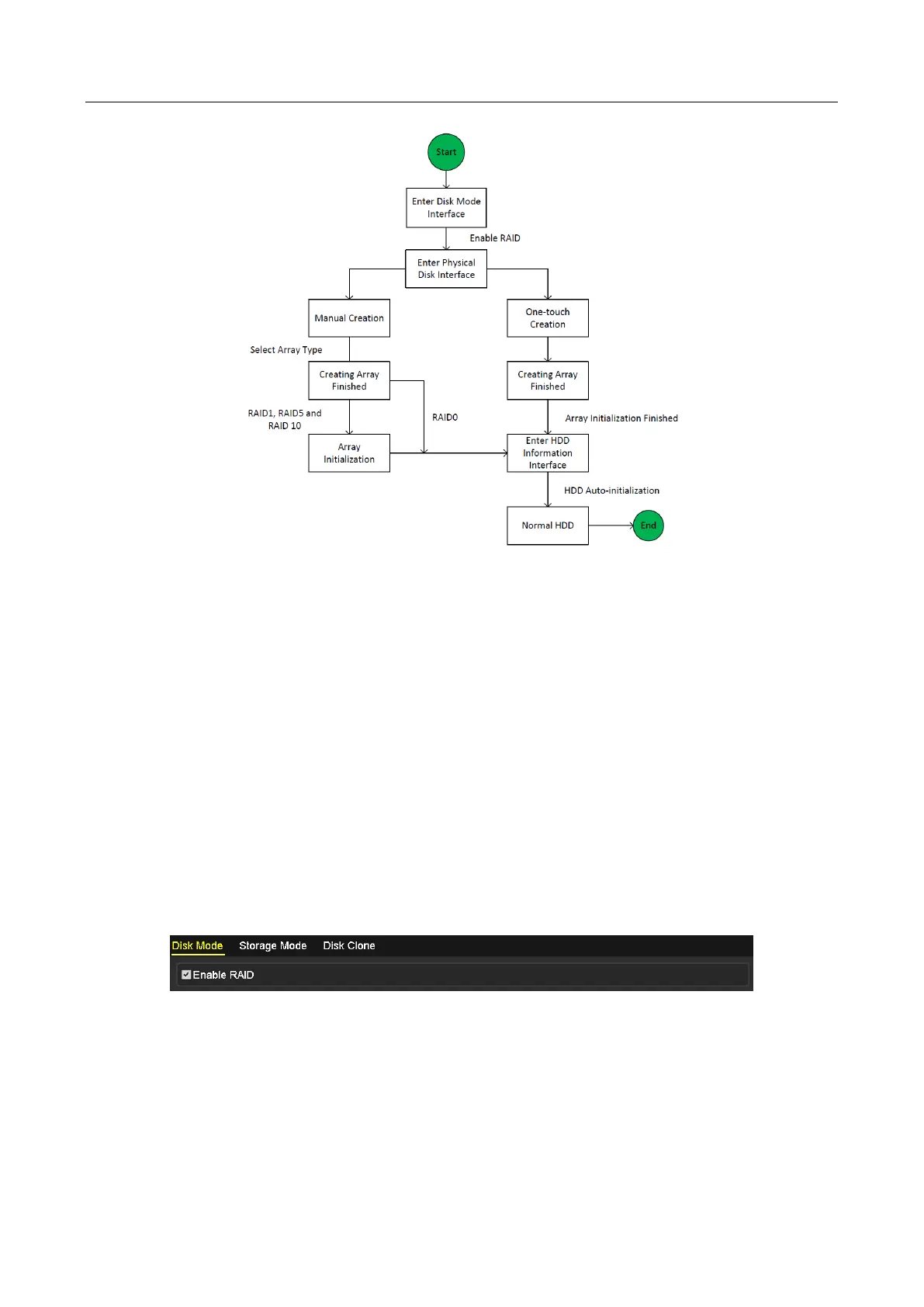

Figure 13-1 RAID Working Flow
13.1.1 Enable RAID
Purpose
Perform the following steps to enable the RAID function, or the disk array cannot be created.
 OPTION 1:
Enable the RAID function in the Wizard when the device startup, please refer to step 7 of Chapter
2.3.2.
 OPTION 2:
Enable the RAID function in the HDD Management Interface.
Step 1 Enter the Disk Mode configuration interface.
Menu > HDD > Advanced
Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
Step 4 Reboot the device to take RAID into effect.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
