HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
224
Chapter 14 HDD Management
14.1 Initializing HDDs
Purpose
A newly installed hard disk drive (HDD) must be initialized before it can be used with your DVR.
Step 1 Enter the HDD Information interface.
Menu > HDD > General

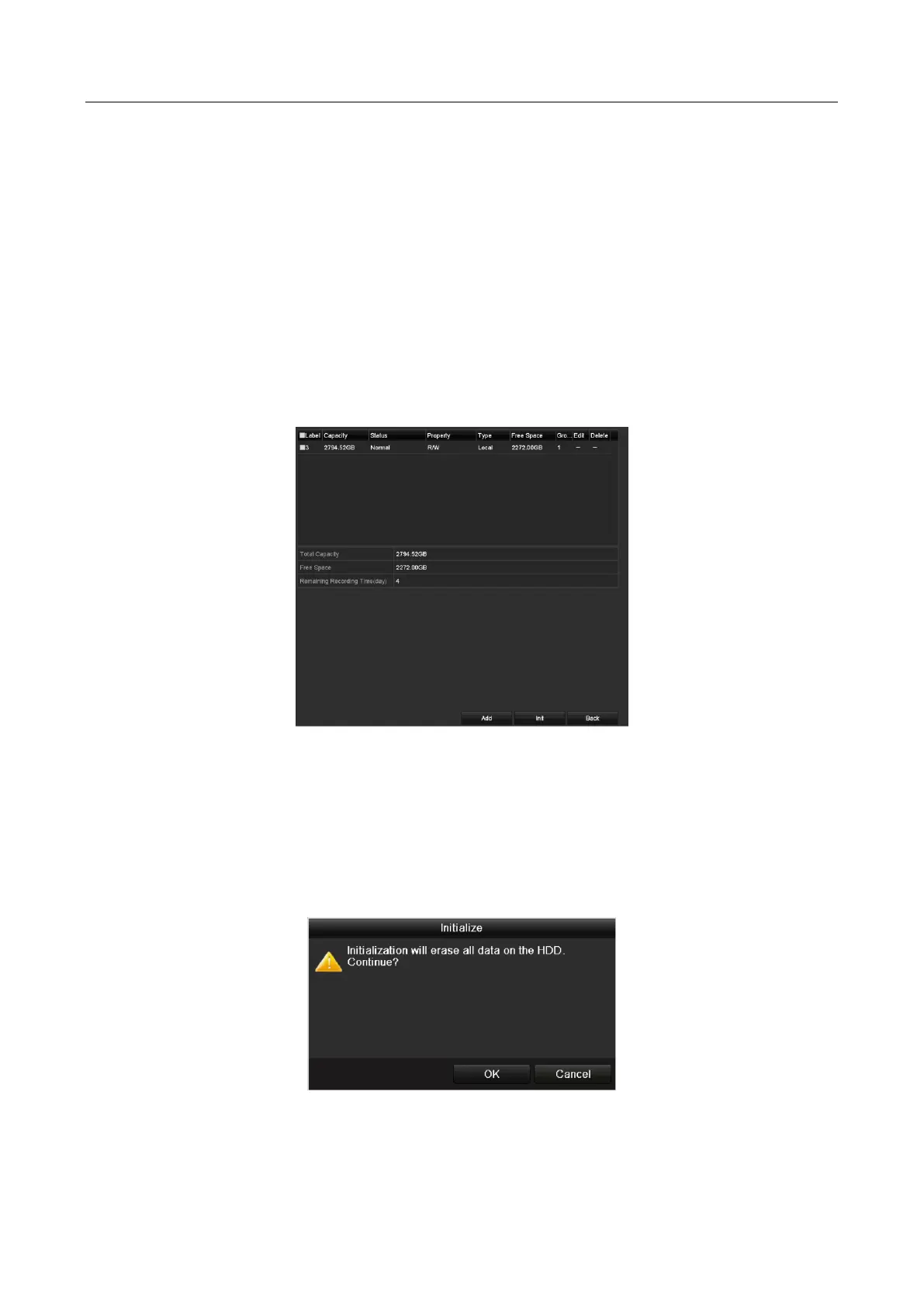

Figure 14-1 HDD Information Interface
You can view the Total Capacity, Free Space and Remaining Recording Time of the HDD. The
algorithm of the Remaining Recording Time is to use average bit rate for the channel
enabling smart encoding to raise accuracy.
Step 2 Select HDD to be initialized.
Step 3 Click the Init button.
Figure 14-2 Confirm Initialization
Step 4 Select the OK button to start initialization.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
