HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
65

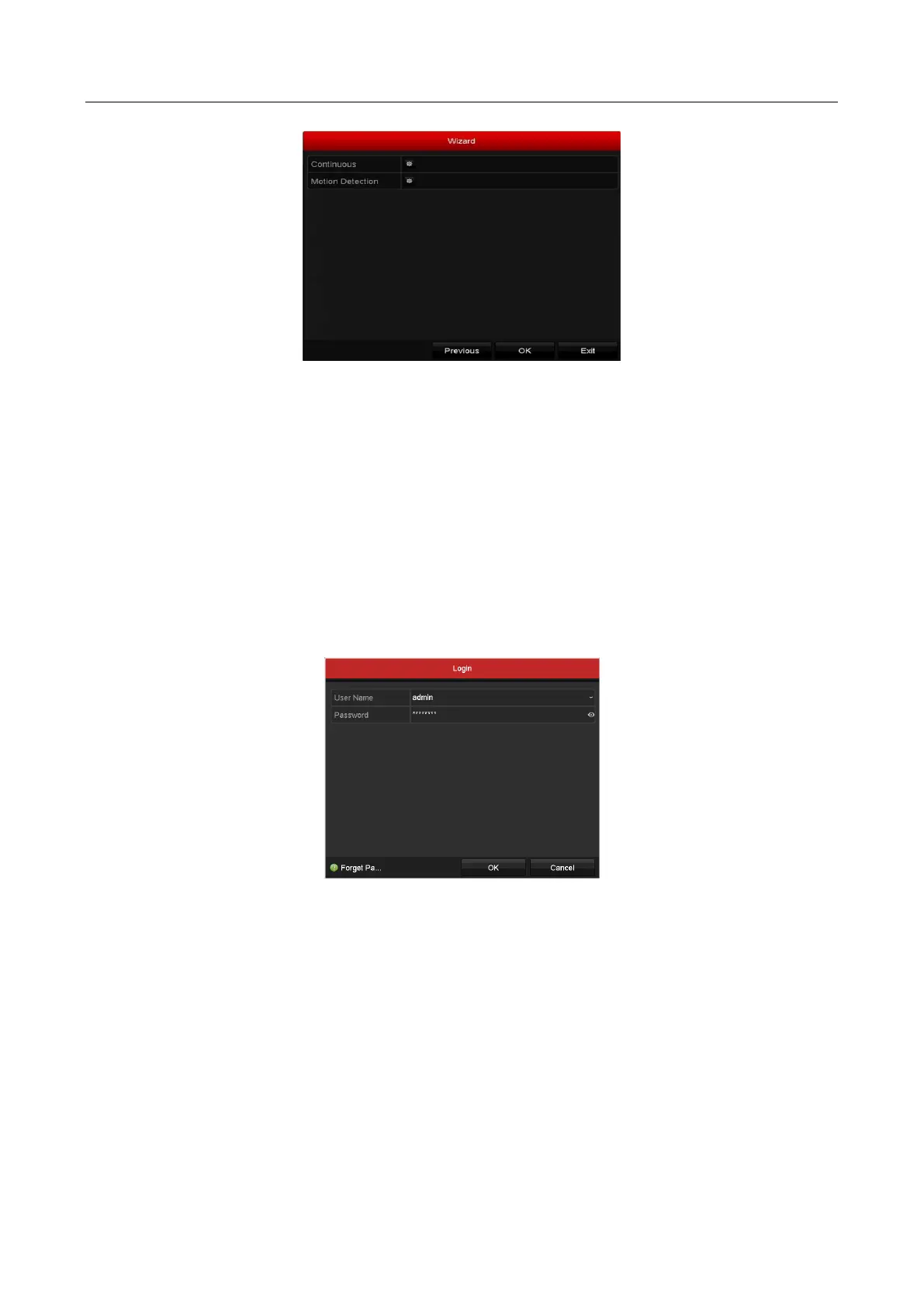

Figure 2-27 Record Settings
Step 14 Click OK to complete the wizard settings.
2.5 Login and Logout
2.5.1 User Login
Purpose
You have to log in to the device before operating the menu and other functions
Step 1 Select the User Name in the dropdown list.
Figure 2-28 Login Interface
Step 2 Input the Password.
Step 3 Click OK to log in.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
