Digital Video Recorder User Manual
170
You can adjust the size and position of textbox on the live view screen of POS settings interface by
dragging the frame.
Step 8 Click Apply to activate the settings.
Step 9 (Optional) You can click the Copy button to copy the current settings to other POS (s).

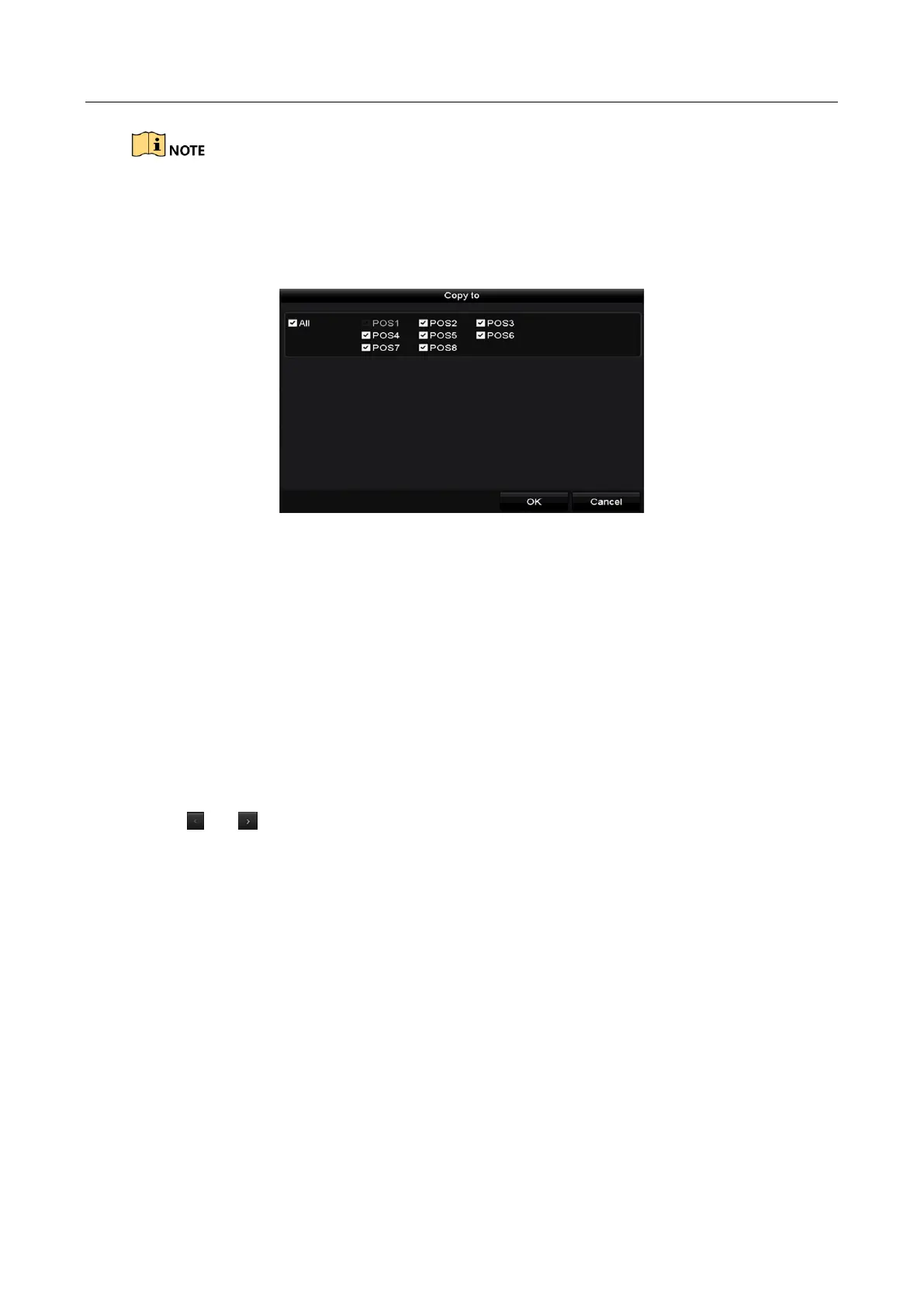

Figure 9-13 Copy POS Settings
9.2 Configuring Overlay Channel
Purpose
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Enter the Overlay Channel interface.
Menu > Configuration > POS > Overlay Channel
Step 2 Click to select an analog or IP camera from the camera list on the right, and then click a POS
item from the POS list you want to overlay on the selected camera.
Click or to go to the previous or next page of cameras.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
