HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
57

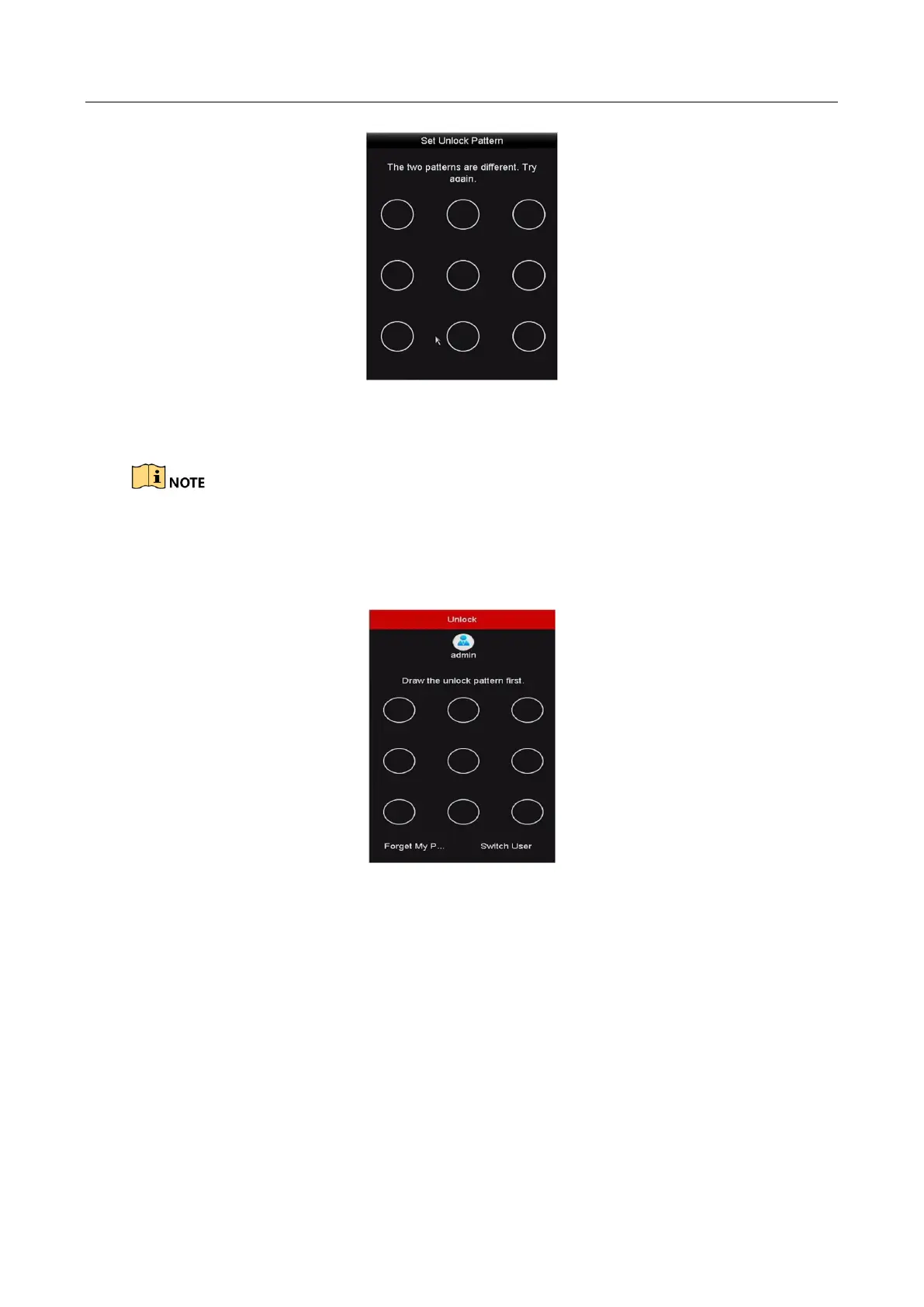

Figure 2-11 Reset the Pattern
2.3.2 Logging in via Unlock Pattern

Only the admin user has the permission to unlock the device.

Please configure the pattern first before unlocking. Please refer to Chapter 2.3.1
Configuring the Unlock Pattern.
Step 1 Right click the mouse on the screen and select the menu to enter the interface.
Figure 2-12 Draw the Unlock Pattern
Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
