Digital Video Recorder User Manual
240
Chapter 15 Camera Settings
15.1 Configuring OSD Settings
Purpose
You can configure the OSD (On-Screen Display) settings for the camera, including date/time,
camera name, etc.
Step 1 Enter the OSD Configuration interface.
Menu > Camera > OSD
Step 2 Select the camera to configure OSD settings.
Step 3 Edit the Camera Name in the text field.
Step 4 Configure the Display Name, Display Date and Display Week by checking the checkbox.
Step 5 Select the Date Format, Time Format, Display Mode and the OSD Font.

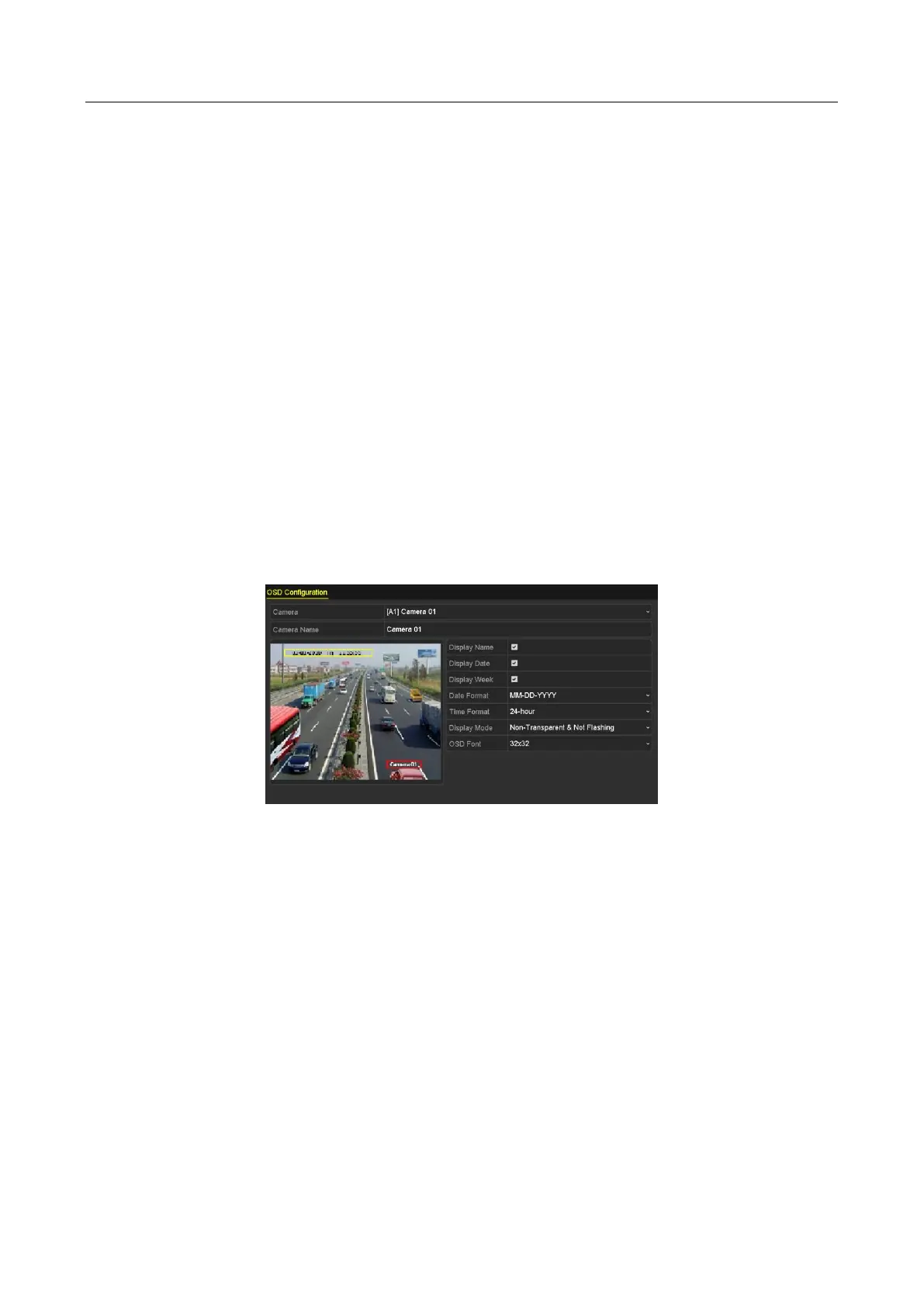

Figure 15-1 OSD Configuration Interface
Step 6 You can use the mouse to drag the text frame on the preview window to adjust the OSD
position.
Step 7 Copy Camera Settings
1) If you want to copy the OSD settings of the current camera to other cameras, click the
Copy button to enter the Copy Camera interface, as shown in Figure 15-2.
