HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual

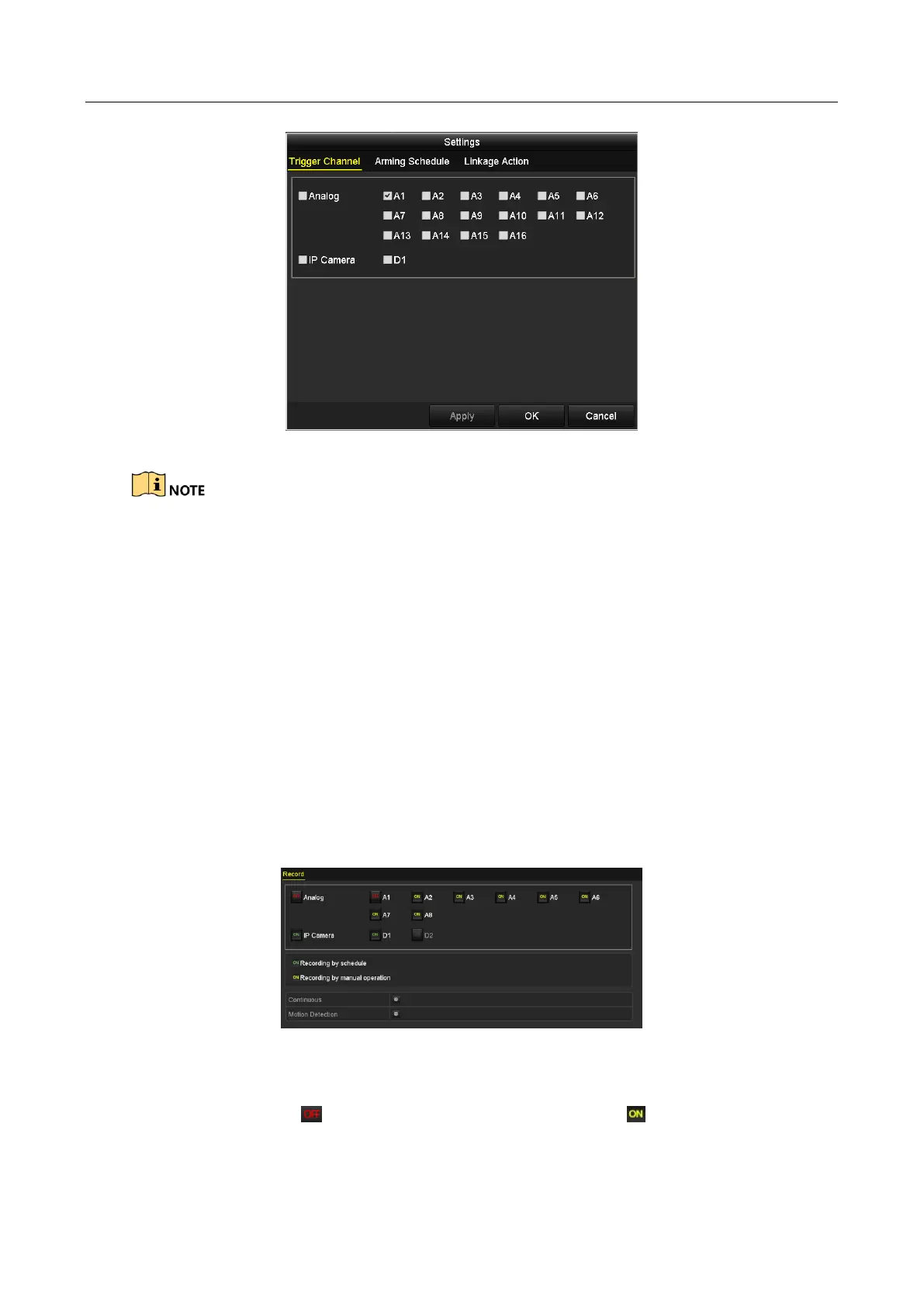

114
Figure 5-22 Set Trigger Camera of VCA Alarm
The PTZ Linking function is only available for the VCA settings of IP cameras.
Step 5 Enter Record Schedule Settings interface (Menu> Record> Schedule>Record Schedule), and
then set Event as the record type. For details, see step 2 in Chapter 5.2 Configuring
Recording and Capture Schedule.
5.6 Configuring Manual Recording and Continous Capture
Purpose
Follow the steps to set parameters for the manual recording and continuous capture. Using manual
recording and continuous capture, you need to manually cancel the record and capture. The
manual recording and manual continuous capture is prior to the scheduled recording and capture.
Step 1 Enter the Manual Record interface.
Menu > Manual
Figure 5-23 Manual Record
Step 2 Enable manual record.
Click the status icon before camera number to change it to .

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
