HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
204

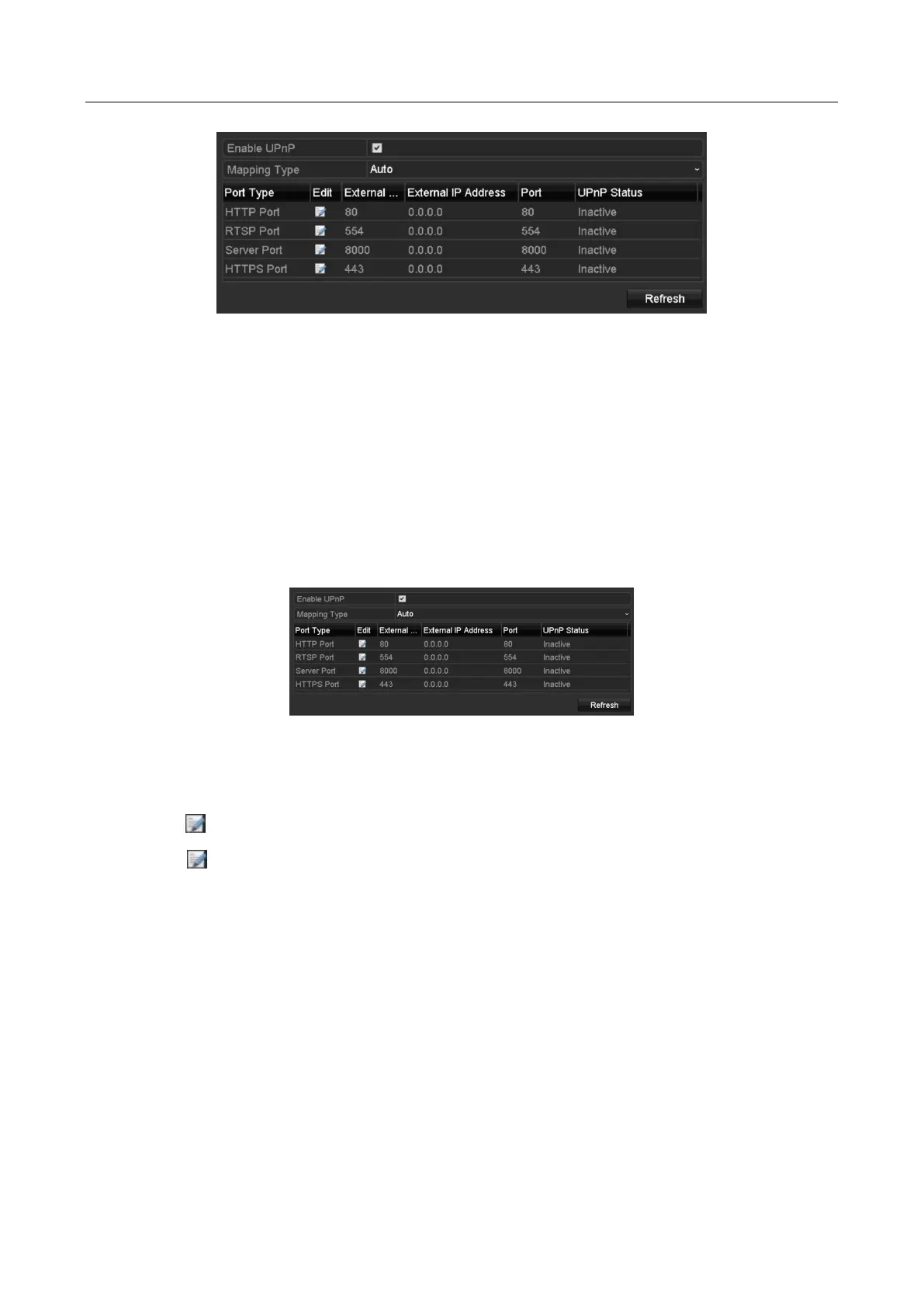

Figure 12-14 UPnP™ Settings Interface
Step 3 Check Enable UPnP checkbox to enable UPnP™.
Step 4 Select the Mapping Type as Manual or Auto in the drop-down list.
OPTION 1: Auto
If you select Auto, the Port Mapping items are read-only, and the external ports are set by the
router automatically.
1) Click Apply button to save the settings.
2) You can click Refresh button to get the latest status of the port mapping.
Figure 12-15 UPnP™ Settings Finished-Auto
OPTION 2: Manual
If you select Manual as the mapping type, you can edit the external port on your demand by
clicking to activate the External Port Settings dialog box.
1) Click to activate the External Port Settings dialog box. Configure the external port No.
for server port, http port and RTSP port respectively.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
