Digital Video Recorder User Manual
209
Make sure you have configured the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the
Preferred DNS Server in the Network Settings menu. Please refer to Chapter 12.1 Configuring
General Settings for detailed information.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the Email tab to enter the Email Settings interface.

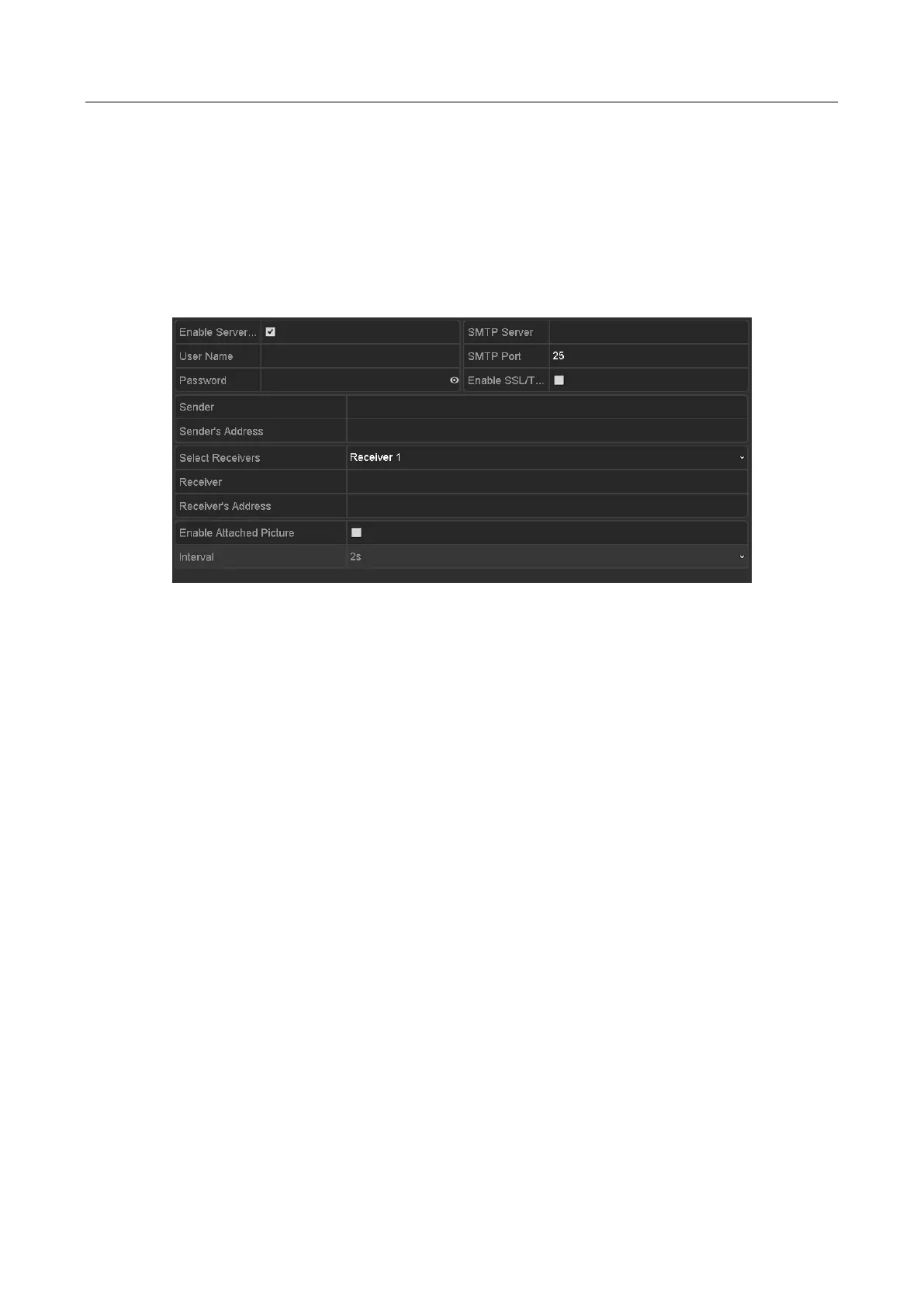

Figure 12-22 Email Settings Interface
Step 3 Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user account of sender’s Email for SMTP server authentication.
Password: The password of sender’s Email for SMTP server authentication.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL (optional): Click the checkbox to enable SSL if required by the SMTP server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.
Receiver: The name of the receiver of the Email.
Receiver’s Address: The Email address of the receiver.
Enable Attached Picture: Check the checkbox if you want to send email with attached
alarm images. The interval is the time between two captures of the alarm images.
