HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
21

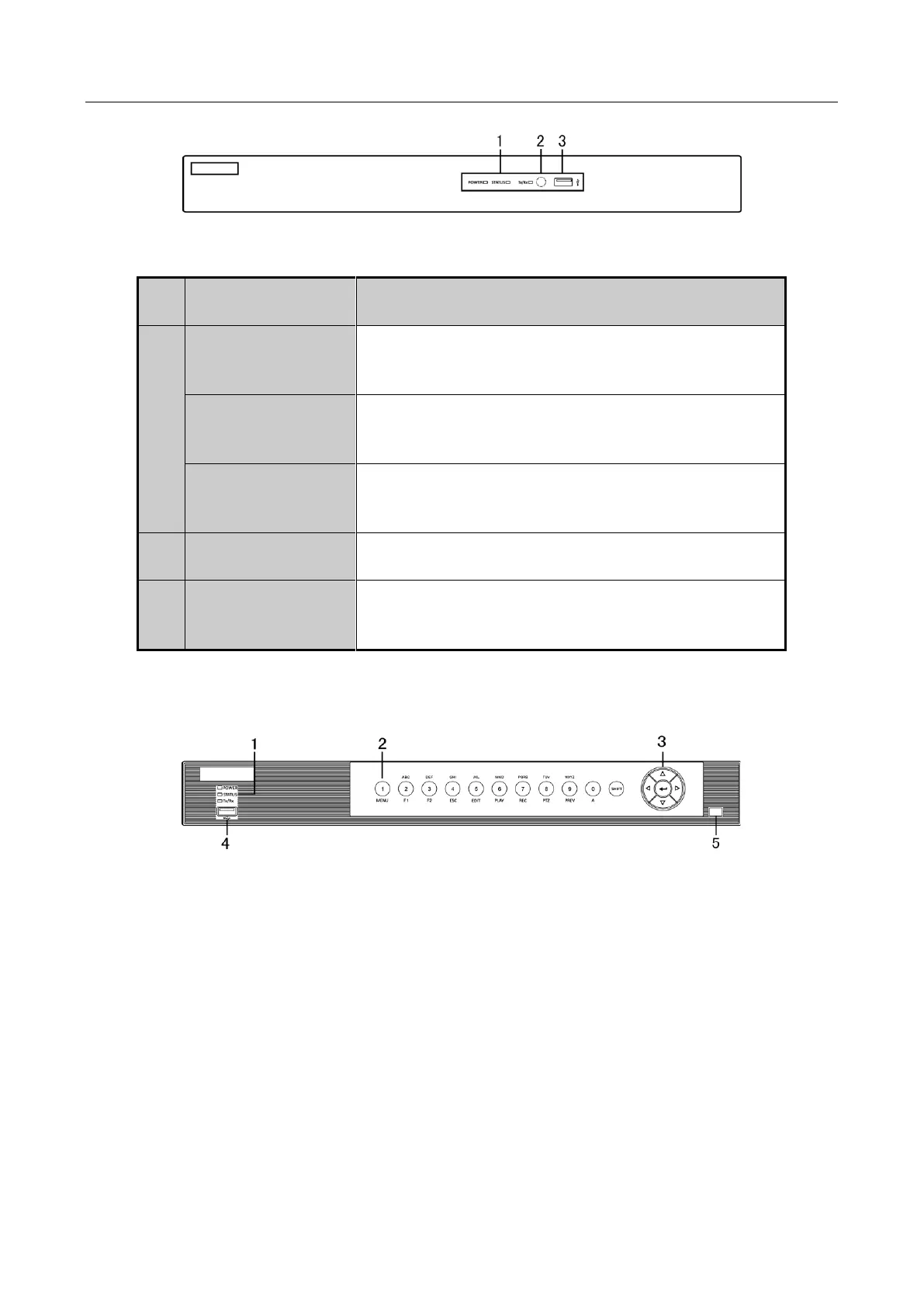

Figure 1-3 Front Panel of DS-7200HQHI-F/N
Table 1-2 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns green when the power switch on the rear panel
is turned on.
STATUS
Flickers red when data is being read from or written to
HDD.
Tx/Rx
Flickers green when network connection is functioning
properly.
2
IR Receiver
Receiver for IR remote
3
USB Interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
Front Panel 4:
Figure 1-4 Front Panel of DS-7200HUHI-F/N and DS-7600HUHI-F/N

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
