HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual

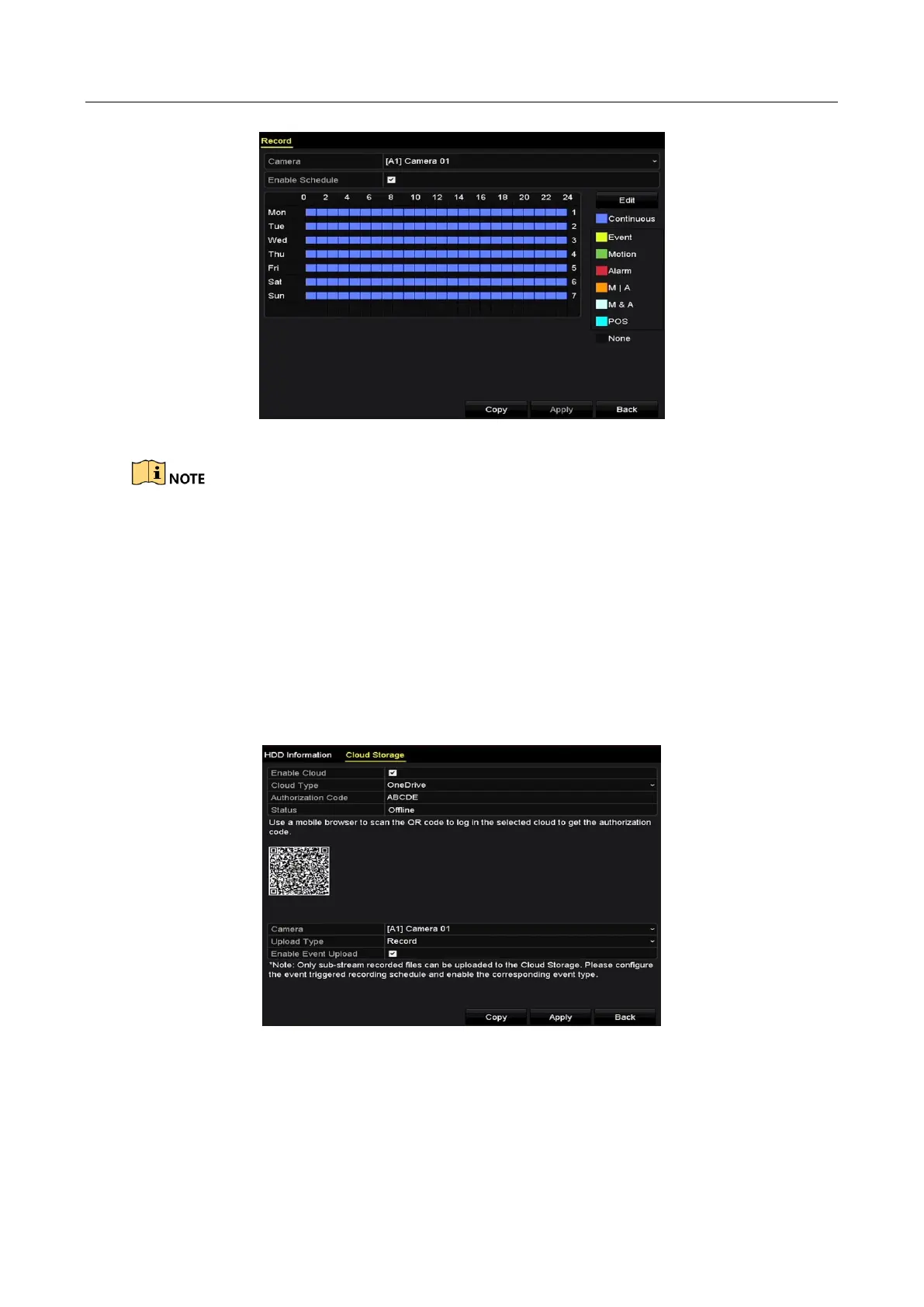

233
Figure 14-19 Record Schedule
The POS recording is supported by DS-7300/8100HQHI-F/N and DS-7300/8100/9000HUHI-F/N
series DVR only.
Step 8 Upload the event triggered recording files to the cloud storage.
1) Back to enter the cloud storage interface, and select the camera you have set in the
recording schedule interface.
2) Select the upload type in the Upload Type text filed.
3) Check the Enable Event Upload checkbox.
4) Click Apply to finish the settings.
Figure 14-20 Upload to Cloud Storage Interface

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
