HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
248

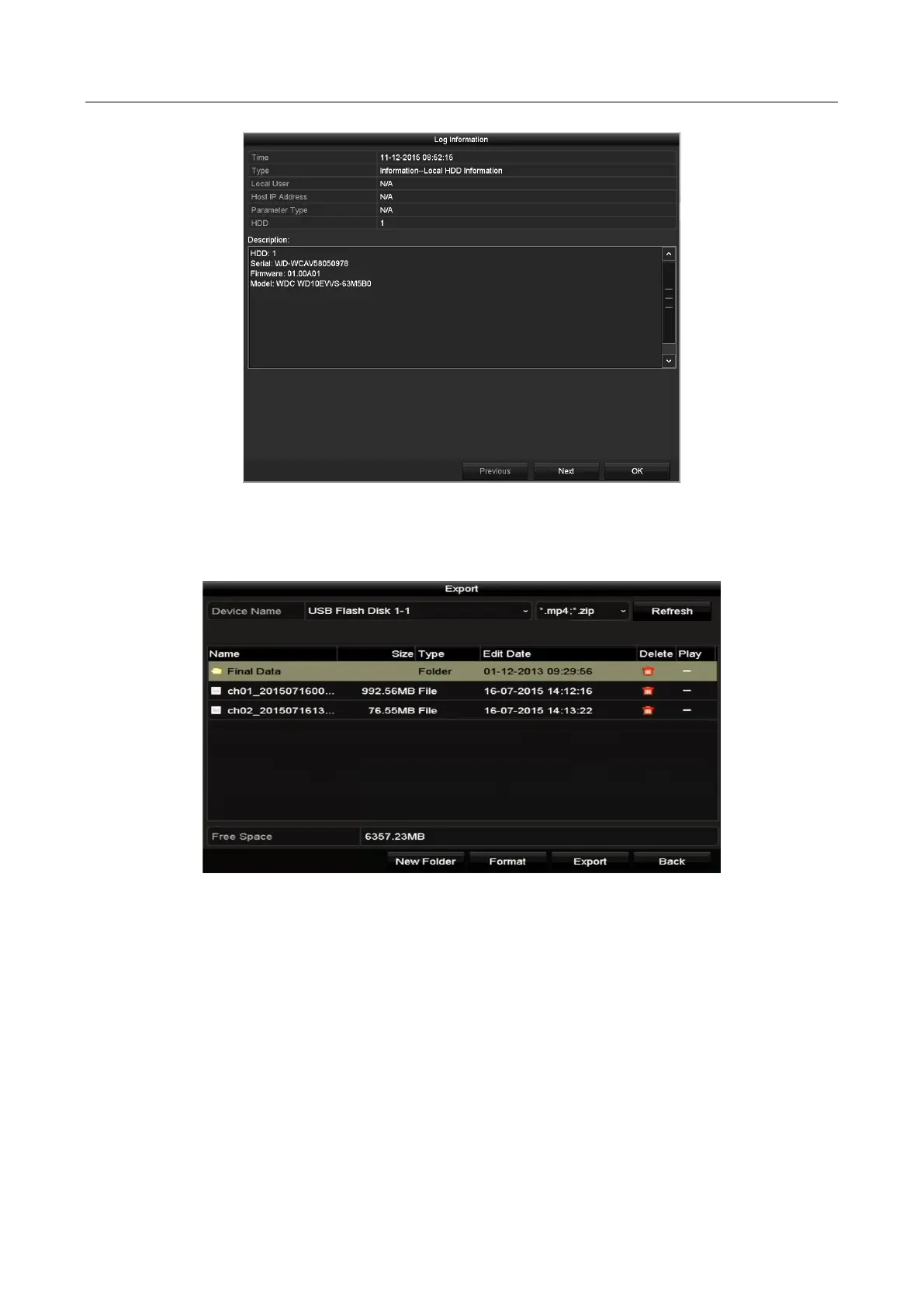

Figure 16-4 Log Information Interface
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-5.
Figure 16-5 Export Log Files
Step 7 Select the backup device from the dropdown list of Device Name.
Step 8 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
