HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
45
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
ALARM
Connector for alarm input/output.

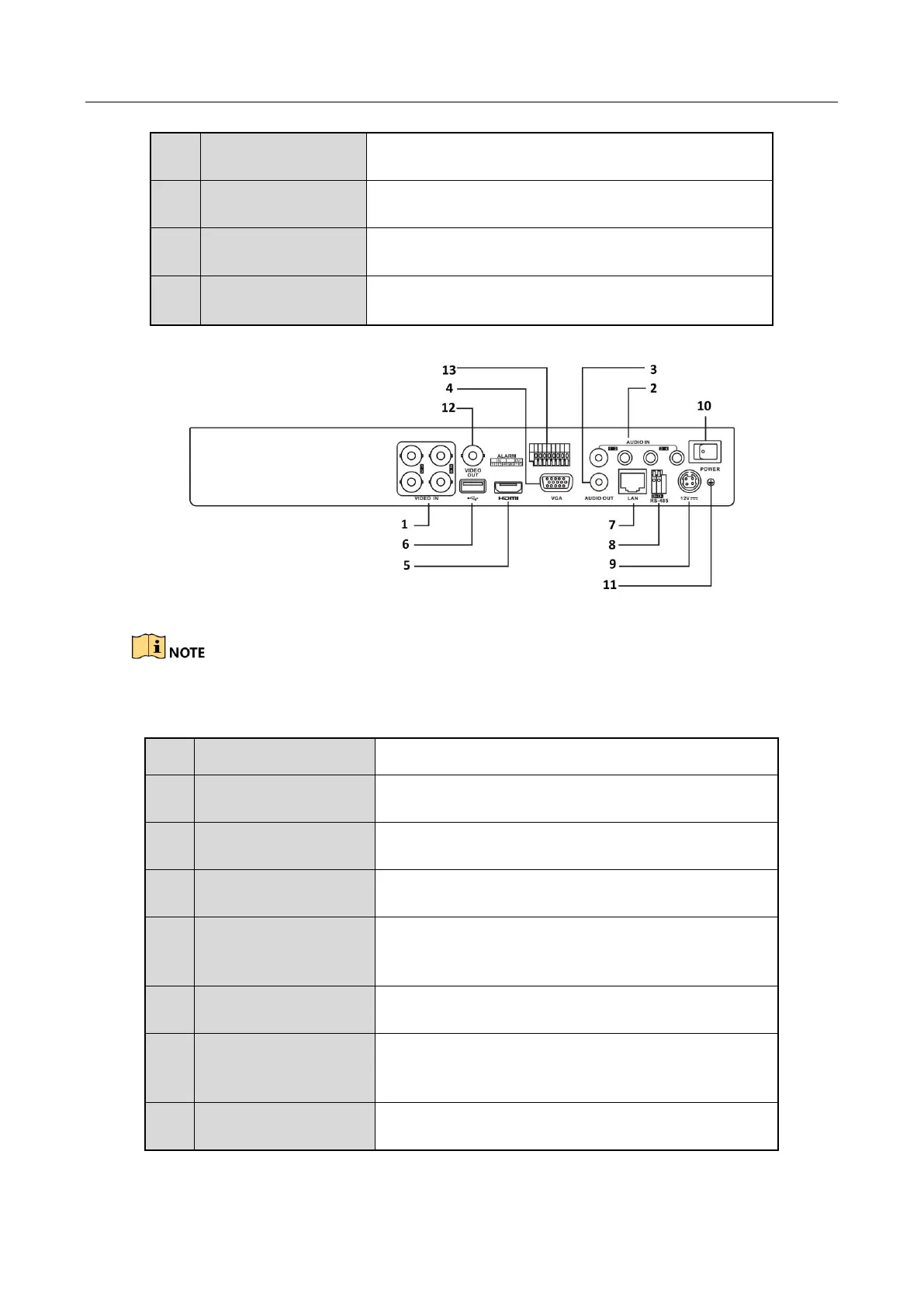

Rear Panel 6:
Figure 1-16 Rear Panel of DS-7200HUHI-F/N and 7600HUHI-F/N
The rear panels of DS-7208HUHI-F1/N and DS-7208HUHI-F2/N provide 8 video input interfaces. The
rear panel of DS-7216HUHI-F2/N provides 16 video input interfaces.
Table 1-13 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for HDTVI and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local
video output and menu.
5
HDMI
HDMI video output connector.
6
USB Port
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
