HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
60
Step 2 Click Apply button.

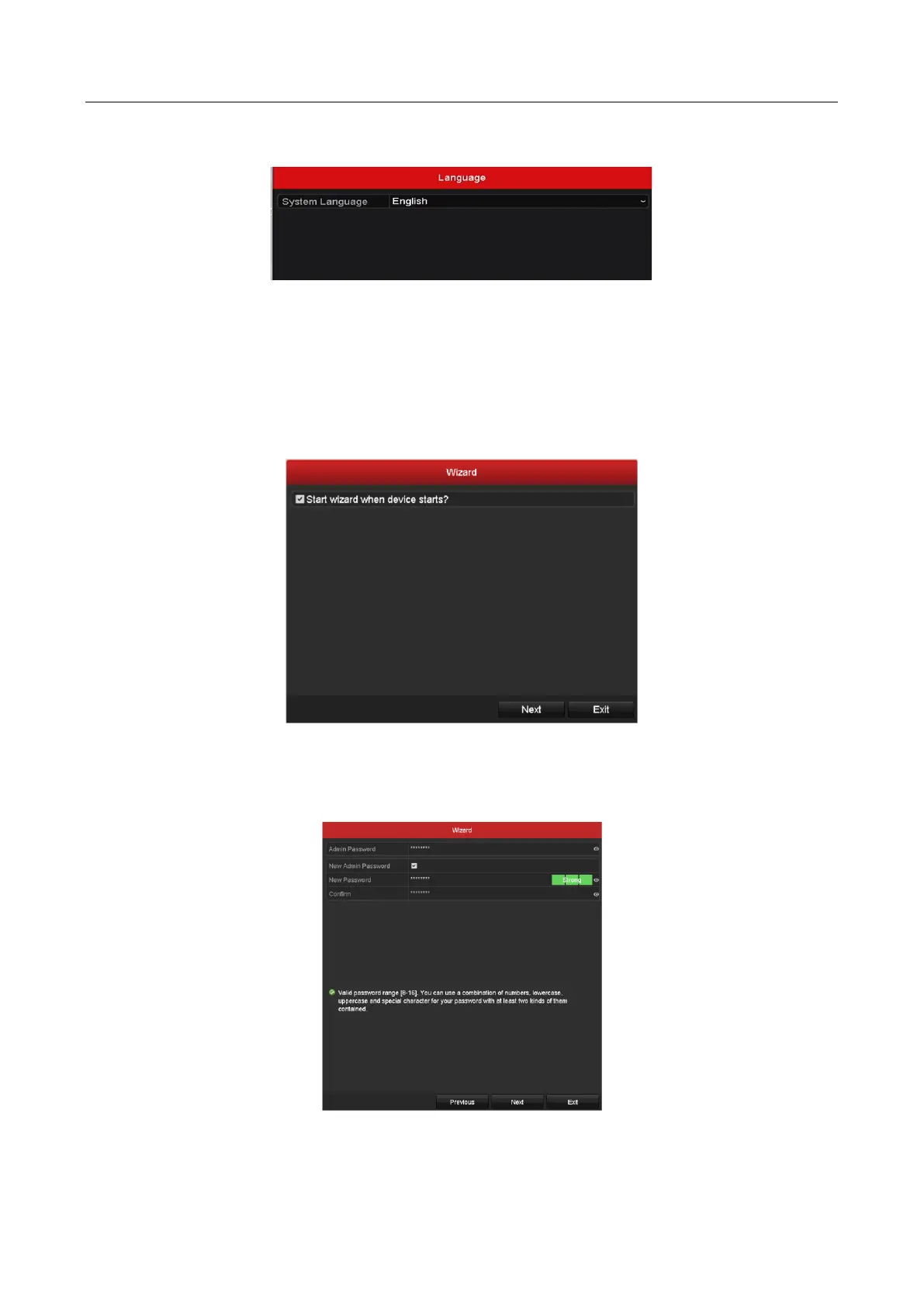

Figure 2-16 Language Configuration
Operating the Setup Wizard:
Step 1 The Start Wizard can walk you through some important settings of the device. If you don’t
want to use the Start Wizard at that moment, click Exit. You can also choose to use the
Start Wizard next time by leaving the “Start wizard when device starts?” checkbox
checked.
Figure 2-17 Start Wizard Interface
Step 2 Click Next button to enter the Change the Password interface. Input the Admin Password
or change the password.
Figure 2-18 Change the Password

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
