HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
63

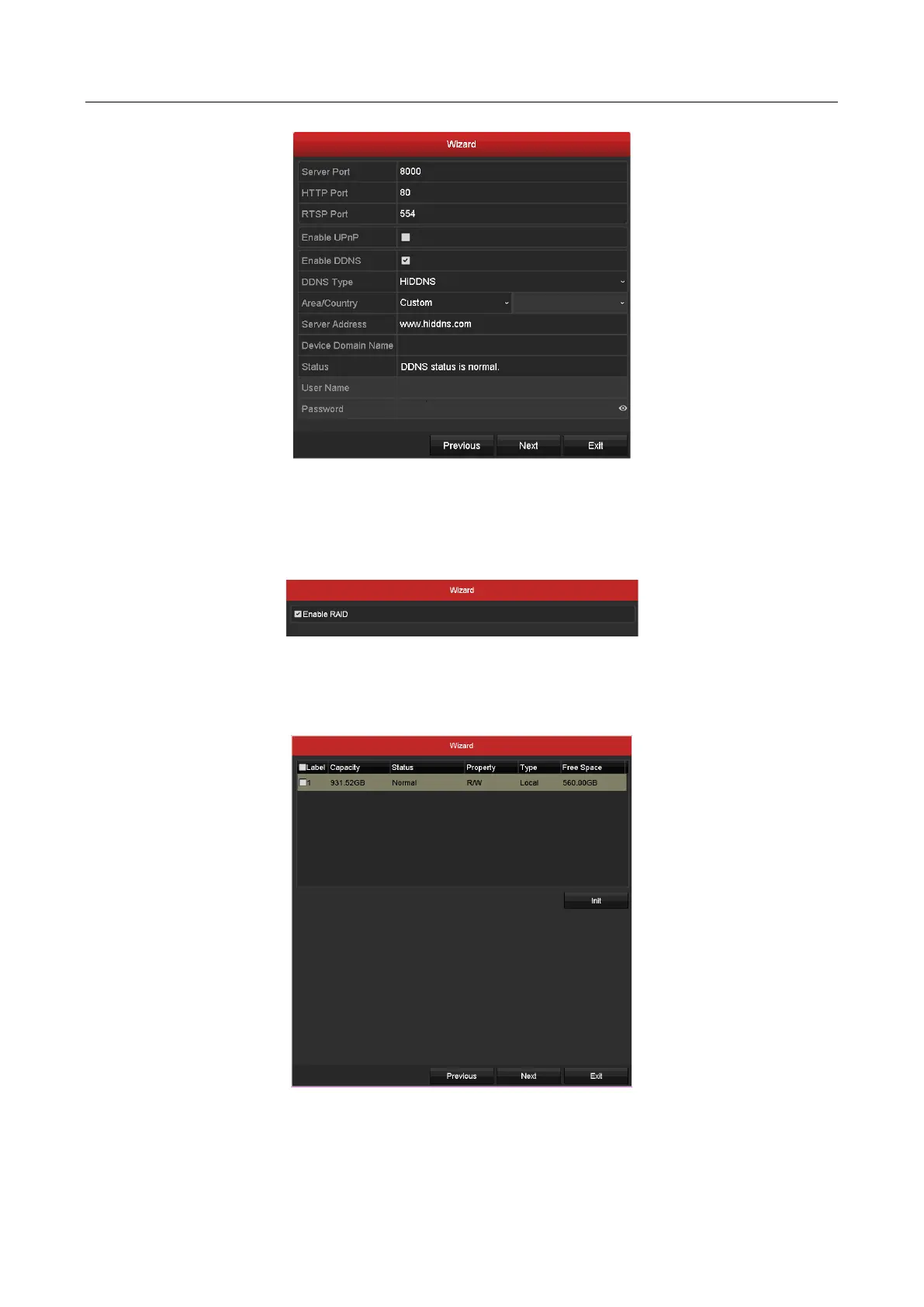

Figure 2-23 Set Advanced Network Parameters
Step 7 For DS-7300/8100/9000HUHI-F/N series, click Next button and you can enter the RAID
configuration interface. Check the checkbox of Enable RAID to take this function into
effect.
Figure 2-24 RAID Configuration
Step 8 Click Next button after configuring the advanced network parameters, which will take you
to the HDD Management interface as shown in Figure 2-22.
Figure 2-25 HDD Management

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
