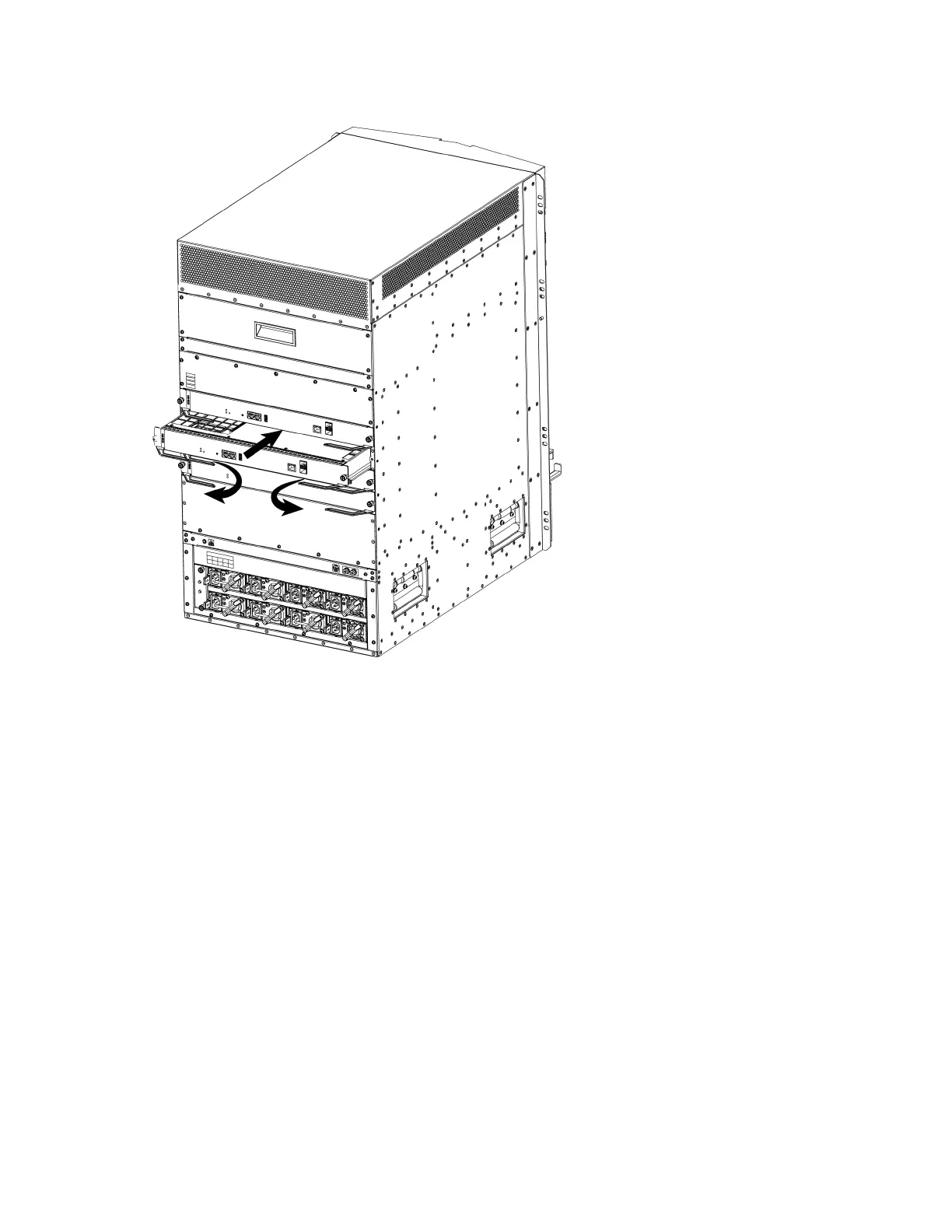

levers to outside, and slide the expansion module straight into the slot along the guide rail.
6. When the lever head is inserted into the expansion slot, you should rotate the levers to the
front of the module and slide the SCM into the slot until you feel resistant.
7. Tighten the screws on the SCM with a cross screwdriver.
8. To install more SCMs, repeat Step 3 to 7.
Installing an SSM/IOM/SIOM/QSM/Bypass
The SSM, IOM, SIOM, QSM or Bypass module of SG-6000-X10800 can be installed in any slot
of slot1 to slot12. You can choose the slot according to needs.
The following takes IOM as an example to introduce how to install an SSM, IOM, QSM or Bypass
module. To install an IOM, take the following steps:
95
Chapter 3 Installation
